28226 (720 E) - Lawn-Boy 20" Snow Thrower (SN: 220000001 - 220999999) (2002) SIDE PLATE AND SCRAPER ASSEMBLY Parts Diagram

20" Snow Thrower

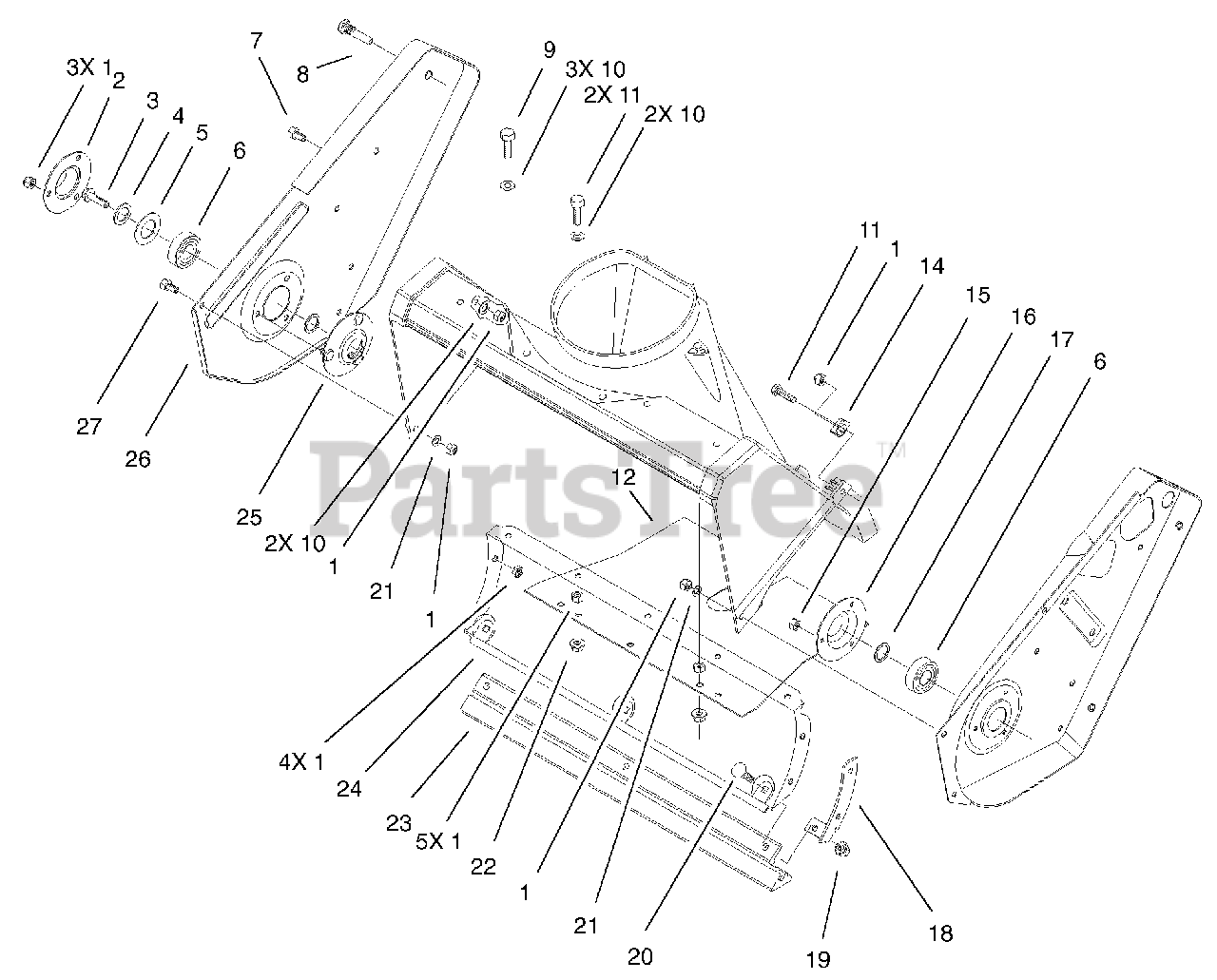

SIDE PLATE AND SCRAPER ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

2

Lawn-Boy 52-7290-03

RETAINER-BEARING

$20.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 3234-25

SCREW-HHF

$8.49

$

Usually ships in 3-6 days

0

4

Lawn-Boy 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

5

Lawn-Boy 52-7270

WASHER-RUBBER

$3.99

$

In Stock, only 4 left!

0

6

Lawn-Boy 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 20+

0

7

Lawn-Boy 322-43

SCREW-HH

$1.49

$

In Stock, only 3 left!

0

8

Lawn-Boy 38-8211

PIN-ROTOR

$6.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Lawn-Boy 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

11

Lawn-Boy 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 55-9512

COVER-BOTTOM

$19.99

$

In Stock, only 1 left!

0

14

Lawn-Boy 55-9430

BRACKET-HOUSING

$6.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 3296-2

NUT-LOCK

$2.49

$

In Stock, Qty 20+

0

16

Lawn-Boy 38-8620

FLANGE-BEARING

$

$

Not available

17

Lawn-Boy 52-7280

WASHER-THRUST

$5.49

$

In Stock, Qty 20+

0

18

Lawn-Boy 56-2610

BRACKET-HOUSING, LOWER

$18.99

$

In Stock, Qty 5

0

19

Lawn-Boy 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

20

Lawn-Boy 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

21

Lawn-Boy 3256-67

WASHER-FLAT

$0.99

$

In Stock, Qty 9

0

22

Lawn-Boy 32128-10

NUT-LOCK, HHF

$0.99

$

In Stock, Qty 20+

0

23

Lawn-Boy 55-8760

SCRAPER

$28.99

$

In Stock, Qty 20+

0

24

Lawn-Boy 55-9220-03

HOUSING-LOWER
(Superseded to 119-1551)

$74.99

$

In Stock, Qty 20+

0

25

Lawn-Boy 52-9110

FLANGE-BEARING

$20.99

$

In Stock, Qty 5

0

26

Lawn-Boy 55-8840-03

PLATE-SIDE, RH

$

$

Not available

27

Lawn-Boy 32105-15

SCREW

$2.99

$

In Stock, Qty 13

0
