28230 (522 R) - Lawn-Boy 22" Snow Thrower (SN: 009900001 - 009999999) (1999) AUGER ASSEMBLY Parts Diagram

22" Snow Thrower

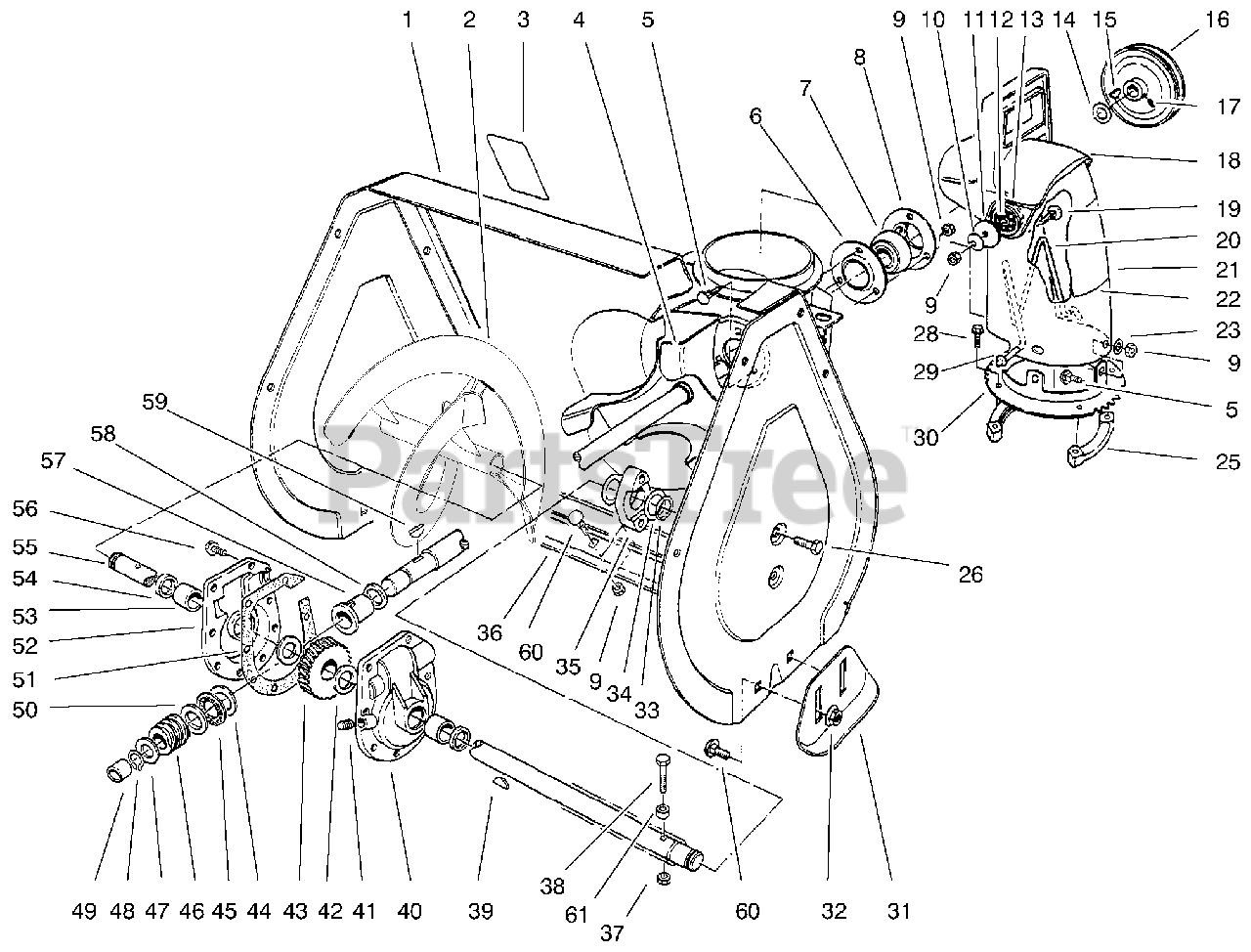

AUGER ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 43-7322-02

Housing-Auger (Incl. Ref. #3)

$

$

Not available

2

Lawn-Boy 98-2270-03

Auger-R.H.

$

$

Not available

Lawn-Boy 98-2271-03

Auger-L.H.

Note: Not Illustrated

$187.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 53-7670

Decal-Auger Warning
(Superseded to 94-2568)

$8.49

$

In Stock, only 3 left!

0

4

Lawn-Boy 37-6990-03

Shaft & Impeller

$463.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 3230-18

Bolt-Carriage

$5.49

$

In Stock, Qty 13

0

6

Lawn-Boy 26-6120

Flange-Bearing Front

$4.49

$

In Stock, only 1 left!

0

7

Lawn-Boy 63-3450

Bearing-Ball

$22.99

$

In Stock, only 1 left!

0

8

Lawn-Boy 26-6110

Flange-Bearing Rear

$6.49

$

In Stock, only 1 left!

0

9

Lawn-Boy 3296-29

Nut-Lock

$2.49

$

In Stock, Qty 20+

0

10

Lawn-Boy 3290-456

Washer-Lock

$2.99

$

In Stock, Qty 9

0

11

Lawn-Boy 3256-68

Washer-Flat

$2.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 55-8950

Plate-Friction

$8.49

$

In Stock, only 2 left!

0

13

Lawn-Boy 20-4320

Washer-Rubber

$0.99

$

In Stock, Qty 10

0

14

Lawn-Boy 3-0737

Washer

$8.49

$

In Stock, only 3 left!

0

15

Lawn-Boy 3257-23

Key

$7.49

$

In Stock, only 2 left!

0

16

Lawn-Boy 37-6890

Pulley

$216.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 3242-4

Screw-Set

$2.99

$

In Stock, only 2 left!

0

18

Lawn-Boy 56-2680

Deflector

$22.99

$

In Stock, only 1 left!

0

19

Lawn-Boy 3230-22

Bolt-Carriage

$2.49

$

In Stock, Qty 20+

0

20

Lawn-Boy 56-2670

Chute-Wire

$18.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 94-2793

Chute-Discharge (Incl. Ref.# 22)

$

$

Not available

22

Lawn-Boy 94-8079

Decal-Discharge

$10.99

$

Usually ships in 3-6 days

0

23

Lawn-Boy 3256-23

Washer

$2.49

$

In Stock, Qty 20+

0

25

Lawn-Boy 37-6490

Retainer-Chute Ring

$16.99

$

In Stock, Qty 5

0

26

Lawn-Boy 32144-70

Screw-Self Tapping

$2.99

$

In Stock, Qty 20+

0

28

Lawn-Boy 27-0220

Screw-Self Tapping

$7.99

$

In Stock, only 4 left!

0

29

Lawn-Boy 3290-326

Pushnut

$4.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 37-8941-03

Ring-Chute

$65.99

$

Usually ships in 3-6 days

0

31

Lawn-Boy 40-8160-02

Skid

$27.99

$

In Stock, Qty 10

0

32

Lawn-Boy 32128-20

Nut-Flange

$1.49

$

In Stock, Qty 20+

0

33

Lawn-Boy 32151-36

Ring-Retaining

$4.99

$

In Stock, Qty 20+

0

34

Lawn-Boy 5-1550

Washer-Thrust

$7.49

$

Usually ships in 3-6 days

0

35

Lawn-Boy 37-6550

Bearing-Auger
(Superseded to 136-8685)

$73.99

$

Usually ships in 3-6 days

0

36

Lawn-Boy 94-8892-02

Blade-Scraper

$89.99

$

In Stock, only 1 left!

0

37

Lawn-Boy 3296-42

Nut-Lock

$0.99

$

In Stock, Qty 20+

0

38

Lawn-Boy 321-11

Screw

$0.99

$

In Stock, Qty 20+

0

39

Lawn-Boy 3257-33

Key-Woodruff

$2.49

$

In Stock, only 3 left!

0

40

Lawn-Boy 14-2459

Gear Case L.H. (Incl. Ref. #53 & 54)

$151.99

$

Usually ships in 3-6 days

0

41

Lawn-Boy 281-1

Pipe-Plug

$5.49

$

In Stock, only 1 left!

0

42

Lawn-Boy 252-71

Bearing-Thrust

$19.99

$

In Stock, only 2 left!

0

43

Lawn-Boy 5-7180

Gear

$158.99

$

In Stock, only 2 left!

0

44

Lawn-Boy 257-3

Washer-Thrust

$15.99

$

In Stock, Qty 5

0

45

Lawn-Boy 252-76

Bearing-Needle, Thrust

$21.99

$

In Stock, only 1 left!

0

46

Lawn-Boy 5-7170

Gear-Worm

$113.99

$

In Stock, only 3 left!

0

47

Lawn-Boy 3-8664

Washer

$6.49

$

In Stock, only 2 left!

0

48

Lawn-Boy 32120-72

Ring-Retaining

$2.49

$

In Stock, Qty 20+

0

49

Lawn-Boy 256-32

Bushing

$10.99

$

In Stock, Qty 9

0

50

Lawn-Boy 252-80

Washer-Thrust

$8.99

$

In Stock, only 1 left!

0

51

Lawn-Boy 51-0460

Gasket

$7.99

$

In Stock, Qty 9

0

52

Lawn-Boy 14-2449

Gear Case R.H. (Incl. Ref. #53 & 54)

$151.99

$

Usually ships in 3-6 days

0

53

Lawn-Boy 256-237

Bushing

$15.99

$

In Stock, only 2 left!

0

54

Lawn-Boy 7-0045

Seal-Oil

$15.99

$

In Stock, Qty 20+

0

55

Lawn-Boy 37-6802

Shaft-Auger

$

$

Not available

56

Lawn-Boy 32144-41

Screw-Self Tapping

$5.49

$

In Stock, Qty 20+

0

57

Lawn-Boy 37-6560

Bushing-Input

$42.99

$

In Stock, only 3 left!

0

58

Lawn-Boy 237-87

Seal

$6.99

$

In Stock, only 2 left!

0

59

Lawn-Boy 3257-23

Key-Woodruff

$7.49

$

In Stock, only 2 left!

0

60

Lawn-Boy 3230-1

Bolt-Carriage

$1.99

$

In Stock, Qty 20+

0

61

Lawn-Boy 66-8010

Spacer-Auger

$4.99

$

In Stock, Qty 13

0

Lawn-Boy 37-6962

Gear Case Asm.

Note: Not Illustrated

$1273.99

$

Usually ships in 3-6 days

0

Lawn-Boy 12-8789

Bearing Asm. (Incl. Ref. #6-8)

Note: Not Illustrated

$29.99

$

In Stock, only 3 left!

0
