28231 (522 R) - Lawn-Boy 22" Snow Thrower (SN: 007900001 - 007999999) (1997) CARBURETOR NO. 632107A Parts Diagram

22" Snow Thrower

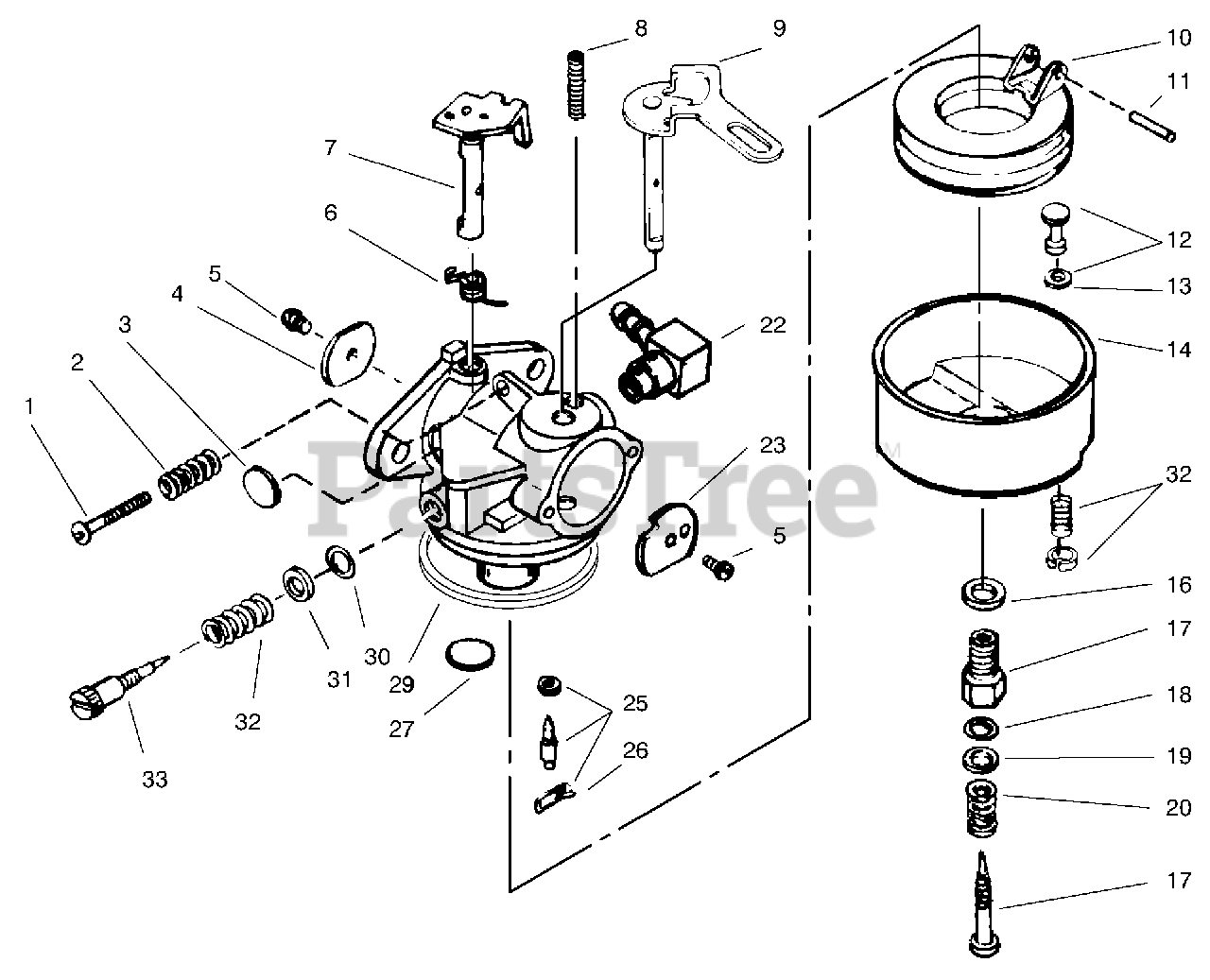

CARBURETOR NO. 632107A Parts Diagram

  • Title
1

Lawn-Boy 650417

Screw Idle

$

$

Currently unavailable

2

$

$

Currently unavailable

3

Lawn-Boy 630748

Plug-Welch

Note: Included in Repair Kit 31840

$

$

Currently unavailable

4

Lawn-Boy 631036

Shutter Throttle

$

$

Currently unavailable

5

$

$

Currently unavailable

6

Lawn-Boy 631767

Spring-Return

$

$

Currently unavailable

7

Lawn-Boy 631615

Shaft & Lever

$

$

Currently unavailable

8

Lawn-Boy 630735

Spring-Choke

$

$

Currently unavailable

9

Lawn-Boy 632108

Shaft & Lever Asm.

$

$

Currently unavailable

10

$

$

Currently unavailable

11

Lawn-Boy 631024

Float Shaft

Note: Included in Repair Kit 31840

$

$

Currently unavailable

12

Lawn-Boy 27136A

Drain Assembly-Bowl (Incl. Ref. #13)

$

$

Currently unavailable

13

Lawn-Boy 27554

Gasket-Bow Drain

$

$

Currently unavailable

14

Lawn-Boy 631951

Bowl-Assembly (Incl. Ref. #12 & 13)

$

$

Currently unavailable

16

Lawn-Boy 27110

Gasket

Note: Included in Repair Kit 31840

$

$

Currently unavailable

17

Lawn-Boy 31839

Screw Adjustment Assembly (Incl. Ref. #16-20)

Note: Included in Repair Kit 31840

$

$

Currently unavailable

18

Lawn-Boy 630740

"O"Ring

Note: Included in Repair Kit 31840

$

$

Currently unavailable

19

$

$

Currently unavailable

20

$

$

Currently unavailable

22

Lawn-Boy 631807

Fitting-Fuel

$

$

Currently unavailable

23

Lawn-Boy 631815

Choke Shutter

$

$

Currently unavailable

25

Lawn-Boy 631021

Inlet Needle-Seat & Clip (Incl. Ref. #26)

Note: Included in Repair Kit 31840

$

$

Currently unavailable

26

$

$

Currently unavailable

27

Lawn-Boy 631027

Plug

Note: Included in Repair Kit 31840

$

$

Currently unavailable

29

Lawn-Boy 631028

Gasket

Note: Included in Repair Kit 31840

$

$

Currently unavailable

30

Lawn-Boy 630740

"O"Ring

Note: Included in Repair Kit 31840

$

$

Currently unavailable

31

$

$

Currently unavailable

33

Lawn-Boy 631838

Screw-Idle

Note: Included in Repair Kit 31840

$

$

Currently unavailable

32

$

$

Currently unavailable

Lawn-Boy 31840

Kit-Repair

Note: Not Illustrated

$

$

Currently unavailable

Lawn-Boy 632107A

Carburetor (Incl. Ref. #1-32)

Note: Not Illustrated

$

$

Currently unavailable
