28231 (522 R) - Lawn-Boy 22" Snow Thrower (SN: 007900001 - 007999999) (1997) ENGINE TECUMSEH MODEL HSSK50-67259R Parts Diagram

22" Snow Thrower

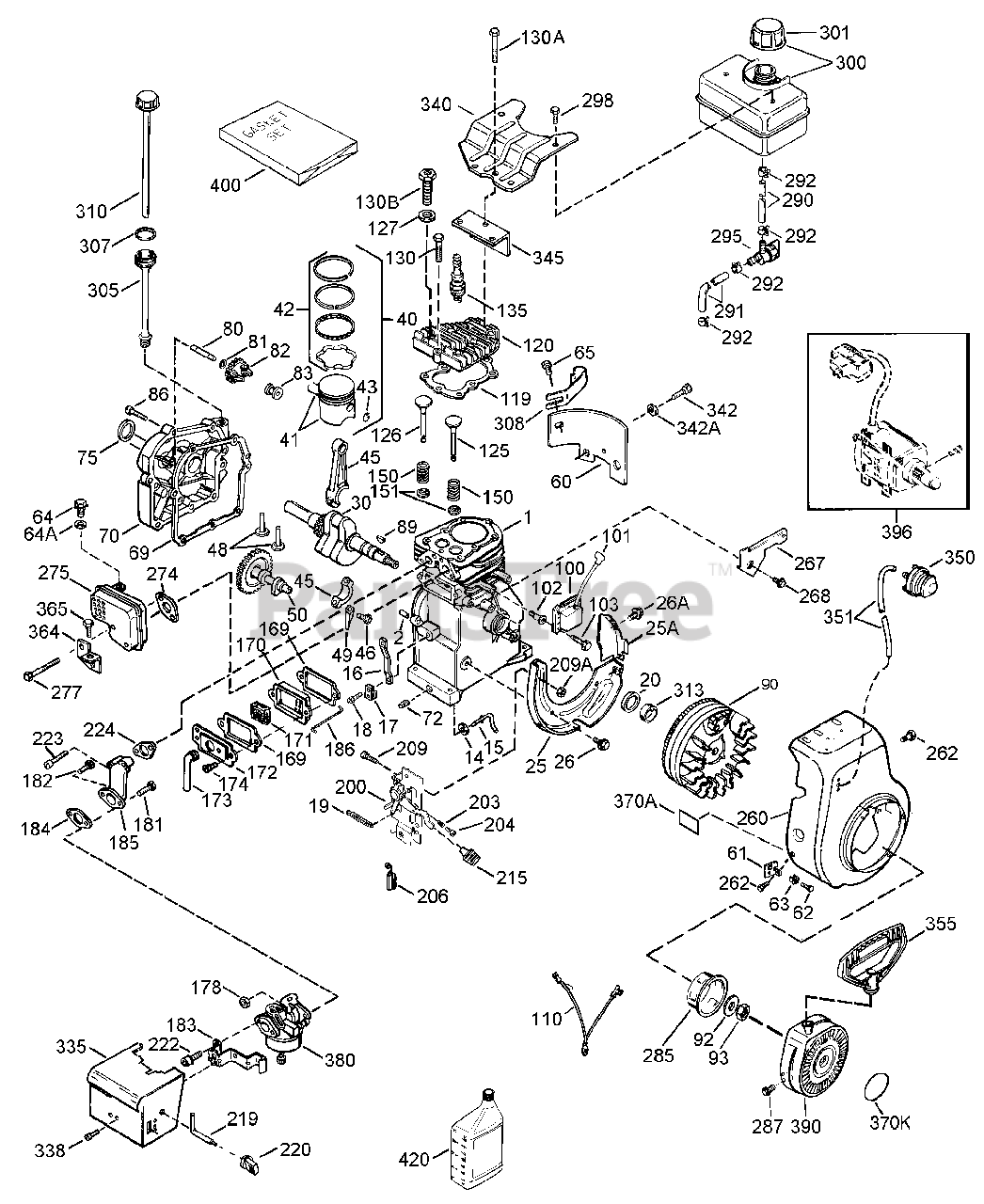

ENGINE TECUMSEH MODEL HSSK50-67259R Parts Diagram

  • Title

1

Lawn-Boy 36469A

Cylinder Assembly (Incl. Ref. #2, 20, 72 & 125)

$

$

Currently unavailable

2

Lawn-Boy 26727

Dowel Pin

$

$

Currently unavailable

14

Lawn-Boy 28277

Washer

$

$

Currently unavailable

15

Lawn-Boy 31334

Rod-Governor
(Superseded to 742339)

$

$

Not available

16

Lawn-Boy 31510

Lever-Governor

$

$

Currently unavailable

17

Lawn-Boy 31335

Clamp, Governor

$

$

Currently unavailable

18

Lawn-Boy 650548

Screw

$

$

Currently unavailable

19

Lawn-Boy 31426

Spring-Extension

$

$

Currently unavailable

20

Lawn-Boy 32600

&al, Oil

$

$

Currently unavailable

25

Lawn-Boy 366552

Baffle-Blower Housing

$

$

Currently unavailable

25A

Lawn-Boy 35883

Extension-Baffle

$

$

Currently unavailable

26

Lawn-Boy 650802

Screw

$

$

Currently unavailable

26A

Lawn-Boy 650926

Screw

$

$

Currently unavailable

30

Lawn-Boy 34740

Crankshaft Assy.

$

$

Currently unavailable

40

Lawn-Boy 36073

Set-Piston, Pin & Ring (Std)

$

$

Currently unavailable

Lawn-Boy 36074

Piston, Pin & Ring Set (.010" OS)

$

$

Currently unavailable

Lawn-Boy 36075

Piston, Pin & Ring Set (.020" OS)

$

$

Currently unavailable

41

Lawn-Boy 36070

Piston & Pin Asm.. Standard (Incl. Ref. #43)

$

$

Currently unavailable

Lawn-Boy 36071

Piston & Pin Assembly .010" oversize (Incl. Ref. #43)

$

$

Currently unavailable

Lawn-Boy 36072

Piston & Pin Assembly .020" oversize (Incl. Ref. #43)

$

$

Currently unavailable

42

Lawn-Boy 36076

Ring Set (Std.)

$

$

Currently unavailable

Lawn-Boy 36077

51105/51105Z GIL RO

$3.23

$

Usually ships in 3-6 days

0

Lawn-Boy 36078

Ring Set (.020" OS)

$

$

Currently unavailable

43

Lawn-Boy 20381

Ring-Retaining

$

$

Currently unavailable

45

Lawn-Boy 32875

Connecting Rod Assembly (Incl. Ref. #46 & 49)

$

$

Currently unavailable

46

Lawn-Boy 32610A

Screw

$

$

Currently unavailable

48

Lawn-Boy 27241

Lifter Valve

$

$

Currently unavailable

49

Lawn-Boy 32654

Dipper-Oil

$

$

Currently unavailable

50

Lawn-Boy 33158

Camshaft

$

$

Currently unavailable

60

Lawn-Boy 29745

Extension-Blower

$

$

Currently unavailable

61

Lawn-Boy 34126

Bracket

$

$

Currently unavailable

62

Lawn-Boy 650760

Screw

$

$

Currently unavailable

63

Lawn-Boy 28545

Grommet

$

$

Currently unavailable

64

Lawn-Boy 30063

Screw

$

$

Currently unavailable

64A

Lawn-Boy 8345

Washer

$

$

Currently unavailable

65

Lawn-Boy 650128

Screw

$

$

Currently unavailable

69

Lawn-Boy 27677A

Gasket-Cylinder Cover

Note: Indicated Parts included in Gasket Set Ref.#400

$

$

Currently unavailable

70

Lawn-Boy 34674C

Cover-Cylinder (Incl. Ref. #75 & 80)

$

$

Currently unavailable

72

Lawn-Boy 27642

Plug-Pipe

$

$

Currently unavailable

75

Lawn-Boy 27897

Oil Seal

$

$

Currently unavailable

80

Lawn-Boy 30574A

Governor Shaft

$

$

Currently unavailable

81

Lawn-Boy 30590A

Washer

$

$

Currently unavailable

82

Lawn-Boy 30591

Gear-Governor (Incl. Ref. #81)

$

$

Currently unavailable

83

Lawn-Boy 30588A

Spool-Govemor

$

$

Currently unavailable

86

Lawn-Boy 650488

Screw

$

$

Currently unavailable

89

Lawn-Boy 610961

Key Flywheel

$

$

Currently unavailable

90

Lawn-Boy 611199

Flywheel-w/Ring Gear

$

$

Currently unavailable

92

Lawn-Boy 650815

Washer

$

$

Currently unavailable

93

Lawn-Boy 650816

Flywheel Nut

$

$

Currently unavailable

100

Lawn-Boy 34443A

Solid State

$

$

Currently unavailable

101

Lawn-Boy 610118

Cover Spark Plug

$

$

Currently unavailable

102

Lawn-Boy 650872

Stud

$

$

Currently unavailable

103

Lawn-Boy 651007

Screw

$

$

Currently unavailable

110

Lawn-Boy 35557

Wire-Ground

$

$

Currently unavailable

119

Lawn-Boy 36443

Gasket-Cylinder Head

Note: Indicated Parts included in Gasket Set Ref.#400

$

$

Currently unavailable

120

Lawn-Boy 36441

Head-Cylinder (Incl. Ref. #131)

$

$

Currently unavailable

125

Lawn-Boy 36471

Valve-Exhaust Standard (Incl. Ref. #151)

$

$

Not available

Lawn-Boy 36472

Valve-Exhaust 1/32" oversize (Incl. Ref. #151)
(Superseded to 742719)

$

$

Not available

126

Lawn-Boy 32644A

Valve-Intake Standard (Incl. Ref. #151)

$

$

Currently unavailable

Lawn-Boy 32645A

Valve-Intake 1/32" oversize (Incl. Ref. #151)

$

$

Currently unavailable

127

Lawn-Boy 650691

Washer

$

$

Currently unavailable

130

Lawn-Boy 6021A

Screw

$

$

Currently unavailable

130A

Lawn-Boy 650694A

Screw

$

$

Currently unavailable

130B

Lawn-Boy 650818

Screw

$

$

Currently unavailable

135

Lawn-Boy 35395

Spark Plug (RJ19LM)

$

$

Currently unavailable

150

Lawn-Boy 31672

Spring Valve

$

$

Currently unavailable

151

Lawn-Boy 31673

Cap-Valve Spring
(Superseded to 742357)

$

$

Not available

169

Lawn-Boy 27234A

Gasket-Valve Cover

Note: Indicated Parts included in Gasket Set Ref.#400

$

$

Currently unavailable

170

Lawn-Boy 27666

Body-Valve Cover
(Superseded to 704563)

$168.99

$

Usually ships in 3-6 days

0

171

Lawn-Boy 31410

Element Breather

$

$

Currently unavailable

172

Lawn-Boy 34146

Cover-Breather

$

$

Currently unavailable

173

Lawn-Boy 35350

Breather Tube

$

$

Currently unavailable

174

Lawn-Boy 30200

Screw

$

$

Currently unavailable

178

Lawn-Boy 29752

Nut

$

$

Currently unavailable

181

Lawn-Boy 650870

Screw-Hex Hd.

$

$

Currently unavailable

182

Lawn-Boy 6201

Screw
(Superseded to 111-1250)

$

$

Not available

183

Lawn-Boy 34583

Bracket-Choke

$

$

Currently unavailable

184

Lawn-Boy 26756

Gasket-Carburetor

Note: Indicated Parts included in Gasket Set Ref.#400

$

$

Currently unavailable

185

Lawn-Boy 33691

Pipe-Intake

$

$

Currently unavailable

186

Lawn-Boy 32698

Link-Governor to Throttle

$

$

Currently unavailable

200

Lawn-Boy 36677

Control Assembly (Incl. Ref.# 203, 204, 206, 209 & 209A)
(Superseded to 742507)

$

$

Not available

203

Lawn-Boy 31342

Spring

$

$

Currently unavailable

204

Lawn-Boy 650549

Screw

$

$

Currently unavailable

206

Lawn-Boy 610973

Terminal

$

$

Currently unavailable

209

Lawn-Boy 650139

Screw

$

$

Currently unavailable

209A

Lawn-Boy 30322

Nut

$

$

Currently unavailable

215

Lawn-Boy 35440

Choke Knob

$

$

Currently unavailable

219

Lawn-Boy 34582

Rod-Choke

$

$

Currently unavailable

220

Lawn-Boy 35438

Choke Knob
(Superseded to 742440)

$

$

Not available

222

Lawn-Boy 28820

Screw

$

$

Currently unavailable

223

Lawn-Boy 650664

Screw-Fil Hd.

$

$

Currently unavailable

224

Lawn-Boy 33673A

Gasket-Intake

Note: Indicated Parts included in Gasket Set Ref.#400

$

$

Currently unavailable

260

Lawn-Boy 35656A

Housing-Blower

$

$

Currently unavailable

262

Lawn-Boy 650737

Screw

$

$

Currently unavailable

267

Lawn-Boy 34212

Bracket-Hold Down

$

$

Currently unavailable

268

Lawn-Boy 30200

Screw

$

$

Currently unavailable

274

Lawn-Boy 33670A

Gasket-Exhaust

Note: Indicated Parts included in Gasket Set Ref.#400

$

$

Currently unavailable

275

Lawn-Boy 35771

Muffler (Incl. Ref.# 274)

$

$

Not available

277

Lawn-Boy 650327

Screw-Fil. Hd.

$

$

Currently unavailable

285

Lawn-Boy 36476A

Cup-Starter

$

$

Currently unavailable

287

Lawn-Boy 650926

Screw

$

$

Currently unavailable

290

Lawn-Boy 30705

Fuel Line

$

$

Currently unavailable

291

Lawn-Boy 29774

Fuel Line

$

$

Currently unavailable

292

Lawn-Boy 26460

Clamp Fuel Line

$

$

Currently unavailable

295

Lawn-Boy 35857

Valve-Shut Off

$

$

Currently unavailable

298

Lawn-Boy 650665

Screw

$

$

Currently unavailable

300

Lawn-Boy 35584

Tank Assembly-Fuel (Incl. Ref. #292 & 301)
(Superseded to 704775)

$

$

Not available

301

Lawn-Boy 36246

Cap Fuel

$

$

Currently unavailable

305

Lawn-Boy 35554

Oil Fill Tube

$

$

Currently unavailable

307

Lawn-Boy 35499

O-Ring

$

$

Currently unavailable

308

Lawn-Boy 35539

Clip

$

$

Currently unavailable

310

Lawn-Boy 35556

Dipstick

$

$

Currently unavailable

313

Lawn-Boy 34080

Spacer

$

$

Currently unavailable

335

Lawn-Boy 35072

Cover-Carburetor

$

$

Currently unavailable

338

Lawn-Boy 650257

Screw

$

$

Currently unavailable

340

Lawn-Boy 36247

Plate-Fuel Tank

$

$

Currently unavailable

342

Lawn-Boy 30063

Screw

$

$

Currently unavailable

342A

Lawn-Boy 650675

Washer

$

$

Currently unavailable

345

Lawn-Boy 33344

Baffle-Heat

$

$

Currently unavailable

350

Lawn-Boy 570682

Primer-Asm

$

$

Currently unavailable

351

Lawn-Boy 32180C

Line-Primer

$

$

Currently unavailable

355

Lawn-Boy 590574

Handle-Starter

$

$

Currently unavailable

364

Lawn-Boy 33333

Bracket-Carburetor Cover
(Superseded to 740348)

$

$

Not available

365

Lawn-Boy 650735

Screw

$

$

Currently unavailable

370A

Lawn-Boy 36261

Decal-Instruction

$

$

Currently unavailable

370K

Lawn-Boy 36695

Emblem Decal
(Superseded to 704857)

$

$

Not available

380

Lawn-Boy 632107A

Carburetor (Incl. Ref. #184)

$

$

Currently unavailable

390

Lawn-Boy 590707

Rewind Starter

$

$

Currently unavailable

396

Lawn-Boy 33290D

Motor-Electric Starter

$

$

Currently unavailable

400

Lawn-Boy 36444

Gasket Set

$

$

Currently unavailable

420

Lawn-Boy 730226

Oil-Engine (SAE 5W30)

$

$

Currently unavailable
