28232 (824 E) - Lawn-Boy 24" Snow Thrower (SN: 009900001 - 009999999) (1999) ENGINE & BELT COVER ASSEMBLY Parts Diagram

24" Snow Thrower

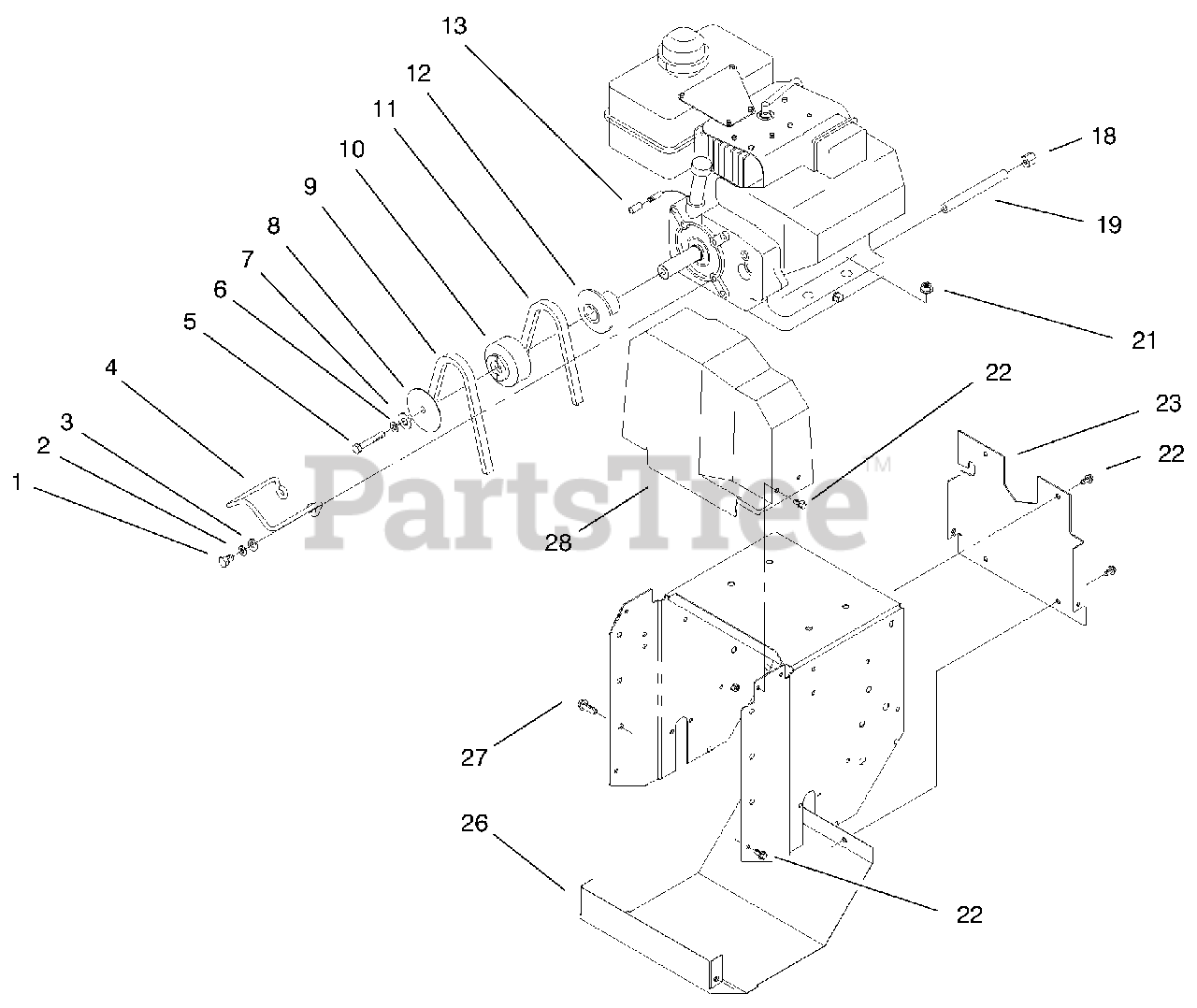

ENGINE & BELT COVER ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 3210-3

Screw-HH

$6.49

$

Usually ships in 3-6 days

0

2

Lawn-Boy 3253-4

Washer-Lock

$0.99

$

In Stock, Qty 20+

0

3

Lawn-Boy 3256-23

Washer-Flat

$2.49

$

In Stock, Qty 20+

0

4

Lawn-Boy 95-7917

Guide-Belt

$19.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 3212-8

Screw-HH

$6.49

$

In Stock, Qty 5

0

6

Lawn-Boy 3253-6

Washer-Lock

$0.99

$

In Stock, Qty 20+

0

7

Lawn-Boy 3256-41

Washer-Flat

$1.99

$

In Stock, Qty 6

0

8

Lawn-Boy 62-0940

Sheave-Half, Impeller

$18.99

$

In Stock, only 1 left!

0

9

Lawn-Boy 26-9671

V-Belt

$35.99

$

In Stock, only 3 left!

0

10

Lawn-Boy 94-8849

Pulley-Engine Center

$77.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 94-8812

Belt-Traction

$29.99

$

In Stock, Qty 19

0

12

Lawn-Boy 62-0920

Sheave-Half, Traction

$

$

Not available

13

Lawn-Boy 94-2782

Cap-Wire, Lite

$3.49

$

Usually ships in 3-6 days

0

18

Lawn-Boy 288-2

Cap-Pipe

$16.99

$

In Stock, only 1 left!

0

19

Lawn-Boy 289-34

Nipple-Pipe

$34.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 32128-20

Nut-Hex, Flange

$1.49

$

In Stock, Qty 20+

0

22

Lawn-Boy 32144-4

Screw-HH

$1.49

$

In Stock, Qty 20+

0

23

Lawn-Boy 95-6156-02

Plate-Back

$

$

Not available

26

Lawn-Boy 94-8844-02

Cover-Lower Traction

$

$

Not available

27

Lawn-Boy 32144-14

Screw-HWH

$4.99

$

In Stock, only 3 left!

0

28

Lawn-Boy 94-8802

Cover-Upper Belt

$54.99

$

Usually ships in 3-6 days

0
