28232 (824 E) - Lawn-Boy 24" Snow Thrower (SN: 009900001 - 009999999) (1999) ENGINE TECUMSEH MODEL #HMSK80-155635V Parts Diagram

24" Snow Thrower

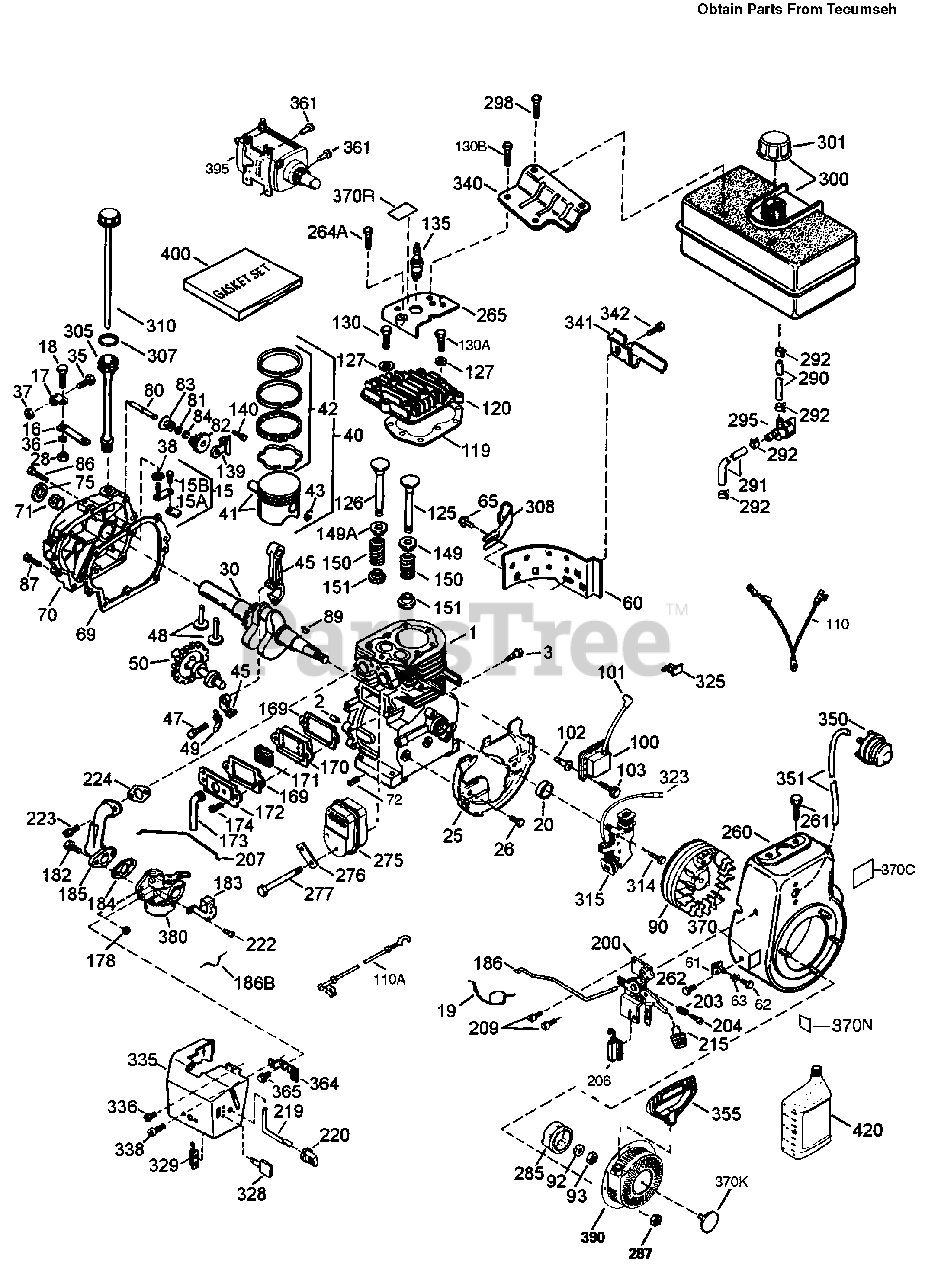

ENGINE TECUMSEH MODEL #HMSK80-155635V Parts Diagram

  • Title

1

Lawn-Boy 35385

Cylinder Asm (Incl. Ref. #2, 20, & 72)

$

$

Currently unavailable

2

Lawn-Boy 27652

Dowel Pin

$

$

Currently unavailable

3

Lawn-Boy 650820

Screw

$

$

Currently unavailable

15

Lawn-Boy 30699C

Governor (Incl. Ref. #15A & 15B)

$

$

Currently unavailable

15A

Lawn-Boy 30700

Governor Yoke

$

$

Currently unavailable

15B

Lawn-Boy 650494

Screw

$

$

Currently unavailable

16

Lawn-Boy 33454

Governor Lever

$

$

Currently unavailable

17

Lawn-Boy 29916

Governor Lever Clamp

$

$

Currently unavailable

18

Lawn-Boy 651028

Screw

$

$

Currently unavailable

19

Lawn-Boy 34663

Spring-Speed Control

$

$

Currently unavailable

20

Lawn-Boy 35319

Oil Seal

$

$

Currently unavailable

25

Lawn-Boy 36460

Blower Housing Baffle
(Superseded to 702114)

$

$

Not available

26

Lawn-Boy 650561

Screw

$

$

Currently unavailable

28

Lawn-Boy 30322

Lock Nut

$

$

Currently unavailable

30

Lawn-Boy 35571A

Crankshaft

$

$

Currently unavailable

35

Lawn-Boy 29826

Screw

$

$

Currently unavailable

36

Lawn-Boy 29918

Lock Washer

$

$

Currently unavailable

37

Lawn-Boy 29216

Lock Nut

$

$

Currently unavailable

38

Lawn-Boy 29642

Retaining Ring

$

$

Currently unavailable

40

Lawn-Boy 40011

Piston, Pin & Ring Set (Std.)

$

$

Not available

40

Lawn-Boy 40012

Piston, Pin & Ring Set (.010" OS)
(Superseded to 42329)

$

$

Not available

41

Lawn-Boy 40009

Piston & Pin Asm (Std.)(Incl. Ref. #43)

$

$

Currently unavailable

41

Lawn-Boy 40010

Piston & Pin Asm (.010" OS)(Incl. Ref. #43)

$

$

Not available

42

Lawn-Boy 40013

Ring Set (Std.)

$

$

Not available

42

Lawn-Boy 40014

Ring Set (.010" OS)

$

$

Not available

43

Lawn-Boy 27888

Piston Pin Retaining Ring
(Superseded to 702895)

$

$

Not available

45

Lawn-Boy 36897

Connecting Rod Asm (Incl. Ref. #47, & 49)

$

$

Currently unavailable

47

Lawn-Boy 651033

Connecting Rod Bolt

$

$

Currently unavailable

48

Lawn-Boy 34034

Valve Lifter

$

$

Currently unavailable

49

Lawn-Boy 36896

Oil Dipper

$

$

Currently unavailable

50

Lawn-Boy 35375

Camshaft (MCR)

$

$

Currently unavailable

60

Lawn-Boy 33273A

Blower Housing Extension

$

$

Currently unavailable

61

Lawn-Boy 34126

Grommet Mounting Bracket

$

$

Currently unavailable

62

Lawn-Boy 650760

Screw

$

$

Currently unavailable

63

Lawn-Boy 28545

Grommet

$

$

Currently unavailable

65

Lawn-Boy 650128

Screw

$

$

Currently unavailable

69

Lawn-Boy 35262A

Cylinder Cover Gasket

Note: Included in Gasket Set 36450A

$

$

Currently unavailable

70

Lawn-Boy 35376

Cylinder Cover (Incl. Ref. #71, 75, & 80)

$

$

Currently unavailable

71

Lawn-Boy 35377

Crankshaft Bushing

$3.23

$

Usually ships in 3-6 days

0

72

Lawn-Boy 27642

Oil Drain Plug

$

$

Currently unavailable

75

Lawn-Boy 35319

Oil Seal

$

$

Currently unavailable

80

Lawn-Boy 31845

Governor shaft
(Superseded to 704636)

$

$

Not available

81

Lawn-Boy 30590A

Washer

$

$

Currently unavailable

82

Lawn-Boy 35378

Governor Gear Asm (Incl. Ref. #81)

$

$

Currently unavailable

83

Lawn-Boy 30588A

Governor Spool

$

$

Currently unavailable

84

Lawn-Boy 29193

Retaining Ring

$

$

Currently unavailable

86

Lawn-Boy 650833

Screw

$

$

Currently unavailable

87

Lawn-Boy 650832

Screw

$

$

Currently unavailable

89

Lawn-Boy 32589

Flywheel Key

$

$

Currently unavailable

90

Lawn-Boy 611093

Flywheel (W/Ring Gear)

$

$

Currently unavailable

92

Lawn-Boy 650880

Lock Washer

$

$

Currently unavailable

93

Lawn-Boy 650881

Flywheel Nut

$

$

Currently unavailable

100

Lawn-Boy 35135

Solid State Ignition

$

$

Currently unavailable

101

Lawn-Boy 610118

Spark Plug Cover

$

$

Currently unavailable

102

Lawn-Boy 651024

Solid State Mounting Stud

$

$

Currently unavailable

103

Lawn-Boy 651007

Screw, Torx T-15

$

$

Currently unavailable

110

Lawn-Boy 35253

Ground Wire

$

$

Currently unavailable

110A

Lawn-Boy 35305

Ground Wire

$

$

Currently unavailable

119

Lawn-Boy 36448

Cylinder Head Gasket

Note: Included in Gasket Set 36450A

$

$

Currently unavailable

120

Lawn-Boy 36449

Cylinder Head
(Superseded to 704841)

$

$

Not available

125

Lawn-Boy 27878A

Exhaust Valve (Std.)(Incl. Ref. #151)

$

$

Currently unavailable

125

Lawn-Boy 27880A

Exhaust valve (1/32" OS)(Incl. Ref. #151)

$

$

Currently unavailable

126

Lawn-Boy 34035

Intake Valve (Std.)(Incl. Ref. #151)

$

$

Currently unavailable

126

Lawn-Boy 34036

Intake Valve (1/32" OS)(Incl. Ref. #151)

$

$

Currently unavailable

127

Lawn-Boy 650691

Washer

$

$

Currently unavailable

130

Lawn-Boy 6021A

Screw

$

$

Currently unavailable

130A

Lawn-Boy 650727

Screw

$

$

Currently unavailable

130B

Lawn-Boy 650713

Screw

$

$

Currently unavailable

135

Lawn-Boy 35395

Resistor Spark Plug (RJ19LM)

$

$

Currently unavailable

139

Lawn-Boy 33369

Governor Gear Bracket

$

$

Currently unavailable

140

Lawn-Boy 650836

Screw

$

$

Currently unavailable

149

Lawn-Boy 27882

Valve Spring Cap

$

$

Currently unavailable

149A

Lawn-Boy 35862

Valve Spring Cap

$3.23

$

Usually ships in 3-6 days

0

150

Lawn-Boy 27881

Valve Spring

$

$

Currently unavailable

151

Lawn-Boy 32581

Valve Spring Keeper

$

$

Currently unavailable

169

Lawn-Boy 27896A

Valve Cover Gasket

Note: Included in Gasket Set 36450A

$

$

Currently unavailable

170

Lawn-Boy 28423

Breather Body
(Superseded to 704585)

$28.99

$

Usually ships in 3-6 days

0

171

Lawn-Boy 28424

Breather Element

$

$

Currently unavailable

172

Lawn-Boy 28425

Valve Cover

$

$

Currently unavailable

173

Lawn-Boy 35350

Breather Tube

$

$

Currently unavailable

174

Lawn-Boy 650128

Screw

$

$

Currently unavailable

178

Lawn-Boy 29752

Nut & Lock Washer

$

$

Currently unavailable

182

Lawn-Boy 30088A

Screw

$

$

Currently unavailable

183

Lawn-Boy 34587A

Choke Bracket

$

$

Currently unavailable

184

Lawn-Boy 33263

Carburetor To Intake Pipe Gasket

Note: Included in Gasket Set 36450A

$

$

Currently unavailable

185

Lawn-Boy 33877

Intake Pipe

$

$

Currently unavailable

186

Lawn-Boy 34667

Governor Link

$

$

Currently unavailable

186B

Lawn-Boy 36652

Spring-Choke

$

$

Currently unavailable

200

Lawn-Boy 34677

Control Bracket (Incl. Ref.#19, 203, 204 & 206)

$47.54

$

Usually ships in 3-6 days

0

203

Lawn-Boy 31342

Compression Spring

$

$

Currently unavailable

204

Lawn-Boy 651029

Screw

$

$

Currently unavailable

206

Lawn-Boy 610973

Terminal

$

$

Currently unavailable

207

Lawn-Boy 33878

Throttle Link

$

$

Currently unavailable

209

Lawn-Boy 650821

Screw

$

$

Currently unavailable

215

Lawn-Boy 35440

Control Knob

$

$

Currently unavailable

219

Lawn-Boy 34586

Choke rod

$

$

Currently unavailable

220

Lawn-Boy 35438

Choke Knob
(Superseded to 742440)

$

$

Not available

222

Lawn-Boy 28820

Screw

$

$

Currently unavailable

223

Lawn-Boy 650378

Screw, Torx T-30

$

$

Currently unavailable

224

Lawn-Boy 27915A

Intake Pipe Gasket

Note: Included in Gasket Set 36450A

$

$

Currently unavailable

260

Lawn-Boy 35447A

Blower Housing

$

$

Currently unavailable

261

Lawn-Boy 650788

Screw

$

$

Currently unavailable

262

Lawn-Boy 29747B

Screw, Torx T-40

$

$

Currently unavailable

264A

Lawn-Boy 650802

Screw

$

$

Currently unavailable

265

Lawn-Boy 33272B

Cylinder Head Cover

$

$

Currently unavailable

275

Lawn-Boy 35056

Muffler

$

$

Currently unavailable

276

Lawn-Boy 31588

Locking Plate

$3.23

$

Usually ships in 3-6 days

0

277

Lawn-Boy 651002

Screw

$

$

Currently unavailable

285

Lawn-Boy 35985B

Starter Cup

$

$

Currently unavailable

287

Lawn-Boy 29752

Nut & Lock Washer

$

$

Currently unavailable

290

Lawn-Boy 29774

Fuel Line

$

$

Currently unavailable

291

Lawn-Boy 30705

Fuel Line

$

$

Currently unavailable

292

Lawn-Boy 26460

Fuel Line Clamp

$

$

Currently unavailable

295

Lawn-Boy 35857

Fuel shut-Off Valve

$

$

Currently unavailable

298

Lawn-Boy 650665

Screw

$

$

Currently unavailable

300

Lawn-Boy 34156A

Fuel Tank (Incl. Ref. #292 & 301)

$

$

Currently unavailable

301

Lawn-Boy 36246

Fuel Cap

$

$

Currently unavailable

305

Lawn-Boy 35554

Oil fill Tube

$

$

Currently unavailable

307

Lawn-Boy 35499

"O" Ring

$

$

Currently unavailable

308

Lawn-Boy 35540

Fill Tube Clip
(Superseded to 742447)

$

$

Not available

310

Lawn-Boy 36205

Dipstick

$

$

Currently unavailable

314

Lawn-Boy 650873

Screw

$

$

Currently unavailable

315

Lawn-Boy 611111

Alternator Coil (18 Watt)(Incl. Ref. #323)
(Superseded to 611113)

$

$

Not available

323

Lawn-Boy 611118

Terminal

$

$

Currently unavailable

325

Lawn-Boy 29443

Wire Clip

$

$

Currently unavailable

328

Lawn-Boy 35062

Ignition Keys

$

$

Currently unavailable

329

Lawn-Boy 610973

Terminal

$

$

Currently unavailable

335

Lawn-Boy 35057A

Carburetor Cover

$

$

Currently unavailable

336

Lawn-Boy 650765

Screw

$

$

Currently unavailable

338

Lawn-Boy 28942

Screw

$

$

Currently unavailable

340

Lawn-Boy 34154

Fuel Tank Bracket

$

$

Currently unavailable

341

Lawn-Boy 34155

Fuel Tank Bracket

$

$

Currently unavailable

342

Lawn-Boy 650561

Screw

$

$

Currently unavailable

350

Lawn-Boy 570682

Primer Bulb

$

$

Currently unavailable

351

Lawn-Boy 32180C

Primer Line

$

$

Currently unavailable

355

Lawn-Boy 590574

Starter Handle

$

$

Currently unavailable

361

Lawn-Boy 650990

Screw, Torx T-30

$

$

Currently unavailable

364

Lawn-Boy 33377

Carburetor Cover Bracket

$

$

Currently unavailable

365

Lawn-Boy 650767

Screw

$

$

Currently unavailable

370

Lawn-Boy 36261

Identification Decal

$

$

Currently unavailable

370C

Lawn-Boy 36501

Primer Decal

$

$

Currently unavailable

370K

Lawn-Boy 36695

Starter-Decal
(Superseded to 704857)

$

$

Not available

370N

Lawn-Boy 35077

Bilingual Decal

$

$

Currently unavailable

370R

Lawn-Boy 37119

Warning Decal

$

$

Currently unavailable

380

Lawn-Boy 640052

Carburetor (Incl. Ref. #184)

$

$

Currently unavailable

390

Lawn-Boy 590733

Rewind Starter (Note: This engine could have been built with 590749 starter.)

$

$

Currently unavailable

395

Lawn-Boy 33329D

Electric Starter Motor, 120 Volt (Optional)

$

$

Currently unavailable

400

Lawn-Boy 36450A

Gasket Set

$

$

Currently unavailable

420

Lawn-Boy 730226

SAE 5W30 4-Cyc. Eng. Oil

$

$

Currently unavailable
