28232 (824 E) - Lawn-Boy 24" Snow Thrower (SN: 200000001 - 200999999) (2000) ENGINE AND BELT COVER ASSEMBLY Parts Diagram

24" Snow Thrower

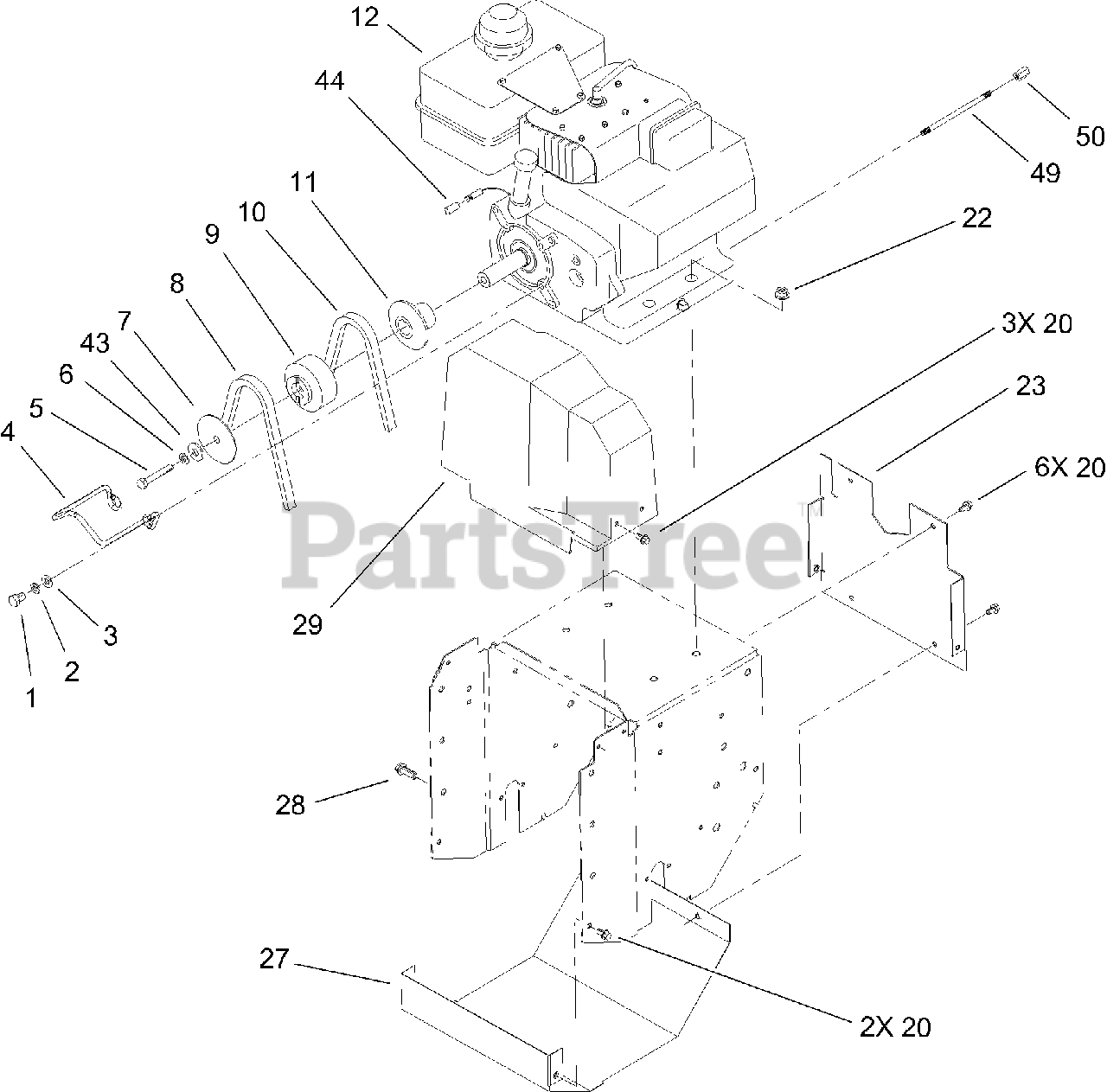

ENGINE AND BELT COVER ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 3210-3

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

2

Lawn-Boy 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

3

Lawn-Boy 3256-23

WASHER-FLAT

$2.49

$

In Stock, Qty 20+

0

4

Lawn-Boy 95-7917

GUIDE-BELT

$19.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 3212-8

SCREW-HH

$6.49

$

In Stock, Qty 5

0

6

Lawn-Boy 3253-6

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

7

Lawn-Boy 62-0940

SHEAVE-HALF, IMPELLER

$18.99

$

In Stock, only 1 left!

0

8

Lawn-Boy 26-9671

BELT V

$35.99

$

In Stock, only 3 left!

0

9

Lawn-Boy 94-8849

PULLEY-ENGINE CENTER

$77.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 94-8812

V BELT-TRACTION

$29.99

$

In Stock, Qty 19

0

11

Lawn-Boy 62-0920

SHEAVE-HALF, TRACTION

$

$

Not available

12

Engine-8hp Tecumseh, Hmsk-80-155635V

Note: Not serviced separately Obtain from your local Tecumseh dealer

$

$

Not available

20

Lawn-Boy 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

22

Lawn-Boy 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

23

Lawn-Boy 95-6156-02

PLATE-BACK

$

$

Not available

27

Lawn-Boy 94-8844-02

COVER-TRACTION, LOWER

$

$

Not available

28

Lawn-Boy 32144-14

SCREW-HWH

$4.99

$

In Stock, only 3 left!

0

29

Lawn-Boy 94-8802

COVER-UPPER BELT

$54.99

$

Usually ships in 3-6 days

0

43

Lawn-Boy 3256-41

WASHER

$1.99

$

In Stock, Qty 6

0

44

Lawn-Boy 94-2782

CAP-WIRE, LITE

$3.49

$

Usually ships in 3-6 days

0

49

Lawn-Boy 289-34

NIPPLE-PIPE

$34.99

$

Usually ships in 3-6 days

0

50

Lawn-Boy 288-2

CAP-PIPE

$16.99

$

In Stock, only 1 left!

0
