28232 (824 E) - Lawn-Boy 24" Snow Thrower (SN: 200000001 - 200999999) (2000) ENGINE ASSEMBLY NO. 1 TECUMSEH HMSK80-155635V Parts Diagram

24" Snow Thrower

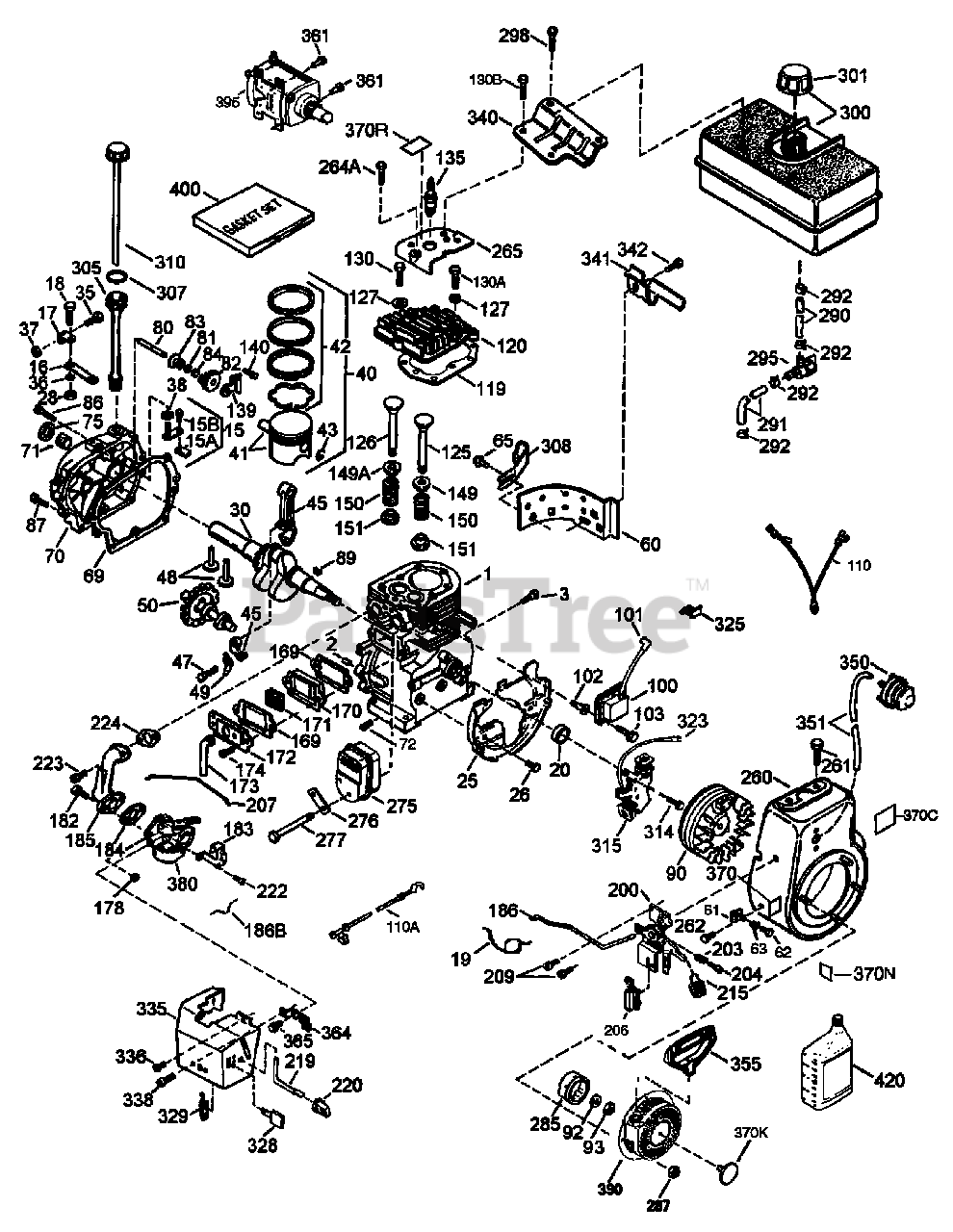

ENGINE ASSEMBLY NO. 1 TECUMSEH HMSK80-155635V Parts Diagram

  • Title

1

Lawn-Boy 35385

Cylinder ASM (Includes 2, 20, 72)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

2

Lawn-Boy 27652

Pin-Dowel

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

3

Lawn-Boy 650820

Screw (1/4-20x1/2)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

15

Lawn-Boy 30699C

Rod-Governor (Includes 15A, 15B)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

15A

Lawn-Boy 30700

Yoke-Governor

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

15B

Lawn-Boy 650494

Screw (6-40x5/16)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

16

Lawn-Boy 33454

Lever-Governor

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

17

Lawn-Boy 29916

Clamp-Lever, Governor

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

18

Lawn-Boy 651028

Screw (T-15, 8-32x7/16)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

19

Lawn-Boy 34663

Spring-Throttle

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

20

Lawn-Boy 35319

Seal-Oil

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

25

Lawn-Boy 36460

Baffle-Housing, Blower
(Superseded to 702114)

Note: Obtain from your local Tecumseh dealer

$

$

Not available

26

Lawn-Boy 650561

Screw (1/4-20x19/32)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

28

Lawn-Boy 30322

Nut-Lock (8-32)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

30

Lawn-Boy 35571A

Crankshaft

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

35

Lawn-Boy 29826

Screw (10-32x3/4)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

36

Lawn-Boy 29918

Washer-Lock (8)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

37

Lawn-Boy 29216

Nut-Lock (10-32)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

38

Lawn-Boy 29642

Ring-Retaining

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

40

Lawn-Boy 40011

Piston-Pin and Ring Set (STD)

Note: Obtain from your local Tecumseh dealer

$

$

Not available

40

Lawn-Boy 40012

Piston- Pin and Ring Set (.010 O S)
(Superseded to 42329)

Note: Obtain from your local Tecumseh dealer

$

$

Not available

41

Lawn-Boy 40009

Piston and Pin ASM (STD) (Includes 43)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

41

Lawn-Boy 40010

Piston and Pin ASM (.010 O S)

Note: Obtain from your local Tecumseh dealer

$

$

Not available

42

Lawn-Boy 40013

Ring Set (STD)

Note: Obtain from your local Tecumseh dealer

$

$

Not available

42

Lawn-Boy 40014

Ring Set (.010 O S)

Note: Obtain from your local Tecumseh dealer

$

$

Not available

43

Lawn-Boy 27888

Ring-Retaining, Piston Pin
(Superseded to 702895)

Note: Obtain from your local Tecumseh dealer

$

$

Not available

45

Lawn-Boy 36897

Connecting Rod ASM

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

47

Lawn-Boy 651033

Bolt-Rod, Connecting

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

48

Lawn-Boy 34034

Lifter-Valve

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

49

Lawn-Boy 36896

Dipper-Oil

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

50

Lawn-Boy 35375

Camshaft (MCR)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

60

Lawn-Boy 33273A

Extension-Housing, Blower

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

61

Lawn-Boy 34126

Bracket

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

62

Lawn-Boy 650760

Screw (8-32 x 3/8)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

63

Lawn-Boy 28545

Grommet

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

65

Lawn-Boy 650128

Screw (10-24x1/2)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

69

Lawn-Boy 35262A

Gasket-Cover, Cylinder

Note: Included in Gasket Set 36450A Obtain from your local Tecumseh dealer

$

$

Currently unavailable

70

Lawn-Boy 35376

Cover-Cylinder (Includes 71, 75, 80)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

71

Lawn-Boy 35377

Bushing-Crankshaft

Note: Obtain from your local Tecumseh dealer

$3.23

$

Usually ships in 3-6 days

0

72

Lawn-Boy 27642

Plug-Drain, Oil (SQH 1/4-18)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

75

Lawn-Boy 35319

Seal-Oil

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

80

Lawn-Boy 31845

Shaft-Governor
(Superseded to 704636)

Note: Obtain from your local Tecumseh dealer

$

$

Not available

81

Lawn-Boy 30590A

Washer

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

82

Lawn-Boy 35378

Governor Gear ASM (Includes 81)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

83

Lawn-Boy 30588A

Spool-Governor

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

84

Lawn-Boy 29193

Ring-Retaining

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

86

Lawn-Boy 650833

Screw (1/4-20x1-3/16)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

87

Lawn-Boy 650832

Screw (1/4-20x1-11/16)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

89

Lawn-Boy 32589

Key-Flywheel

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

90

Lawn-Boy 611093

Flywheel ASM

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

92

Lawn-Boy 650880

Washer-Belleville

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

93

Lawn-Boy 650881

Nut-Flywheel

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

100

Lawn-Boy 35135

Solid State ASM

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

101

Lawn-Boy 610118

Cover-Spark Plug

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

102

Lawn-Boy 651024

Stud-Mounting, Solid State

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

103

Lawn-Boy 651007

Screw (T-15, 10-24 x 15/16)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

110

Lawn-Boy 35253

Ground Wire

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

110A

Lawn-Boy 35305

Ground Wire

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

119

Lawn-Boy 36448

Gasket-Head, Cylinder

Note: Included in Gasket Set 36450A Obtain from your local Tecumseh dealer

$

$

Currently unavailable

120

Lawn-Boy 36449

Head-Cylinder
(Superseded to 704841)

Note: Obtain from your local Tecumseh dealer

$

$

Not available

125

Lawn-Boy 27878A

Valve-Exhaust (STD) (Includes 151)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

125

Lawn-Boy 27880A

Valve-Exhaust (1/32 O S) (Includes 151)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

126

Lawn-Boy 34035

Valve-Intake (STD) (Includes 151)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

126

Lawn-Boy 34036

Valve-Intake (.03 O S) (Includes 151)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

127

Lawn-Boy 650691

Washer

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

130

Lawn-Boy 6021A

Screw (5/16-18x1-1/2)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

130A

Lawn-Boy 650727

Screw (5/16-18x1-25/32)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

130B

Lawn-Boy 650713

Screw

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

135

Lawn-Boy 35395

Spark Plug-Resistor (R J19 L M)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

139

Lawn-Boy 33369

Bracket-Gear, Governor

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

140

Lawn-Boy 650836

Screw (10-24x1/2)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

149

Lawn-Boy 27882

Cap-Spring, Valve

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

149A

Lawn-Boy 35862

Cap-Spring, Valve

Note: Obtain from your local Tecumseh dealer

$3.23

$

Usually ships in 3-6 days

0

150

Lawn-Boy 27881

Spring-Valve

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

151

Lawn-Boy 32581

Keeper-Spring, Valve

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable
