28232 (824 E) - Lawn-Boy 24" Snow Thrower (SN: 200000001 - 200999999) (2000) GEAR CASE ASSEMBLY NO. 95-2674 Parts Diagram

24" Snow Thrower

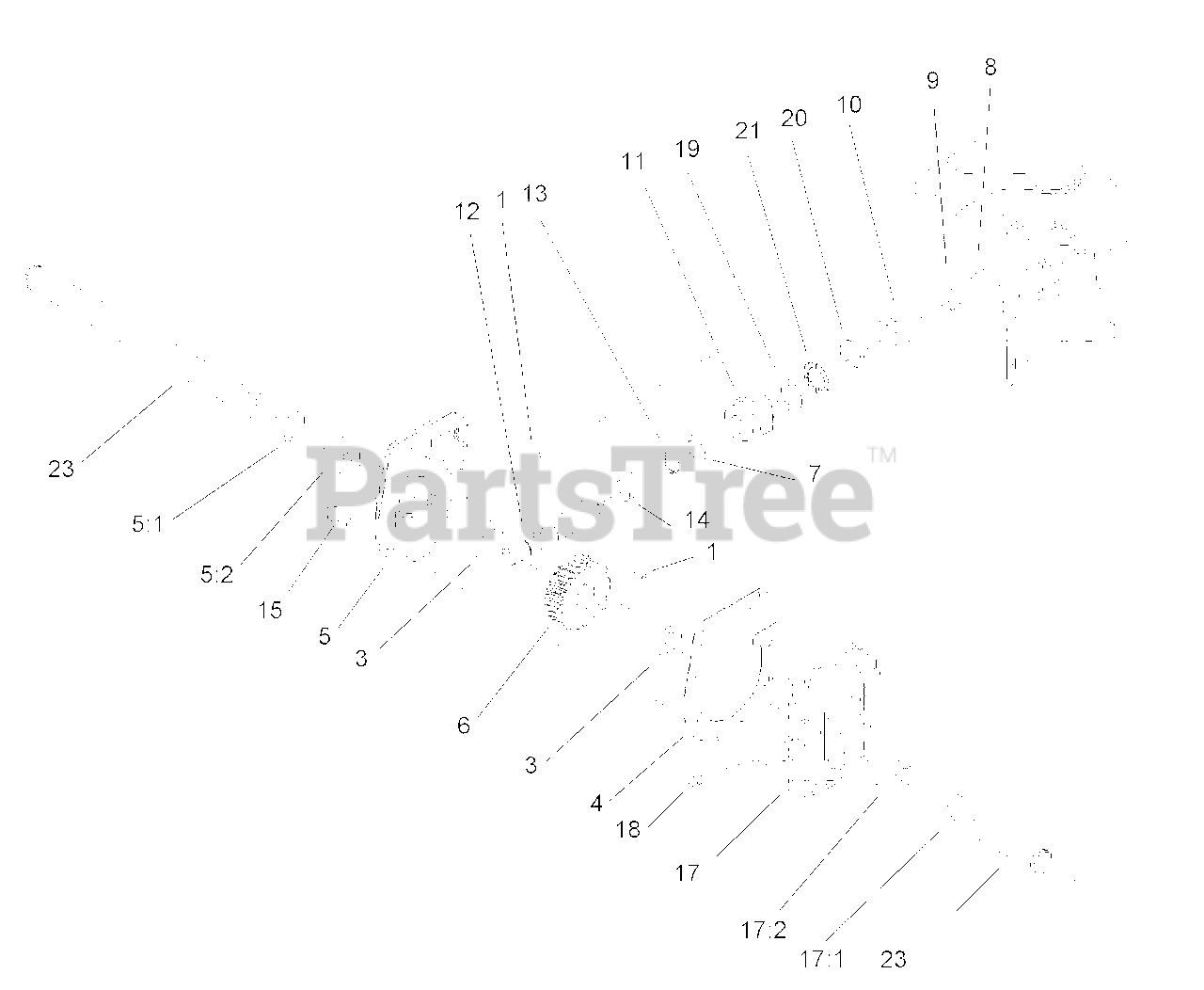

GEAR CASE ASSEMBLY NO. 95-2674 Parts Diagram

  • Title

1

Lawn-Boy 3257-33

KEY-WOODRUFF

$2.49

$

Usually ships in 3-6 days

0

3

Lawn-Boy 252-71

WASHER-THRUST

$18.99

$

In Stock, only 2 left!

0

4

Lawn-Boy 51-0460

GASKET-CASE, GEAR

$9.99

$

In Stock, only 4 left!

0

5

Lawn-Boy 14-2449

RH BUSHING CASE ASM

$164.99

$

In Stock, only 2 left!

0

5:1

Lawn-Boy 7-0045

SEAL-OIL

$20.99

$

In Stock, Qty 7

0

5:2

Lawn-Boy 256-237

BUSHING

$17.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 5-7180

GEAR-WORM, 27T

$173.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 3-8664

WASHER-THRUST

$7.49

$

In Stock, only 1 left!

0

8

Lawn-Boy 95-2675-03

IMPELLER ASM

$

$

Not available

9

Lawn-Boy 237-87

RING-QUAD

$7.99

$

In Stock, Qty 5

0

10

Lawn-Boy 37-6560

BUSHING-INPUT

$45.99

$

In Stock, only 3 left!

0

11

Lawn-Boy 5-7170

GEAR

$124.99

$

In Stock, only 3 left!

0

12

Lawn-Boy 3257-23

KEY-WOODRUFF

$7.99

$

In Stock, only 3 left!

0

13

Lawn-Boy 32120-72

Ring-Snap

$2.49

$

In Stock, only 4 left!

0

14

Lawn-Boy 256-32

BUSHING

$11.99

$

In Stock, Qty 7

0

15

Lawn-Boy 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

17

Lawn-Boy 14-2459

LH BUSHING CASE ASM

$164.99

$

In Stock, only 2 left!

0

17:1

Lawn-Boy 7-0045

SEAL-OIL

$20.99

$

In Stock, Qty 7

0

17:2

Lawn-Boy 256-237

BUSHING

$17.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 281-1

PLUG-PIPE, SQH

$5.49

$

Usually ships in 3-6 days

0

19

Lawn-Boy 252-80

WASHER-THRUST

$10.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 257-3

WASHER-THRUST

$17.99

$

In Stock, Qty 6

0

21

Lawn-Boy 252-76

BEARING-THRUST

$23.99

$

In Stock, only 1 left!

0

23

Lawn-Boy 37-6801

SHAFT-AUGER

$228.99

$

Usually ships in 3-6 days

0
