28232 (824 E) - Lawn-Boy 24" Snow Thrower (SN: 200000001 - 200999999) (2000) RECOIL STARTER NO. 590733 TECUMSEH HMSK80-155635V Parts Diagram

24" Snow Thrower

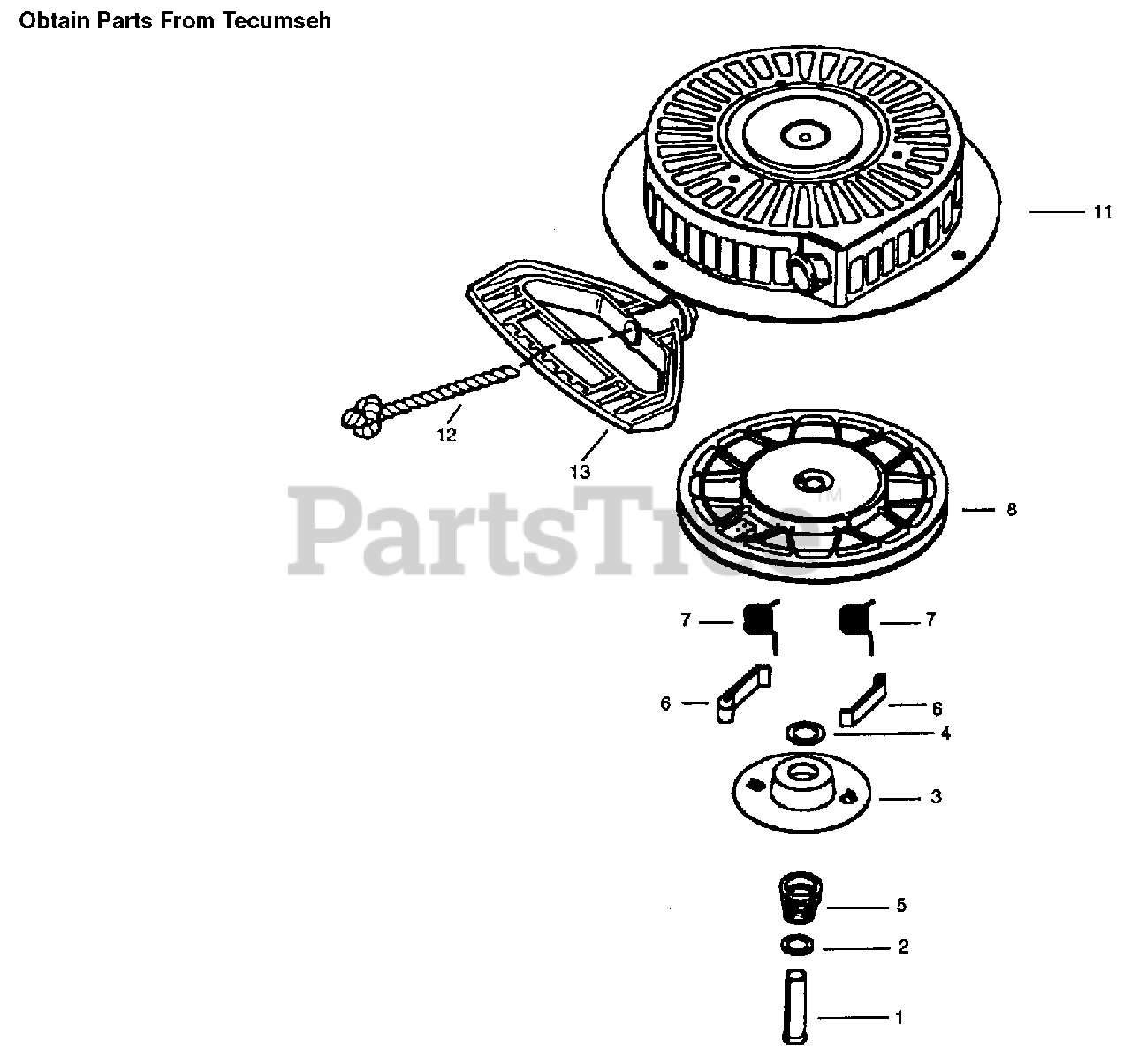

RECOIL STARTER NO. 590733 TECUMSEH HMSK80-155635V Parts Diagram

  • Title

1

Lawn-Boy 590599A

Pin-Spring (Incl. Ref. #4)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

2

Lawn-Boy 590600

Washer

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

3

Lawn-Boy 590696

Retainer

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

4

Lawn-Boy 590601

Washer

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

5

Lawn-Boy 590697

Spring-Brake

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

6

Lawn-Boy 590698

Dog-Starter

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

7

Lawn-Boy 590699

Spring-Dog

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

8

Lawn-Boy 590709

Pulley and Rewind Spring ASM

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

11

Lawn-Boy 590734

Starter Housing ASM

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

12

Lawn-Boy 590535

98 Starter Rope (cut to length)

Note: Obtain from your local Tecumseh dealer

$

$

Currently unavailable

13

Lawn-Boy 590574

Handle-Starter, Mitten Grip

Note: Not Included with Starter Obtain from your local Tecumseh dealer

$

$

Currently unavailable
