28232 (824 E) - Lawn-Boy 24" Snow Thrower (SN: 200000001 - 200999999) (2000) UPPER TRACTION ASSEMBLY Parts Diagram

24" Snow Thrower

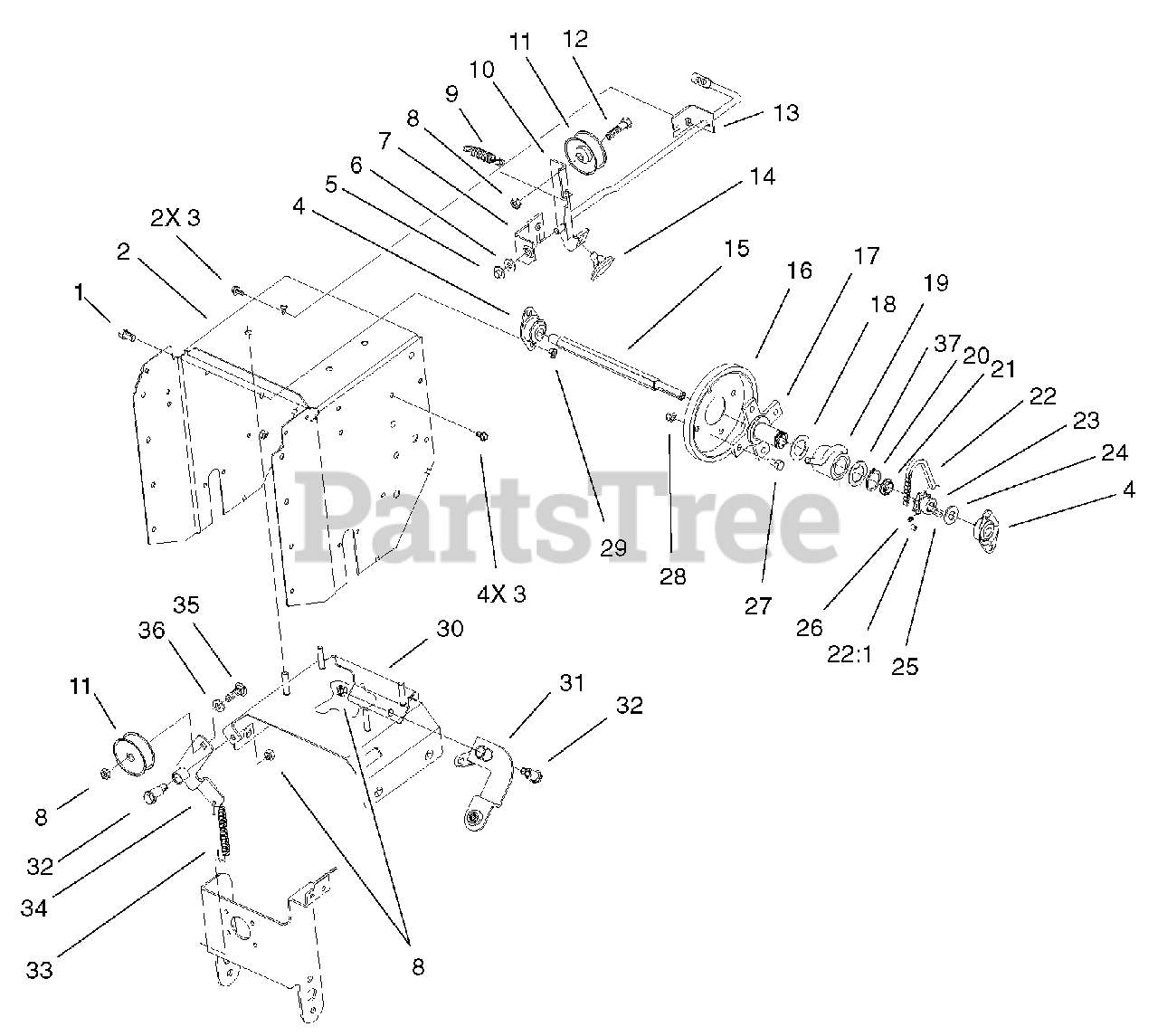

UPPER TRACTION ASSEMBLY Parts Diagram

  • Title

1

Lawn-Boy 323-4

SCREW-HH

$3.99

$

In Stock, Qty 19

0

2

Lawn-Boy 95-6157-02

FRAME-TRACTION

$198.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

4

Lawn-Boy 94-8824

BEARING-TRIANGLE

$34.99

$

In Stock, only 3 left!

0

5

Lawn-Boy 3290-320

RETAINER-PUSH ON

$1.99

$

In Stock, Qty 20+

0

6

Lawn-Boy 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Lawn-Boy 94-8829

MOUNTING-CLUTCH ROD BRACKET

$6.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

9

Lawn-Boy 53-7570

SPRING

$9.49

$

In Stock, only 1 left!

0

10

Lawn-Boy 94-9942-03

CLUTCH-AUGER

$

$

Not available

11

Lawn-Boy 3-4244

PULLEY-IDLER

$27.99

$

In Stock, only 3 left!

0

12

Lawn-Boy 323-29

SCREW-HH

$0.99

$

In Stock, Qty 7

0

13

Lawn-Boy 94-8841

MOUNTING-REAR CLUTCH ROD

$4.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 66-8060

PAD-BRAKE

$18.99

$

In Stock, Qty 20+

0

15

Lawn-Boy 94-8816

SHAFT-HEX

$100.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 40-8170

FRICTION WHEEL

$74.99

$

In Stock, Qty 5

0

17

Lawn-Boy 95-7931

HUB-TRACTION DISC

$385.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 9547

WASHER-THRUST

$6.49

$

Usually ships in 3-6 days

0

19

Lawn-Boy 94-8883

SLIDER RING ASM

$96.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 32151-36

RING-RETAINING

$4.99

$

In Stock, Qty 20+

0

21

Lawn-Boy 94-8862

SPACER

$5.49

$

In Stock, only 1 left!

0

22

Lawn-Boy 20-1810

ROLLER-CHAIN

$79.99

$

Usually ships in 3-6 days

0

22:1

Lawn-Boy 2710-6

LINK-CONNECTING (only on: 38078)

$19.99

$

Usually ships in 3-6 days

0

23

Lawn-Boy 5-9820

SPROCKET

$97.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 611878

WASHER-THRUST

$17.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 94-8850

KEY-SQUARE

$2.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 3245-32

SCREW-HSH

$5.49

$

In Stock, only 2 left!

0

27

Lawn-Boy 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

28

Lawn-Boy 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

29

Lawn-Boy 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

30

Lawn-Boy 94-8851-03

BRACE ASM

$

$

Not available

31

Lawn-Boy 99-9315

SHIFT ARM ASM

$261.99

$

Usually ships in 3-6 days

0

32

Lawn-Boy 94-8859

BOLT-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

33

Lawn-Boy 94-8870

SPRING-EXTENSION IDLER

$13.99

$

Usually ships in 3-6 days

0

34

Lawn-Boy 94-8864

BRACKET-IDLER HUB

$68.99

$

Usually ships in 3-6 days

0

35

Lawn-Boy 3231-26

SCREW-CARR

$5.49

$

In Stock, Qty 11

0

36

Lawn-Boy 9202594

WASHER

$0.99

$

In Stock, only 4 left!

0

37

Lawn-Boy 98-2252

WASHER-THRUST

$14.99

$

Usually ships in 3-6 days

0
