28232 (824 E) - Lawn-Boy 24" Snow Thrower (SN: 220000001 - 220999999) (2002) RECOIL STARTER ASSEMBLY (OPTIONAL) TECUMSEH NO. 590749 Parts Diagram

24" Snow Thrower

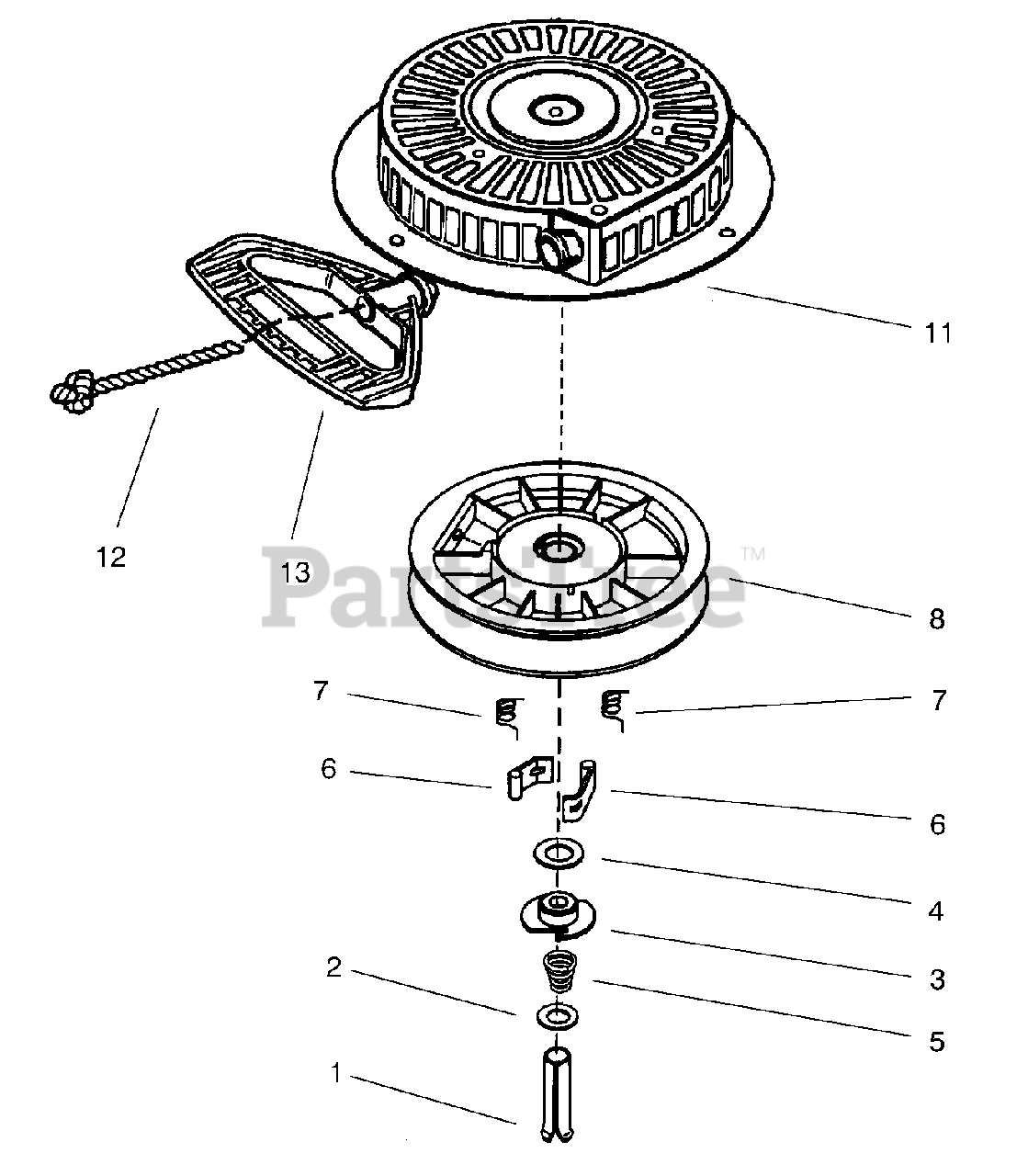

RECOIL STARTER ASSEMBLY (OPTIONAL) TECUMSEH NO. 590749 Parts Diagram

  • Title

1

Lawn-Boy 590599A

Pin-Spring (Incl. Ref. #4)

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

2

Lawn-Boy 590600

Washer

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

3

Lawn-Boy 590679

Retainer

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

4

Lawn-Boy 590601

Washer

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

5

Lawn-Boy 590678

Spring-Brake

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

6

Lawn-Boy 590680

Dog-Starter

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

7

Lawn-Boy 590412

Spring-Dog

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

8

Lawn-Boy 590682

Pulley & RewindSpring Assembly

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

11

Lawn-Boy 590750

Starter Housing Asm

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

12

Lawn-Boy 590535

Rope-Starter

Note: Obtain Parts from Tecumseh

$

$

Currently unavailable

13

Lawn-Boy 590574

Handle-Mitten Grip

Note: Obtain Parts from Tecumseh Not Included in Starter Assembly

$

$

Currently unavailable
