2840 (UT-26031) - Green Machine String Trimmer Clutch Parts Diagram

String Trimmer

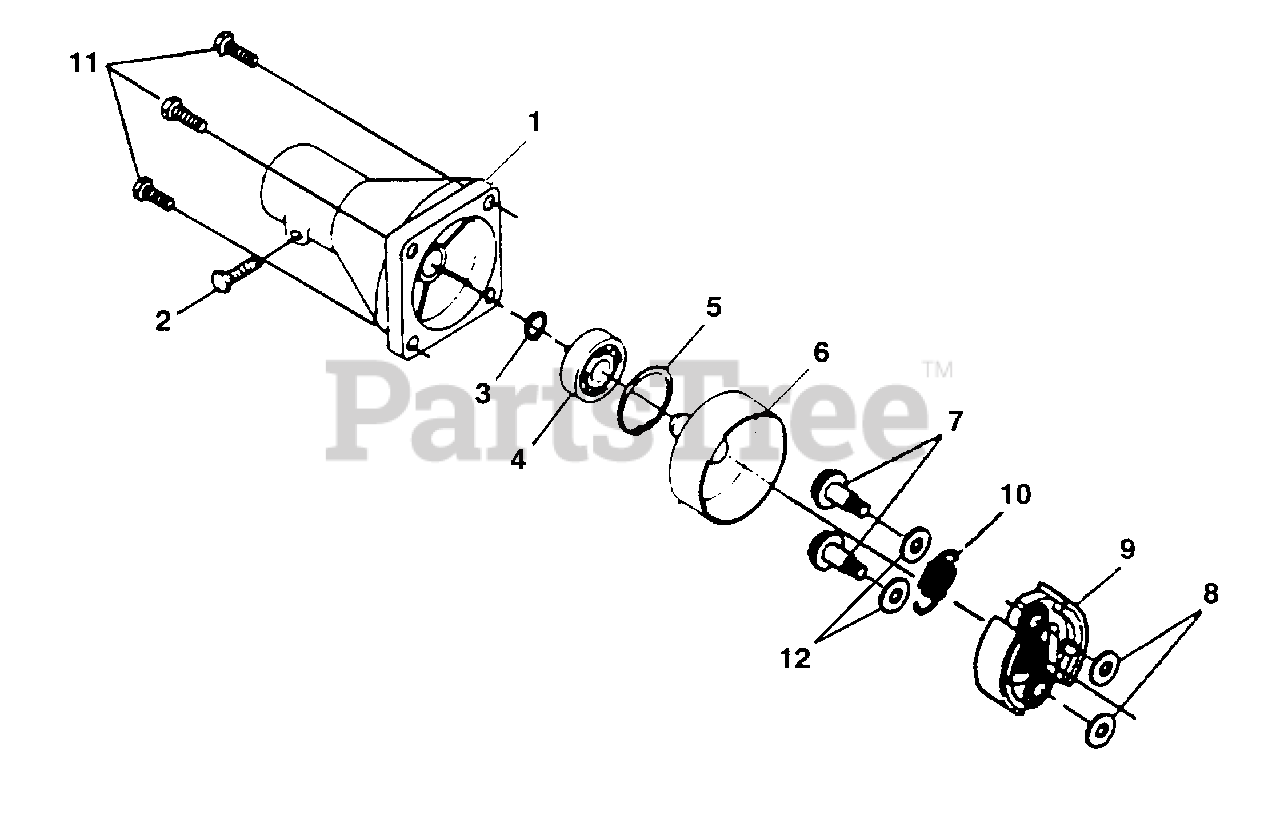

Clutch Parts Diagram

  • Title

1

Homelite A08854

CLUTCH CASE ASSY

$

$

Not available

2

Homelite GM032803

BOLT & WASHER

Note: Torque Specs: 55-65 In/Lbs; 5.9-7.8 Nm

$1.99

$

Usually ships in 3-7 days

0

3

Homelite GM062101

SNAP RING
(Superseded to UP07917)

$

$

Not available

4

Homelite GM070009

BALL BEARING

$

$

Currently unavailable

5

Homelite GM062801

SNAP RING

$

$

Currently unavailable

6

Homelite GM28671

CLUTCH DRUM

$

$

Currently unavailable

7

Homelite PS07766

BOLT, CLUTCH

Note: Torque Specs: 55-65 In/Lbs; 5.9-7.8 Nm

$

$

Not available

8

Homelite 07767

WASHER, CLUTCH

$

$

Not available

9

Homelite A07764

CLUTCH ASSY

$

$

Not available

10

Homelite GM287901

SPRING, CLUTCH

$

$

Currently unavailable

11

Homelite GM030005

BOLT & WASHER

Note: Torque Specs: 55-65 In/Lbs; 5.9-7.8 Nm

$2.99

$

Usually ships in 3-7 days

0

12

Homelite 07768

WASHER

$

$

Not available
