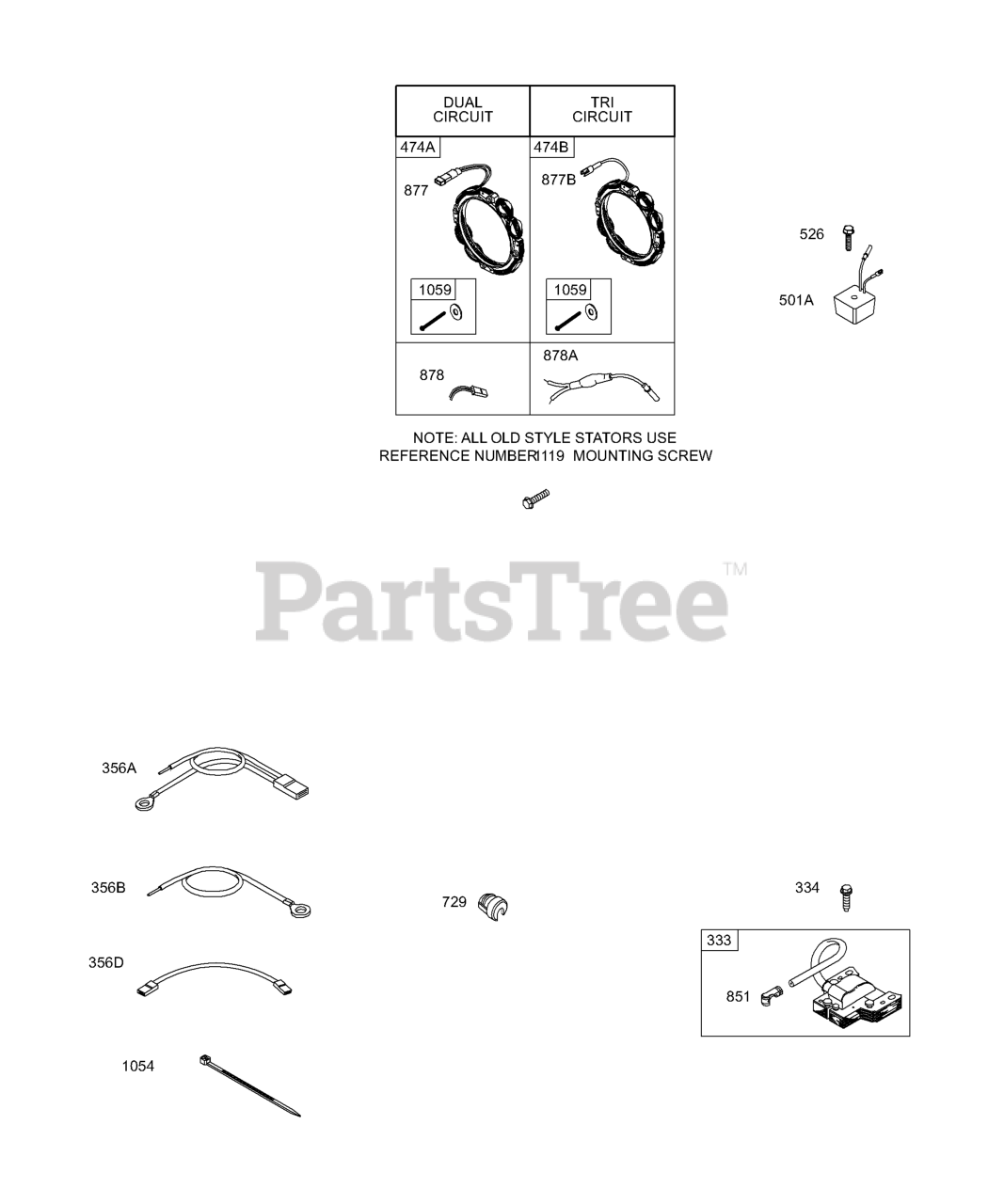

284702-1107-E1 - Briggs & Stratton Vertical Engine Alternator, Ignition Parts Diagram

Vertical Engine

Alternator, Ignition Parts Diagram

  • Title

333

Briggs & Stratton 492341

Armature-Magneto
(Superseded to 591459)

$56.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

356A

Briggs & Stratton 398808

WIRE, Stop (30" Cut To Required Length)

$12.99

$

In Stock, Qty 6

0

356B

Briggs & Stratton 399222

Wire-Stop

$

$

Not available

356D

Briggs & Stratton 690799

Wire-Stop

$12.99

$

Usually ships in 2-12 days

0

474A

Briggs & Stratton 696459

Alternator
(Superseded to 592831)

Note: (Dual Circuit)

$101.99

$

Usually ships in 2-12 days

0

501A

Briggs & Stratton 691188

Regulator
(Superseded to 794360)

Note: (Tri Circuit)

$71.99

$

In Stock, Qty 12

0

526

Briggs & Stratton 691202

Screw

Note: (Regulator)

$

$

Not available

729

Briggs & Stratton 690596

Clip-Wire

$

$

Not available

851

Briggs & Stratton 493880S

TERMINAL, Spark Plug

$3.49

$

In Stock, Qty 20+

0

877

Briggs & Stratton 393456

WIRE/CONNECTOR, Alternator

$

$

Not available

878

Briggs & Stratton 691237

Harness-Alternator
(Superseded to 398661)

$37.99

$

In Stock, only 2 left!

0

1054

Briggs & Stratton 280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days

0

1059

Briggs & Stratton 698516

KIT, Screw/Washer

$5.99

$

Usually ships in 2-12 days

0

1119

Briggs & Stratton 691183

SCREW

Note: (Alternator)

$3.99

$

Usually ships in 2-12 days

0
