285 (285122) - Cub Cadet Walk-Behind Mower (1982) Rear Wheel and Idler Bracket Assemblies Parts Diagram

Walk-Behind Mower

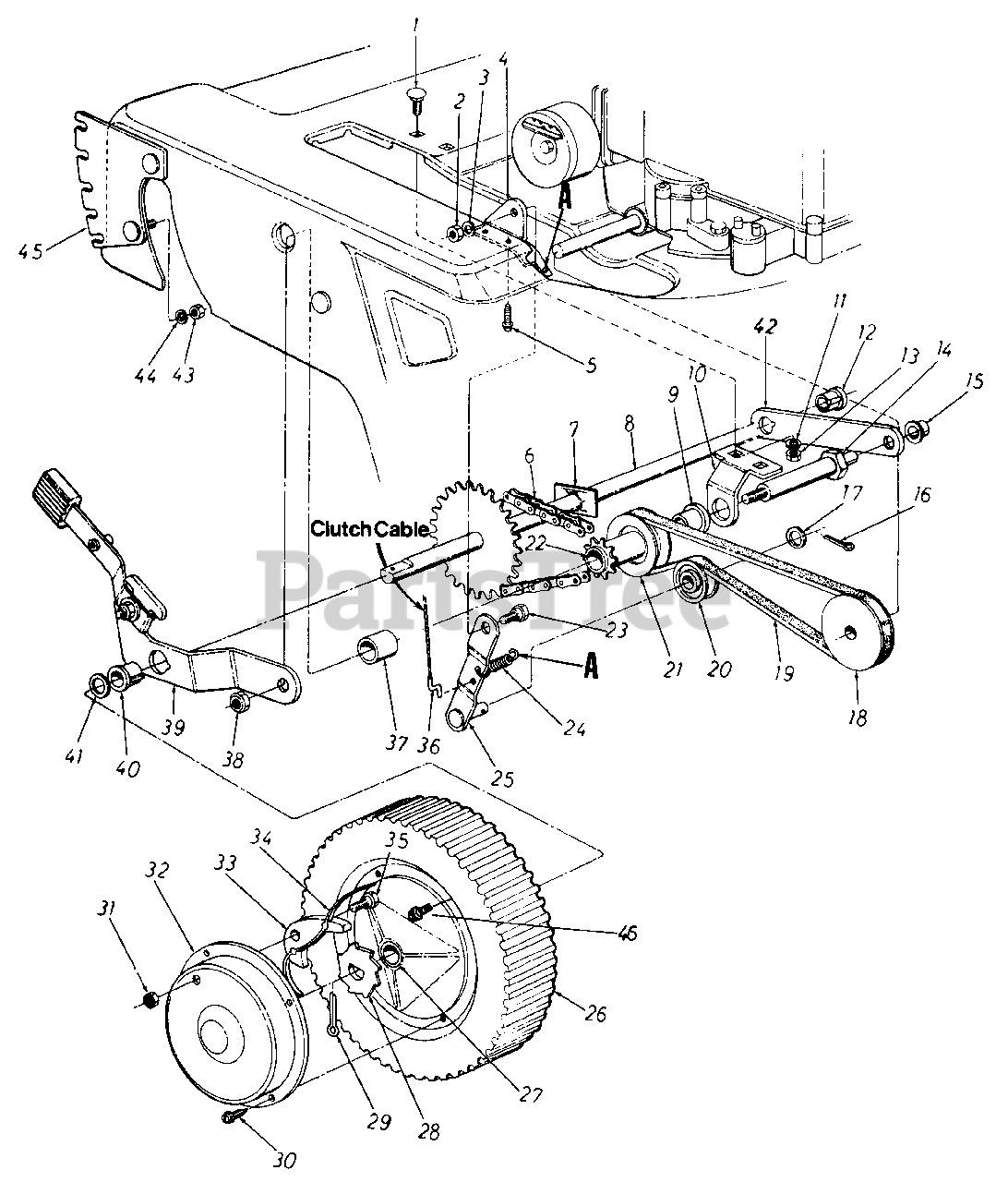

Rear Wheel and Idler Bracket Assemblies Parts Diagram

  • Title

1

Cub Cadet 710-0260

Carriage Bolt 5/16-18 x .62" Lg.
(Superseded to 710-0260A)

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 14180

Cam Bracket

$

$

Currently unavailable

5

Cub Cadet 710-0776

Hex Wash. Hd. "AB" Tap Scr. 1/4-20 x .62" Lg.
(Superseded to 710-0896)

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 713-0144

#48 Chain 1/2" Pitch x 31 Links
(Superseded to 913-0144)

$

$

Not available

Cub Cadet 713-0122

#48 Master Link 1/2" Pitch

$

$

Not available

7

Cub Cadet 726-0163

Push Clip .692 Dia.

$

$

Not available

8

Cub Cadet 10646

Rear Shaft Ass'y.

$

$

Not available

9

Cub Cadet 741-0249

Flange Bearing .631" I.D.

$3.49

$

In Stock, Qty 6

0

10

Cub Cadet 10644

Bracket

$

$

Not available

11

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 748-0142

Flange Bearing

$14.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 738-0473

Shld. Bolt .625" Dia. x 3.380 (Special)

$

$

Not available

15

Cub Cadet 726-0221

Cap Speed Nut .50" Dia.

$5.99

$

In Stock, only 2 left!

0

16

Cub Cadet 714-0115

Cotter Pin 1/8" Dia. x 1.00" Lg.

$3.99

$

In Stock, only 1 left!

0

17

Cub Cadet 736-0160

Fl-Wash. .531 I.D. x .930 O.D. x .050

$3.99

$

In Stock, only 2 left!

0

18

Cub Cadet 756-0115

Engine Pulley

$

$

Not available

19

Cub Cadet 754-0114

"V"-Belt 1/2" x 24" Lg.

$

$

Not available

20

Cub Cadet 756-0360

Plastic Flat Idler

$

$

Not available

21

Cub Cadet 756-0191

Pulley with 9 Tooth Sprocket Ass'y.

$

$

Not available

22

Cub Cadet 741-0181

Sleeve Bearing .62" I.D. x .75" O.D. x .94 Lg.
(Superseded to 941-0181)

$

$

Not available

23

Cub Cadet 738-0255

Shld. Bolt .375" Dia. x .171 Lg.
(Superseded to 938-0255)

$4.99

$

In Stock, Qty 10

0

24

Cub Cadet 732-0357

Ext. Spring .33" O.D. x 1.12" Lg.
(Superseded to 932-0357A)

$3.99

$

In Stock, Qty 5

0

25

Cub Cadet 14181

Idler Bracket Ass'y.

$

$

Currently unavailable

26

Cub Cadet 734-0880

Rear Wheel Ass'y. Comp. 8.0 x 1.75

$

$

Not available

27

Cub Cadet 741-0262

Flange Bearing - Plastic .50" I.D. x 1.13" O.D.

$7.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 748-0187

Ratchet - Rear Wheel

$

$

Not available

29

Cub Cadet 714-0115

Cotter Pin 1/8" Dia. x 1.00" Lg.

$3.99

$

In Stock, only 1 left!

0

30

Cub Cadet 710-0748

Pan Hd. "AB" Tap Scr. #12 x .50" Lg.

$

$

Not available

31

Cub Cadet 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

$3.49

$

In Stock, Qty 20+

0

32

Cub Cadet 10647

Hub Cap

$

$

Not available

33

Cub Cadet 748-0188

Pawl - Rear Wheel
(Superseded to 948-0188B)

$10.99

$

In Stock, Qty 18

0

34

Cub Cadet 10622

Spring - Nylon
(Superseded to 10622BP)

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 738-0137

Shld. Bolt .342" Dia. x .268" Lg.

$

$

Not available

36

Cub Cadet 746-0382

Clutch Control Cable 48.0" Lg. x 3.12" Ext.

$

$

Not available

37

Cub Cadet 750-0477

Spacer .635 I.D. x .88 O.D. x .910

$

$

Not available

38

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

39

Cub Cadet 10639

Pivot Bracket Ass'y. - R.H.

$

$

Not available

40

Cub Cadet 748-0142

Flange Bearing

$14.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 736-0160

Fl-Wash. .531 I.D. x .93 O.D. x .050

$3.99

$

In Stock, only 2 left!

0

42

Cub Cadet 12967

Support Link

$

$

Not available

43

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

44

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

45

Cub Cadet 10642

Index Plate Ass'y. - R.H.

$

$

Currently unavailable

46

Cub Cadet 710-0200

Hex Wash. Hd. Self-Tap Scr. #8 x .50" Lg.

$

$

Not available
