285 s - Shindaiwa Chainsaw Crankcase Parts Diagram

Chainsaw

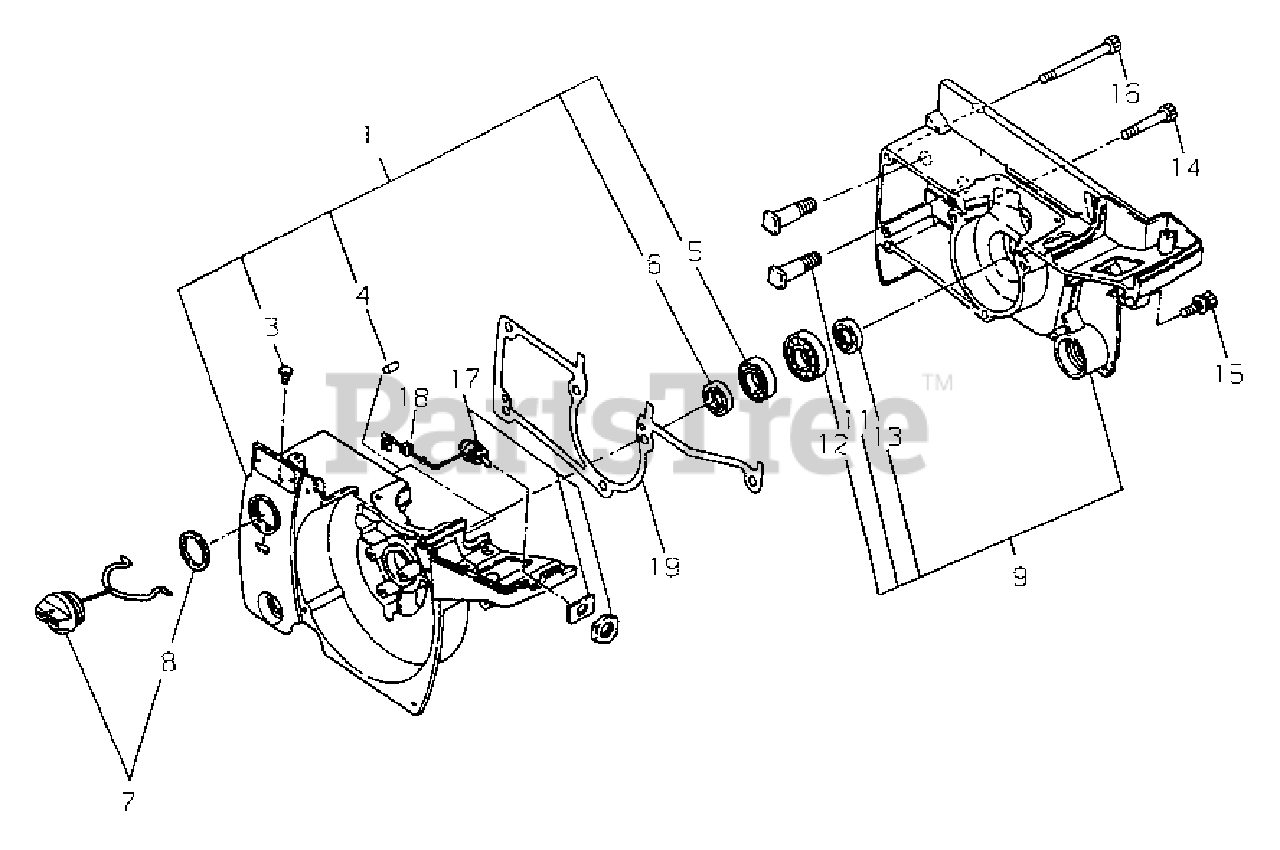

Crankcase Parts Diagram

  • Title

1

Echo 22165-21201

CRANKCASE ASSY - LEFT

$

$

Not available

3

Echo 22115-57120

VALVE, OIL
(Superseded to A356000130)

$4.49

$

Usually ships in 2-4 days

0

4

Echo 12492-40080

PIN - LOCATING
(Superseded to V622000040)

$0.99

$

In Stock, Qty 20+

0

5

Echo 12900-60010

BEARING, BALL - 6001C3
(Superseded to V592000310)

$5.99

$

In Stock, only 3 left!

0

6

Echo 22150-21250

SEAL, OIL
(Superseded to V505000140)

$3.49

$

In Stock, Qty 7

0

7

Echo 72320-31403

CAP ASSY
(Superseded to C020000030)

$10.99

$

Usually ships in 2-4 days

0

8

Echo 22160-21351

GASKET
(Superseded to V106000080)

$1.99

$

In Stock, Qty 20+

0

9

Echo 22165-21502

CRANKCASE ASSY - RIGHT
(Superseded to P021022390)

$115.99

$

Usually ships in 2-4 days

0

11

Echo 22120-12260

BOLT, BAR
(Superseded to V225000130)

$1.99

$

Usually ships in 2-4 days

0

12

Echo 12900-62010

BEARING, BALL - 6201C3
(Superseded to V592000110)

$7.99

$

In Stock, Qty 12

0

13

Echo 22150-21250

SEAL, OIL
(Superseded to V505000140)

$3.49

$

In Stock, Qty 7

0

14

Echo 11060-05300

SCREW - 5X30

$0.99

$

Usually ships in 2-4 days

0

15

Echo 11060-05182

SCREW - 5X18

$1.99

$

Usually ships in 2-4 days

0

16

Echo 11060-05450

SCREW - 5X45
(Superseded to V203001240)

$1.99

$

Usually ships in 2-4 days

0

17

Echo 22180-22100

IGNITION SWITCH ASSY
(Superseded to A045000430)

$11.99

$

Usually ships in 2-4 days

0

18

Echo 22156-22150

GROMMET

$6.99

$

Usually ships in 2-4 days

0

19

Echo 39035-21310

GASKET, CRANKCASE
(Superseded to V102000120)

$4.49

$

Usually ships in 2-4 days

0
