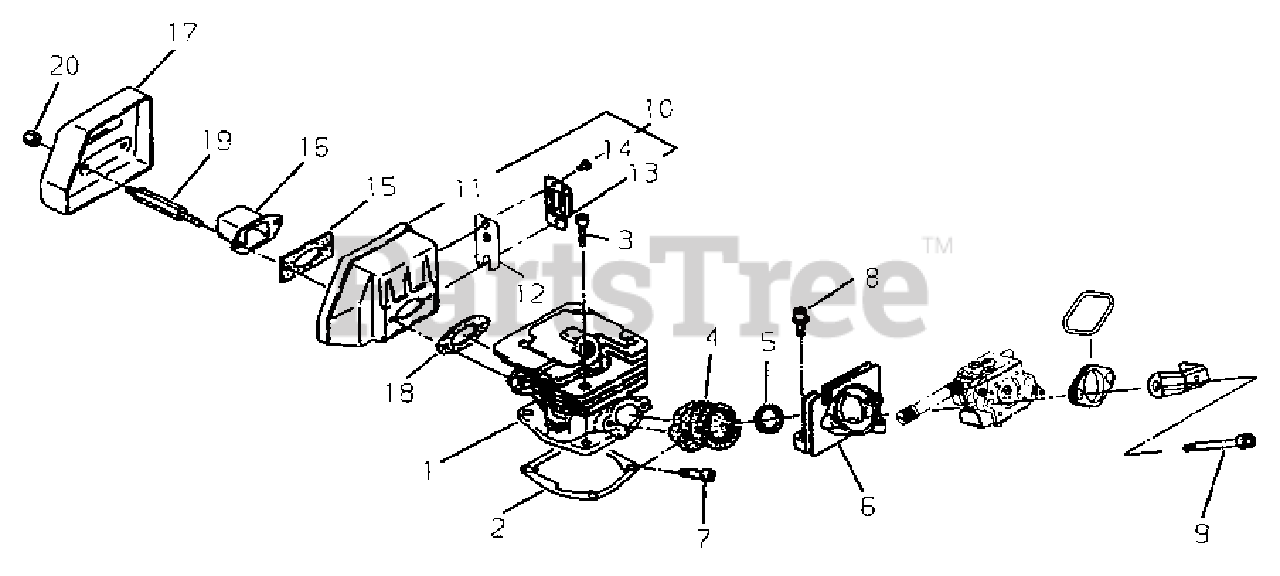

285 s - Shindaiwa Chainsaw Cylinder, Muffler Parts Diagram

Chainsaw

Cylinder, Muffler Parts Diagram

  • Title

1

Echo 39300-12110

CYLINDER
(Superseded to A130001400)

$60.99

$

In Stock, only 1 left!

0

2

Echo 22154-12120

GASKET, CYLINDER
(Superseded to V100000500)

$1.99

$

In Stock, only 3 left!

0

3

Echo 22154-12130

BOLT

$0.99

$

Usually ships in 2-4 days

0

4

Echo 22156-12153

BOOT
(Superseded to 22156-12154)

$56.99

$

Usually ships in 2-4 days

0

5

Echo 22156-14140

SLEEVE
(Superseded to V359000200)

$2.49

$

Usually ships in 2-4 days

0

6

Echo 22177-12170

BRACKET
(Superseded to A200000780)

$7.99

$

In Stock, only 1 left!

0

7

Echo 11060-04121

SCREW - 4X12
(Superseded to V202000390)

$1.99

$

Usually ships in 2-4 days

0

8

Echo 11060-04141

SCREW - 4X14
(Superseded to V202000520)

$1.99

$

Usually ships in 2-4 days

0

9

Echo 11060-05500

SCREW - 5X50
(Superseded to V203001190)

$1.99

$

Usually ships in 2-4 days

0

10

Echo 72288-15100

BASE MUFFLER ASSY
(Superseded to A030000350)

$18.99

$

Usually ships in 2-4 days

0

11

Echo 22154-15110

BASE MUFFLER
(Superseded to A300001330)

$13.99

$

Usually ships in 2-4 days

0

12

Echo 72288-15120

SCREEN, SPARK ARRESTOR

$1.99

$

In Stock, only 1 left!

0

13

Echo 22154-15130

GUIDE, EXHAUST

$4.99

$

In Stock, only 1 left!

0

14

Echo 11203-04060

SCREW - 4X6
(Superseded to 9157804006)

$0.99

$

In Stock, Qty 20+

0

15

Echo 22154-15140

PLATE, MUFFLER
(Superseded to A313001410)

$2.49

$

In Stock, only 1 left!

0

16

Echo 72303-15150

PIPE, MUFFLER
(Superseded to A313001420)

$5.99

$

In Stock, only 1 left!

0

17

Echo 69018-15120

COVER, MUFFLER
(Superseded to A300001300)

$12.99

$

Usually ships in 2-4 days

0

18

Echo 22154-15211

SHIELD, EXHAUST
(Superseded to V104001510)

$2.99

$

Usually ships in 2-4 days

0

19

Echo 72303-15410

BOLT
(Superseded to V203001220)

$3.99

$

Usually ships in 2-4 days

0

20

Echo 20011-12260

NUT
(Superseded to V263000260)

$0.99

$

In Stock, Qty 15

0
