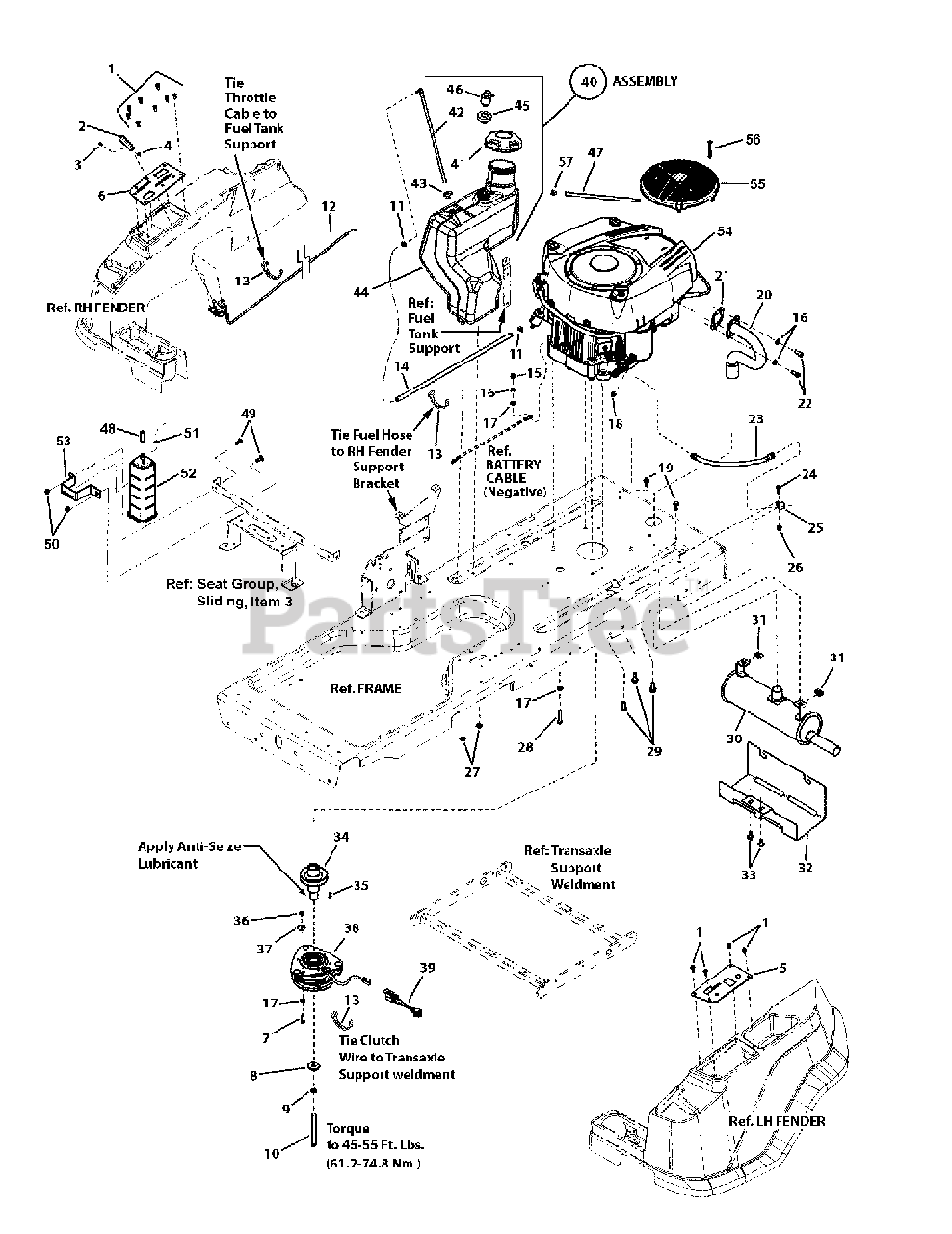

285Z (RZT 21420) (7800795-00) - Snapper 42" Zero-Turn Mower, 21hp Engine, Clutch & Fuel Tank Group Parts Diagram

42" Zero-Turn Mower, 21hp

Engine, Clutch & Fuel Tank Group Parts Diagram

  • Title

1

Snapper 7090999

SCREW, 1/4-20 x 5/8" Pan Head Self-Tap (Torx)
(Superseded to 7090999FS)

$3.99

$

Usually ships in 2-12 days

0

2

Snapper 7103888

KNOB, Throttle, Red
(Superseded to 7103888YP)

$8.49

$

In Stock, only 1 left!

0

3

Snapper 7091017

SCREW, #8-32 x 3/8" Cross Recess Filister Head, GR 2, BZ
(Superseded to 7091017YP)

$3.99

$

In Stock, Qty 5

0

4

Snapper 7091018

NUT, #8-32 Hex, GR 2B, YZ
(Superseded to 7091018YP)

$3.99

$

In Stock, Qty 11

0

5

Snapper 7301084BM

PANEL, Control, LH
(Superseded to 7301084BMYP)

$21.99

$

Usually ships in 2-12 days

0

6

Snapper 7301093BM

PANEL, Control, RH
(Superseded to 7301093BMYP)

$20.99

$

Usually ships in 2-12 days

0

7

Snapper 7091904

SCREW, 5/16-18 x 7/8" Hex Head Cap, GR 5, YZ
(Superseded to 703408)

$4.99

$

In Stock, Qty 20+

0

8

Snapper 7029138

WASHER, .468 x 1.50 x .19 Flat, YZ
(Superseded to 704053)

$9.99

$

In Stock, only 2 left!

0

9

Snapper 7091301

WASHER, 7/16" Split Lock, YZ
(Superseded to 704007)

$4.49

$

In Stock, Qty 6

0

10

Snapper 7092130

SCREW, 7/16-20 x 4-1/2" Hex Head Cap, GR 5, YZ
(Superseded to 7092130SM)

$

$

Not available

11

Snapper 7029900

CLAMP, Fuel Hose
(Superseded to 791850)

Note: (or 7012222)

$3.49

$

In Stock, Qty 20+

0

12

Snapper 7104695

ASSEMBLY, Throttle, Choke-A-Matic, B&S Single
(Superseded to 7104695YP)

$55.99

$

Usually ships in 2-12 days

0

13

Snapper 7012080

CABLE TIE, 7"
(Superseded to 7012080SM)

$4.99

$

Usually ships in 2-12 days

0

14

Snapper 7200140

HOSE, Fuel, 1/4" ID x 32"
(Superseded to 7200140YP)

$14.99

$

In Stock, only 1 left!

0

15

Snapper 7091511

NUT, 5/16-18 Hex, GR 5, YZ
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

16

Snapper 7091315

WASHER, .5/16" Split Lock, YZ
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

17

Snapper 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

18

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock, YZ
(Superseded to 703233)

$4.49

$

In Stock, only 2 left!

0

19

Snapper 1930591

SCREW, 5/16-18 x 3/4" Hex Flange Lock, Black
(Superseded to 80003531)

$5.49

$

In Stock, Qty 20+

0

20

Snapper 7104284

EXHAUST MANIFOLD, B&S, Single Cylinder, RZT
(Superseded to 7104284YP)

$35.99

$

Usually ships in 2-12 days

0

21

Snapper 7015352

GASKET, Exhaust
(Superseded to 7015352SM)

$5.49

$

In Stock, Qty 15

0

22

Snapper 7091738

SCREW, 5/16-18 x 3/4" Allen Socket Head, GR 8, BZ
(Superseded to 7091738SM)

$4.99

$

In Stock, Qty 16

0

23

Snapper 1726498

HOSE, Oil Drain, .375 ID 16.5 L
(Superseded to 1726498SM)

$26.99

$

Usually ships in 2-12 days

0

24

Snapper 7091318

SCREW, 5/16-18 x 3/4" Hex Head Cap, GR 5, YZ
(Superseded to 704287)

$3.99

$

In Stock, Qty 19

0

25

Snapper 7900020

HARNESS CLIP, 5/8"
(Superseded to 7900020SM)

$4.49

$

Usually ships in 2-12 days

0

26

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5, YZ
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

27

Snapper 7013847

RETAINER, 3/8" Bolt
(Superseded to 703986)

$4.49

$

In Stock, Qty 11

0

28

Snapper 7091908

SCREW, 5/16-18 x 1-3/4" Hex Head Cap, GR 5, YZ
(Superseded to 7091908YP)

$4.99

$

In Stock, only 2 left!

0

29

Snapper 7090324

SCREW, 3/8-16 x 1" Hex Washer Self-Tap
(Superseded to 704000)

$4.99

$

In Stock, only 4 left!

0

30

Snapper 7103411

MUFFLER, RZT
(Superseded to 7103411YP)

$231.99

$

Usually ships in 2-12 days

0

31

Snapper 1935255

NUT, Speed, Lug Type, 5/16-18
(Superseded to 1935255SM)

$3.49

$

In Stock, Qty 7

0

32

Snapper 7301083BM

HEAT SHIELD, Muffler
(Superseded to 7301083BMYP)

$46.99

$

Usually ships in 2-12 days

0

33

Snapper 7091198

SCREW, 3/8-16 x 5/8" Hex Washer Self-Tap
(Superseded to 7091198SM)

$4.49

$

Usually ships in 2-12 days

0

34

Snapper 7043343

PULLEY, Engine
(Superseded to 7043343SM)

$114.99

$

In Stock, only 2 left!

0

35

Snapper 7016755

KEY, 1/4" Square x 3/4"
(Superseded to 7016755YP)

$4.99

$

Usually ships in 2-12 days

0

36

Snapper 7091575

NUT, 5/16-18 Hex Center Lock, GR 5, YZ
(Superseded to 703164)

$3.49

$

In Stock, Qty 10

0

37

Snapper 7011763

WASHER, Fender, 5/16"
(Superseded to 7011763SM)

$4.49

$

In Stock, Qty 7

0

38

Snapper 1717664

CLUTCH, Ogura JD-11
(Superseded to 1757359)

$290.99

$

In Stock, only 1 left!

0

39

Snapper 1737462

HARNESS, Jumper, 4" Long
(Superseded to 1737462YP)

$9.99

$

Usually ships in 2-12 days

0

40

Snapper 7104646

ASSEMBLY, Tank, Emissions
(Superseded to 7104646YP)

$292.99

$

Usually ships in 2-12 days

0

41

Snapper 7104639

CAP, Fuel, Emissions, 3-1/2" w/Tether
(Superseded to 7104639YP)

$48.99

$

Usually ships in 2-12 days

0

42

Snapper 7103536

ASSEMBLY, Elbow Pickup Tube
(Superseded to 1753791YP)

$279.99

$

Usually ships in 2-12 days

0

43

Snapper 1726400

BUSHING, Fuel Tank, Red Rubber
(Superseded to 1726400FS)

$11.99

$

In Stock, only 1 left!

0

44

Snapper 7103817

ASSEMBLY, Tank & Tube
(Superseded to 7104646YP)

$292.99

$

Usually ships in 2-12 days

0

45

Snapper 209043

GROMMET
(Superseded to 799624)

$8.99

$

In Stock, only 2 left!

0

46

Snapper 7104638

ASSEMBLY, Remote Vent, No Valve
(Superseded to 770046)

$16.99

$

In Stock, only 1 left!

0

47

Snapper 7200141

HOSE, Vapor, (5MM IS x 9MM OD x 16" Long)
(Superseded to 7200141YP)

$12.99

$

Usually ships in 2-12 days

0

48

Snapper 7014361

CAP, Lift Rod
(Superseded to 7014361YP)

$4.49

$

Usually ships in 2-12 days

0

49

Snapper 7091530

BOLT, 1/4-20 x 3/4" Round Head Short Square Neck, GR 5, YZ
(Superseded to 7091530SM)

$3.99

$

In Stock, Qty 5

0

50

Snapper 7091603

NUT, 1/4-20 Hex Nyloc, YZ
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

51

Snapper 95855

CLAMP, Hose
(Superseded to 795230)

$3.99

$

Usually ships in 2-12 days

0

52

Snapper 7101425

CANISTER
(Superseded to 7101425YP)

$45.99

$

In Stock, only 1 left!

0

53

Snapper 7301099BZ

BRACKET, Canister, Vapor
(Superseded to 7301099BZYP)

$16.99

$

Usually ships in 2-12 days

0

54

Snapper 33M777-2117-G5

* ENGINE, 21HP B&S Professional Series

$

$

Not available

55

Snapper 797418

* COVER w/Briggs Label

$

$

Not available

56

Snapper 95957

SCREW, Pan Head Thread Rolling
(Superseded to 799359)

$4.49

$

In Stock, Qty 9

0

57

Snapper 7105075

CLAMP, Hose - CTL 3/8" ID
(Superseded to 7105075YP)

$6.99

$

Usually ships in 2-12 days

0
