285Z (RZT 2552) (2691199-00) - Snapper 52" Zero-Turn Mower, 25hp Front Axle Group Parts Diagram

52" Zero-Turn Mower, 25hp

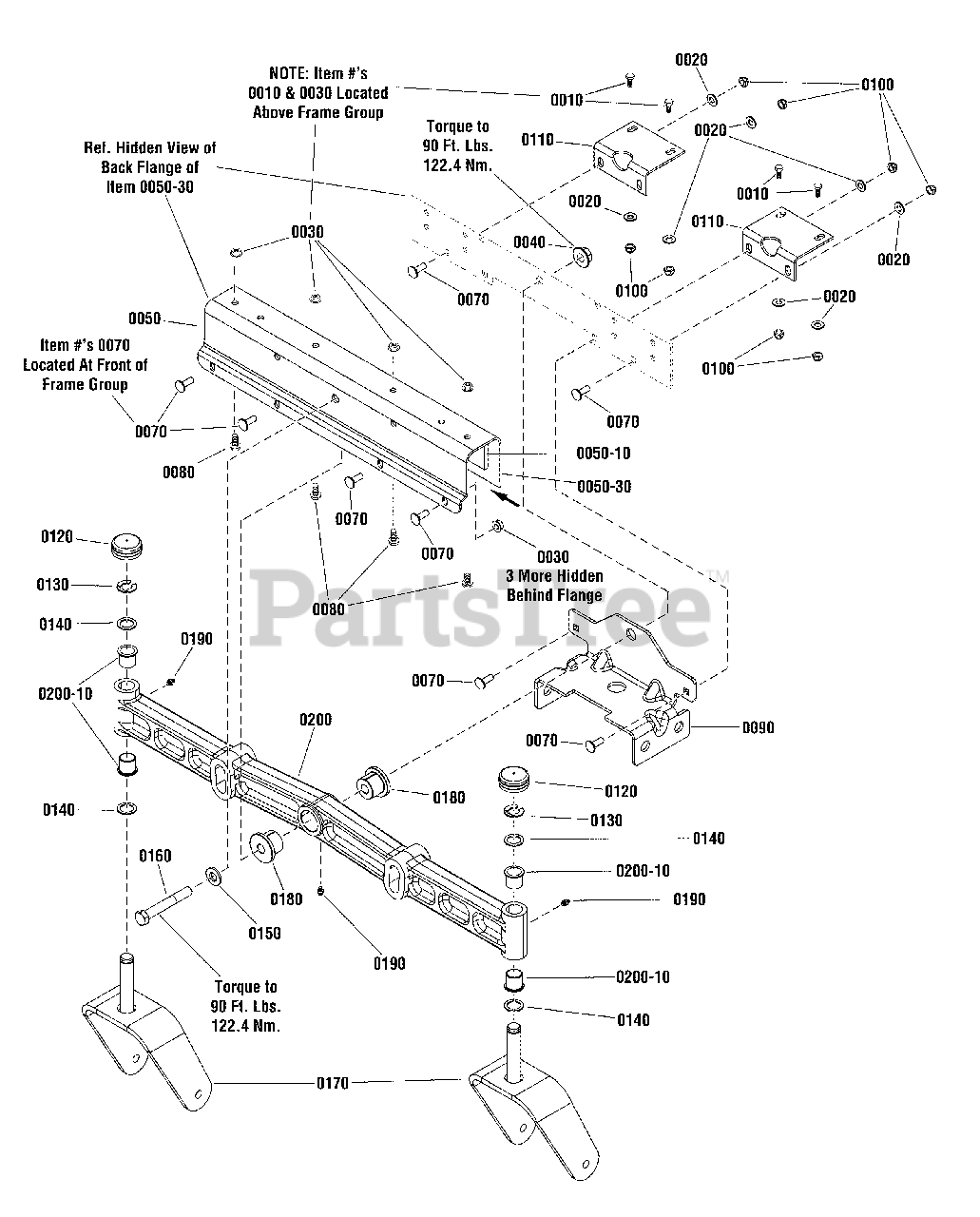

Front Axle Group Parts Diagram

  • Title

0010

Snapper 1921332SM

SCREW, 5/16-18 x 3/4 Hex Head Cap, GR 5, YZ
(Superseded to 5025011X6SM)

Note: each

$3.99

$

In Stock, only 2 left!

0

0020

Snapper 7090188SM

WASHER, 5/16 Flat
(Superseded to 703350)

Note: each

$4.49

$

In Stock, only 2 left!

0

0030

Snapper 703409

NUT, 5/16-18, Hex Flange Lock, GR 5

Note: each

$5.99

$

In Stock, Qty 20+

0

0040

Snapper 1930644SM

NUT, 1/2-13 Hex Flange Two-Way Lock, Black

Note: each

$3.49

$

In Stock, Qty 14

0

0050

Snapper 7501989YP

ASSEMBLY, Axle Bracket (Includes Item #'s 0050-10 & 0050-30)

Note: each

$

$

Not available

0050-10

Snapper 7103773YP

PLATE, Friction, Adhesive Backed

Note: each

$14.99

$

Usually ships in 2-12 days

0

0050-30

Snapper 7301076BMYP

BRACKET, Axle

Note: each

$40.99

$

Usually ships in 2-12 days

0

0070

Snapper 1931334SM

BOLT, 5/16-18 x 7/8 Round Head Short Square Neck, GR 5, Black
(Superseded to 704065)

Note: each

$4.49

$

In Stock, Qty 14

0

0080

Snapper 7091811SM

BOLT, 5/16-18 x 5/8 Hex Flange lock, GR 5, YZ
(Superseded to 703823)

Note: each

$3.99

$

In Stock, only 4 left!

0

0090

Snapper 7301096BMYP

BRACKET, Hanger, Front, 46 / 52

Note: each

$40.99

$

Usually ships in 2-12 days

0

0100

Snapper 7091706SM

NUT, 5/16-18 Hex Top Lock, GR B

Note: each

$3.99

$

Usually ships in 2-12 days

0

0110

Snapper 7300004BMYP

BRACKET, Axle Support

Note: each

$21.99

$

In Stock, only 1 left!

0

0120

Snapper 1734135SM

HUB CAP, 1.481 I.D x .62 Long Red Poly

Note: each

$6.49

$

In Stock, Qty 17

0

0130

Snapper 1611710SM

RING, Klipring External for .750 Dia. Shaft, Black

Note: each

$4.49

$

In Stock, Qty 20+

0

0140

Snapper 1960160SM

WASHER, 0.750 ID x 1.60 OD x .05 Thick, Black

Note: each

$4.99

$

In Stock, Qty 19

0

0150

Snapper 7091587SM

WASHER, 1/2 Flat
(Superseded to 704123)

Note: each

$4.49

$

In Stock, Qty 18

0

0160

Snapper 7091558SM

SCREW, 1/2-13 x 3-1/2 Hex Head Cap, YZ
(Superseded to 5025017X28SM)

Note: each

$5.99

$

In Stock, only 3 left!

0

0170

Snapper 1733448BMYP

WELDMENT, Caster Yoke & Spindle, Black

Note: each

$161.99

$

In Stock, Qty 5

0

0180

Snapper 7103454YP

BUSHING, Axle Pivot

Note: each

$46.99

$

In Stock, only 2 left!

0

0190

Snapper 1704314SM

LUBE FITTING, 3/16 Press Fit
(Superseded to 703907)

Note: each

$5.49

$

In Stock, Qty 20+

0

0200

Snapper 1733426YP

ASSEMBLY, Front Axle, Iron Casting, Machined (Includes Item #'s 0190 & 0200-10)

Note: each

$

$

Not available

0200-10

Snapper 2176440SM

BUSHING, .765 ID, .787 OD, .81 Tall, 1.07 OD Flange

Note: each

$4.99

$

In Stock, Qty 20+

0
