285Z (RZT 27460) (7800767-01) - Snapper 46" Zero-Turn Mower, 27hp Electrical Group Parts Diagram

46" Zero-Turn Mower, 27hp

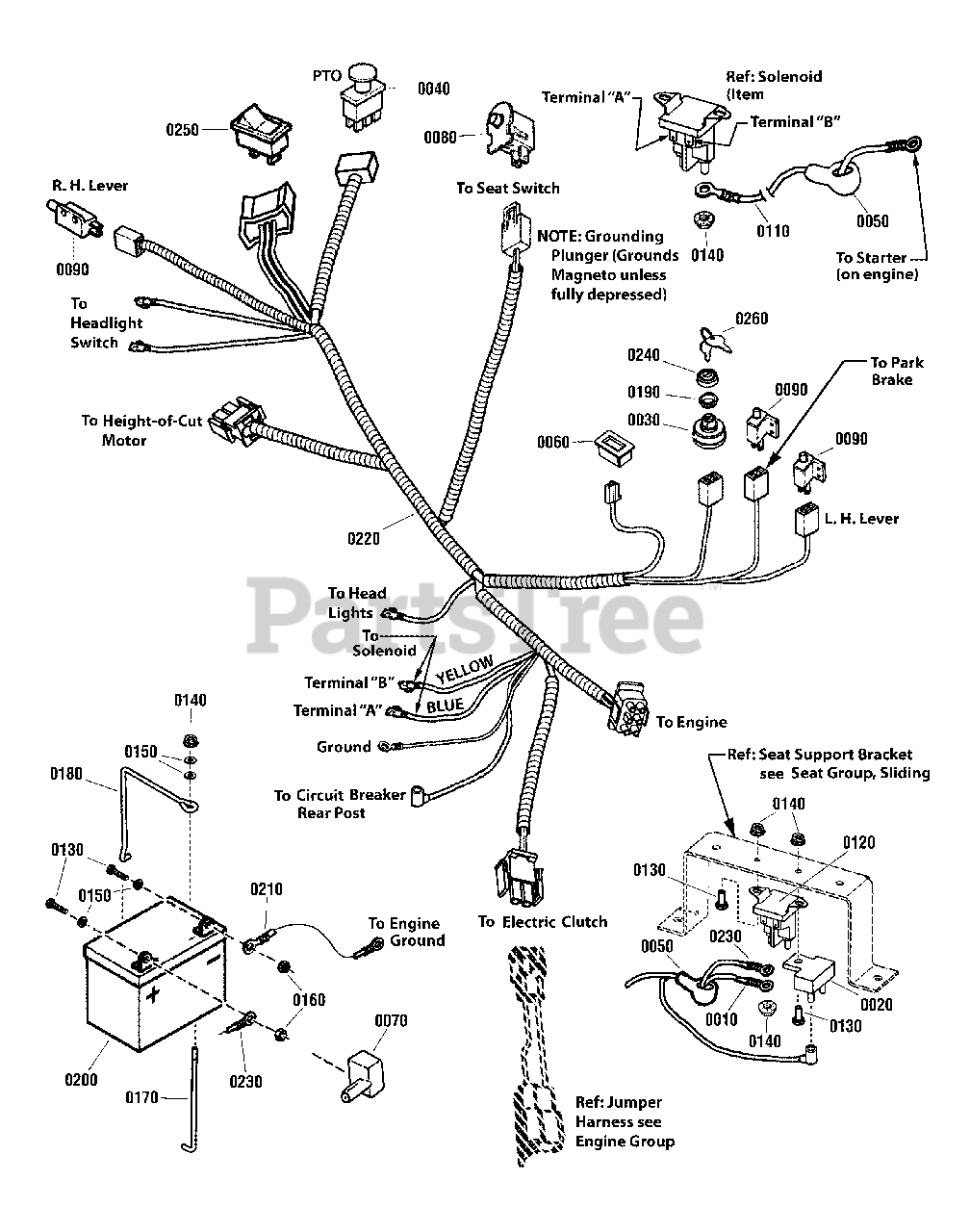

Electrical Group Parts Diagram

  • Title

0010

Snapper 1665237SM

WIRE, 12GA, 8", Red

$11.99

$

In Stock, only 1 left!

0

0020

Snapper 1665238SM

BREAKER, Circuit 12VOLT 20AMP with Tab

$14.99

$

In Stock, Qty 9

0

0030

Snapper 1737853YP

SWITCH ASSEMBLY, Ignition, 6 Pin (No Keys/Hdwr)

$35.99

$

Usually ships in 2-12 days

0

0040

Snapper 1722887YP

SWITCH, PTO Push/Pull, Yel Knob w/Symbols, 8 Terminal
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

0050

Snapper 1724588SM

COVER, Terminal, Red Vinyl

$4.99

$

Usually ships in 2-12 days

0

0060

Snapper 1731185SM

HOUR METER, Digital, No Alarms

$60.99

$

In Stock, only 1 left!

0

0070

Snapper 7012444SM

BOOT, Insulator, Battery Termnal, Red

$

$

Currently unavailable

0080

Snapper 7023354YP

SWITCH, Seat, Push Button (NC)

$12.99

$

Usually ships in 2-12 days

0

0090

Snapper 7023355YP

SWITCH, DPDT (NC/NO) (Gray)
(Superseded to 1717050SM)

$17.99

$

In Stock, Qty 12

0

0110

Snapper 7028027YP

CABLE, Battery, 8 Gauge, Black, 14", 1/4" Terminals

$10.99

$

In Stock, only 2 left!

0

0120

Snapper 1755382YP

SOLENOID, 1/4-20 STD, 2 Spade

$29.99

$

In Stock, Qty 10

0

0130

Snapper 703338

SCREW, 1/4-20 X 0.625, Hex Head Cap, GR5, Zinc/Clear

$3.99

$

Usually ships in 2-12 days

0

0140

Snapper 703954

NUT, 1/4-20, Center Lock, GR 5, Zinc/Clear
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

0150

Snapper 703332

WASHER, Flat, 1/4

$4.49

$

In Stock, Qty 11

0

0160

Snapper 703954

NUT, 1/4-20, Center Lock, GR 5, Zinc/Clear
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

0170

Snapper 7100308SM

HOLD DOWN ROD, Battery, 1/4 x 7, 1/4-20 UNC-2A

$7.99

$

In Stock, only 1 left!

0

0180

Snapper 7100309SM

BRACKET, Battery

$10.99

$

Usually ships in 2-12 days

0

0190

Snapper 703995

NUT, 5/8-32, Special, Zinc/Clear

$5.99

$

Usually ships in 2-12 days

0

0200

Snapper 7060618YP

BATTERY, 8U1L, 12 Volt, 230 CCA

$

$

Not available

0210

Snapper 7100636SM

CABLE, Battery, 8 Gauge, Black, 20, 1/4 & 5/16 Terminals

$8.99

$

Usually ships in 2-12 days

0

0220

Snapper 7103412YP

HARNESS, Wiring, RZT

$103.99

$

Usually ships in 2-12 days

0

0230

Snapper 024X31MA

CABLE, Battery 8GA 18" - Red

$7.49

$

Usually ships in 2-12 days

0

0240

Snapper 091488MA

CAP, Ignition Switch

$4.99

$

In Stock, only 4 left!

0

0250

Snapper 1734141SM

SWITCH, Rocker Electric Height-Of-Cut

$47.99

$

Usually ships in 2-12 days

0

0260

Snapper 1737836YP

KEYS, Blister Pk (KIDS+MWRS DON'T MIX) English/Spanish (set of two, one coated)

$20.99

$

Usually ships in 2-12 days

0
