2861 (UT-26308) - Green Machine Blower Attachment (1996-01) Power Blower Attachment Parts Diagram

Blower Attachment

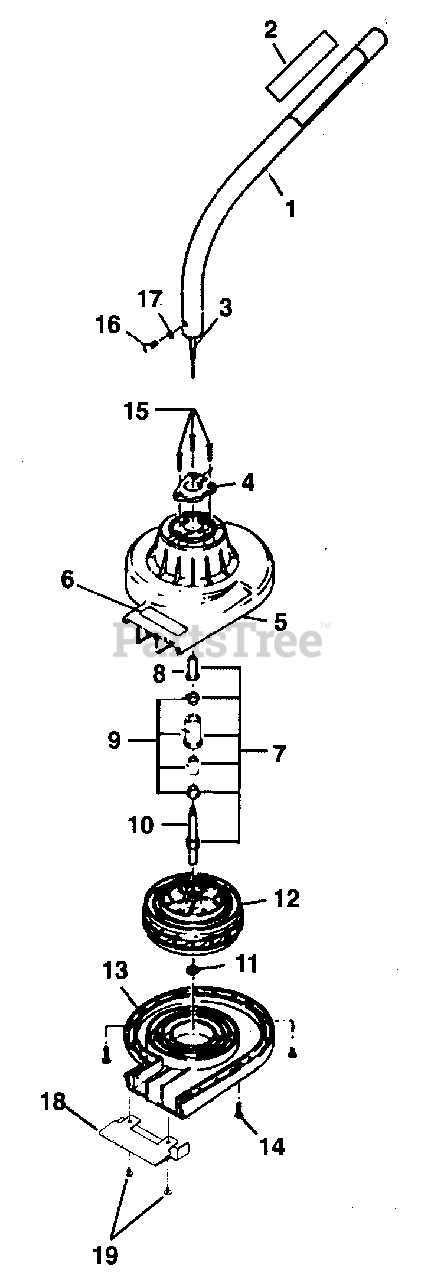

Power Blower Attachment Parts Diagram

  • Title

1

Homelite A07929

TUBE ASSY
(Superseded to UP06790)

$

$

Currently unavailable

2

Homelite 02985

LABEL, WARNING
(Superseded to 983751001)

$

$

Not available

3

Homelite A07844

FLEX CABLE

$

$

Not available

4

Homelite GM235205

CLAMP

$

$

Not available

5

Homelite 07838

UPPER HOUSING

$

$

Not available

6

Homelite 07917

LABEL, MODEL

$

$

Currently unavailable

7

Homelite A07933A

ARBOR ASSY.
(Superseded to UP06875)

Note: (SNAP RING TYPE)

$

$

Not available

8

Homelite GM166501

ARBOR ADAPTER

$

$

Not available

9

Homelite GM160305

ARBOR BUSHING ASSY.
(Superseded to UP06876)

$

$

Not available

10

Homelite 08467

ARBOR SHAFT

Note: (SNAP RING TYPE)

$

$

Not available

11

Homelite 08468

SNAP RING

$

$

Not available

12

Homelite GM235203

IMPELLER

$

$

Not available

Homelite GM167602

PAL NUT

Note: (USED 6/96 & PRIOR)

$

$

Not available

13

Homelite 07839

LOWER HOUSING

$

$

Not available

14

Homelite GM201044

SCREW
(Superseded to UP04141)

Note: Torque Specs: 35-45 In/Lbs; 4-5 Nm

$

$

Not available

15

Homelite GM011102

SCREW
(Superseded to UP04250)

Note: Torque Specs: 35-45 In/Lbs; 4-5 Nm

$

$

Not available

16

Homelite GM011401

SCREW

Note: Torque Specs: 35-45 In/Lbs; 4-5 Nm

$

$

Not available

17

Homelite GM041101

LOCK WASHER

$

$

Not available

18

Homelite GM286903

GUARD, LOWER HOUSING

$

$

Not available

19

Homelite GM011108

SCREW

Note: Torque Specs: 5-20 In/Lbs; .5-2.3 Nm

$

$

Not available
