2871 (UT-26309) - Green Machine Cultivator Attachment (1996-01) Cultivator Attachment Parts Diagram

Cultivator Attachment

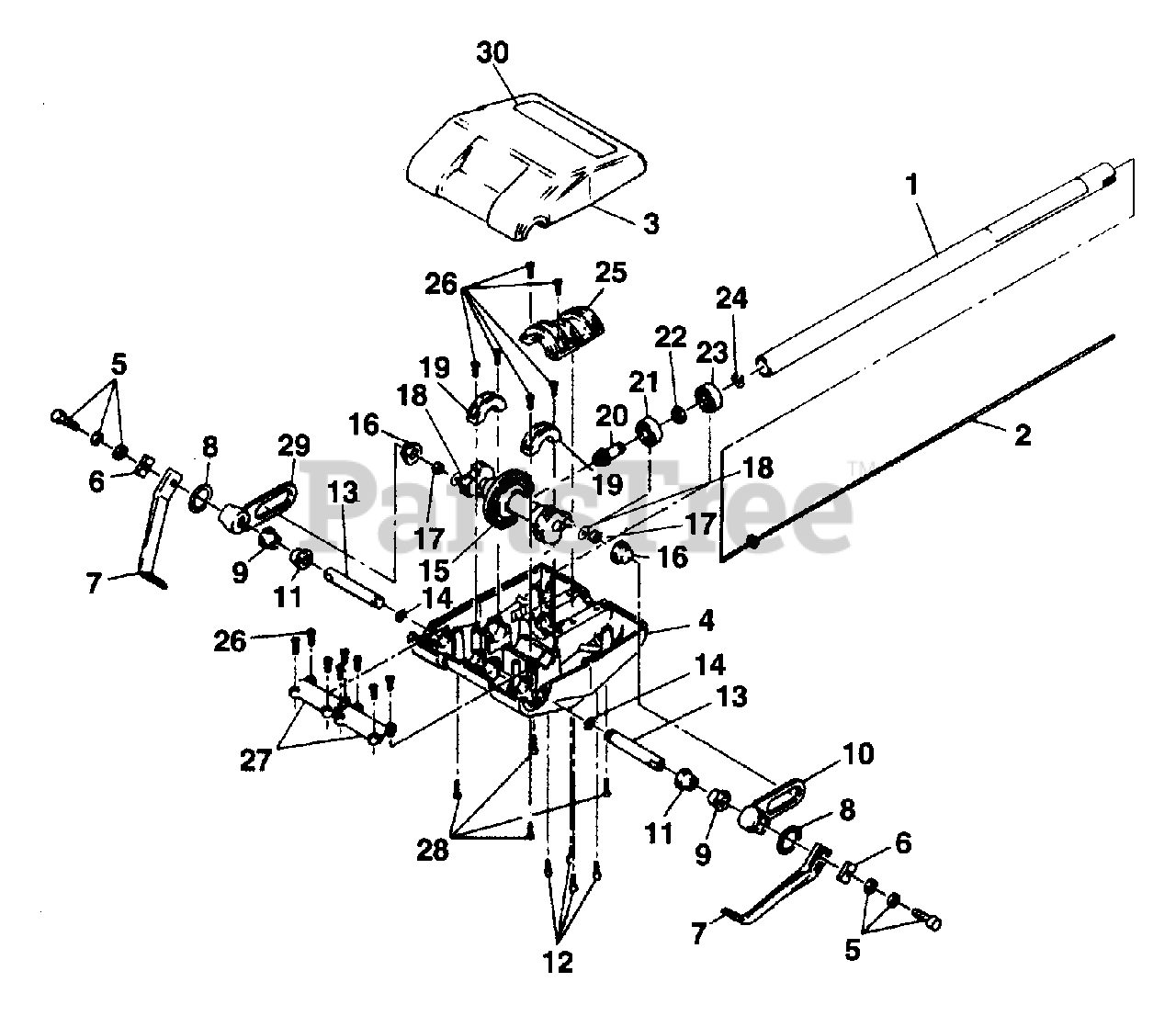

Cultivator Attachment Parts Diagram

  • Title

1

Homelite A07864

TUBE ASSY
(Superseded to UP04543)

$

$

Not available

2

Homelite A08177

FLEX CABLE

$

$

Not available

3

Homelite 07872

UPPER COVER
(Superseded to UP04544)

$24.99

$

Usually ships in 3-7 days

0

4

Homelite GM236103

LOWER COVER

$97.99

$

Usually ships in 3-7 days

0

5

Homelite GM970307

BOLT, SEMS

Note: Torque Specs: 55-65 In/Lbs; 6.2-7.3 Nm

$

$

Not available

6

Homelite GM236706

TINE SUPPORT

$

$

Not available

7

Homelite GM976903

TINE

$

$

Not available

8

Homelite GM235701

"O" RING
(Superseded to UP07916)

$

$

Not available

9

Homelite GM977703

BUSHING

$

$

Not available

10

Homelite GM236501

ROCKER ARM L.H.
(Superseded to UP08046)

$

$

Not available

11

Homelite GM977706

BUSHING

$

$

Currently unavailable

12

Homelite 82618

SCREW

Note: Torque Specs: 40-55 In/Lbs; 4.6-6.2 Nm

$

$

Not available

13

Homelite GM236704

ROCKER SHAFT

$

$

Not available

14

Homelite GM061301

WIRE RING

$

$

Not available

15

Homelite GM230324

CRANK ASSY.

$

$

Currently unavailable

16

Homelite GM235207

BEARING CAP

$3.49

$

In Stock, only 2 left!

0

17

Homelite GM071403

NEEDLE BEARING

$15.99

$

In Stock, only 2 left!

0

18

Homelite GM236903

WASHER
(Superseded to UP07281)

$

$

Not available

19

Homelite GM236106

CRANKSHAFT CLAMP

$

$

Not available

20

Homelite GM236503

PINION GEAR
(Superseded to 08462)

$

$

Not available

21

Homelite GM070005

BEARING
(Superseded to 09146)

$

$

Not available

22

Homelite GM236702

SPACER

$

$

Currently unavailable

23

Homelite GM071012

BEARING

$

$

Not available

24

Homelite GM062101

SNAP RING
(Superseded to UP07917)

$

$

Not available

25

Homelite GM236104

SHAFT CLAMP

$

$

Currently unavailable

26

Homelite 82618

SCREW

Note: Torque Specs: 40-55 In/Lbs; 4.6-6.2 Nm

$

$

Not available

27

Homelite GM236105

SHAFT CLAMP

$

$

Not available

28

Homelite GM011308

SCREW

Note: Torque Specs: 35-45 In/Lbs; 4-5 Nm

$

$

Not available

29

Homelite GM236502

ROCKER ARM R.H
(Superseded to UP08041)

$

$

Not available

30

Homelite 07874

LABEL, MODEL

$

$

Not available
