288 - Husqvarna Chainsaw (SN: 19900100001 - 19911400000) CARBURETOR & AIR FILTER Parts Diagram

Chainsaw

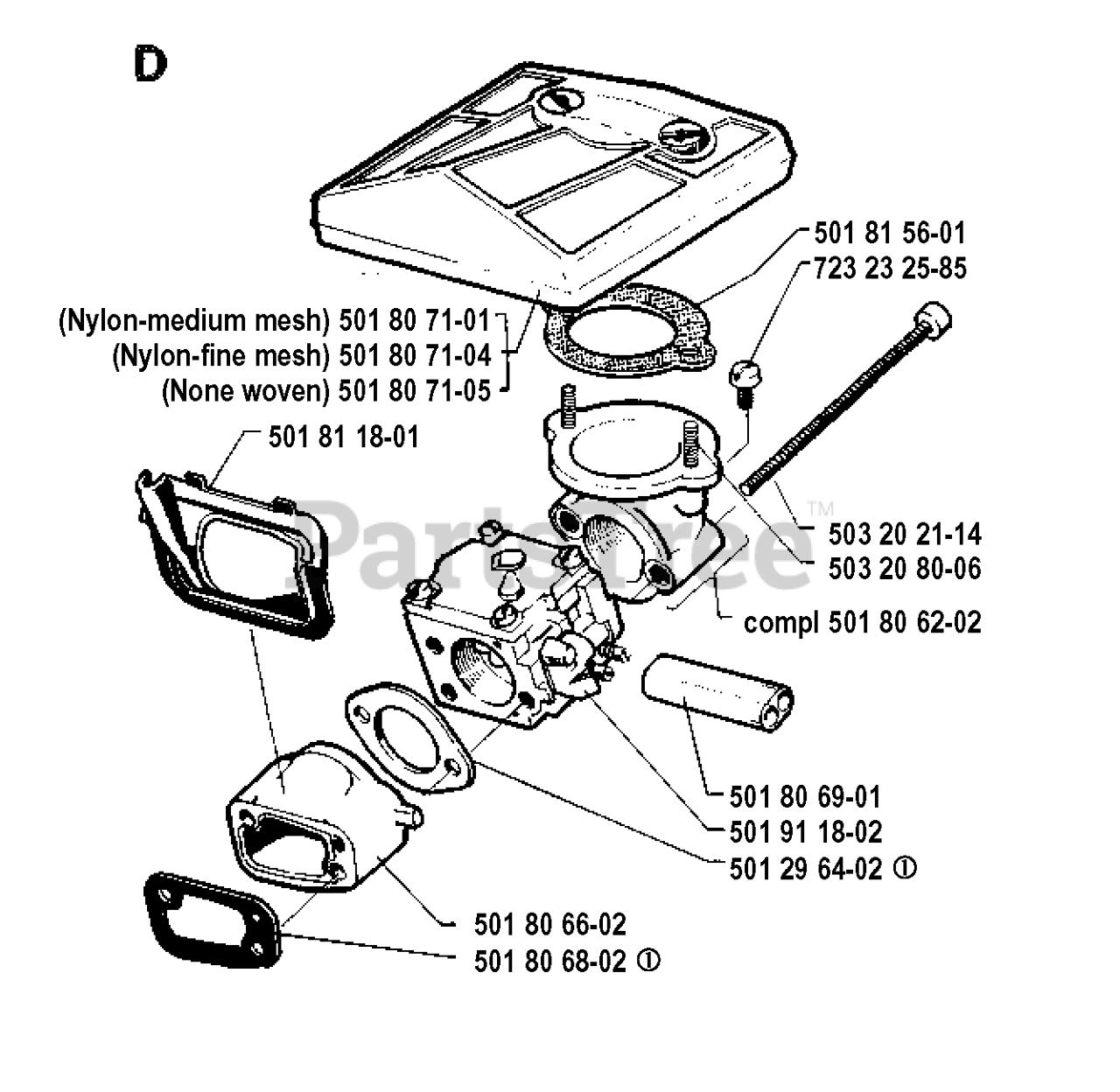

CARBURETOR & AIR FILTER Parts Diagram

  • Title

501 80 71-01

Husqvarna 501807101

AIR FILTER

Note: NYLON-MEDIUM MESH

$40.99

$

In Stock, only 3 left!

0

723 23 25-85

Husqvarna 723232585

SCREW MSCS 5X10

$3.49

$

Usually ships in 3-10 days

0

501 80 69-01

Husqvarna 501806901

SLEEVE

$9.49

$

In Stock, Qty 18

0

501 29 64-02

Husqvarna 501296402

GASKET

$6.99

$

In Stock, Qty 6

0

501 80 71-05

Husqvarna 501807105

AIR FILTER - FELT

Note: NONE WOVEN

$40.99

$

In Stock, only 2 left!

0

503 20 21-14

Husqvarna 503202114

SCREW
(Superseded to 503202191)

$10.99

$

Usually ships in 3-10 days

0

501 80 66-02

Husqvarna 501806602

SPACER

$31.99

$

In Stock, only 2 left!

0

501 81 18-01

Husqvarna 501811801

SEALING COLLAR

$9.49

$

Usually ships in 3-10 days

0

501 80 62-02

Husqvarna 501806202

AIR FILTER ATTACHMENT

$45.99

$

Usually ships in 3-10 days

0

501 80 68-02

Husqvarna 501806802

GASKET

$6.99

$

In Stock, Qty 5

0

503 20 80-06

Husqvarna 503208006

STUD 5X22

$7.49

$

Usually ships in 3-10 days

0

501 81 56-01

Husqvarna 501815601

GASKET

$6.99

$

In Stock, only 3 left!

0

501 91 18-02

Husqvarna 501911802

CARB
(Superseded to 503280118)

$170.99

$

Usually ships in 3-10 days

0

501 80 71-04

Husqvarna 501807104

AIR FILTER
(Superseded to 501807106)

Note: NYLON-FINE MESH

$37.99

$

Usually ships in 3-10 days

0
