288 - Husqvarna Chainsaw (SN: 19911400001 - 19933600000) CARBURETOR & AIR FILTER Parts Diagram

Chainsaw

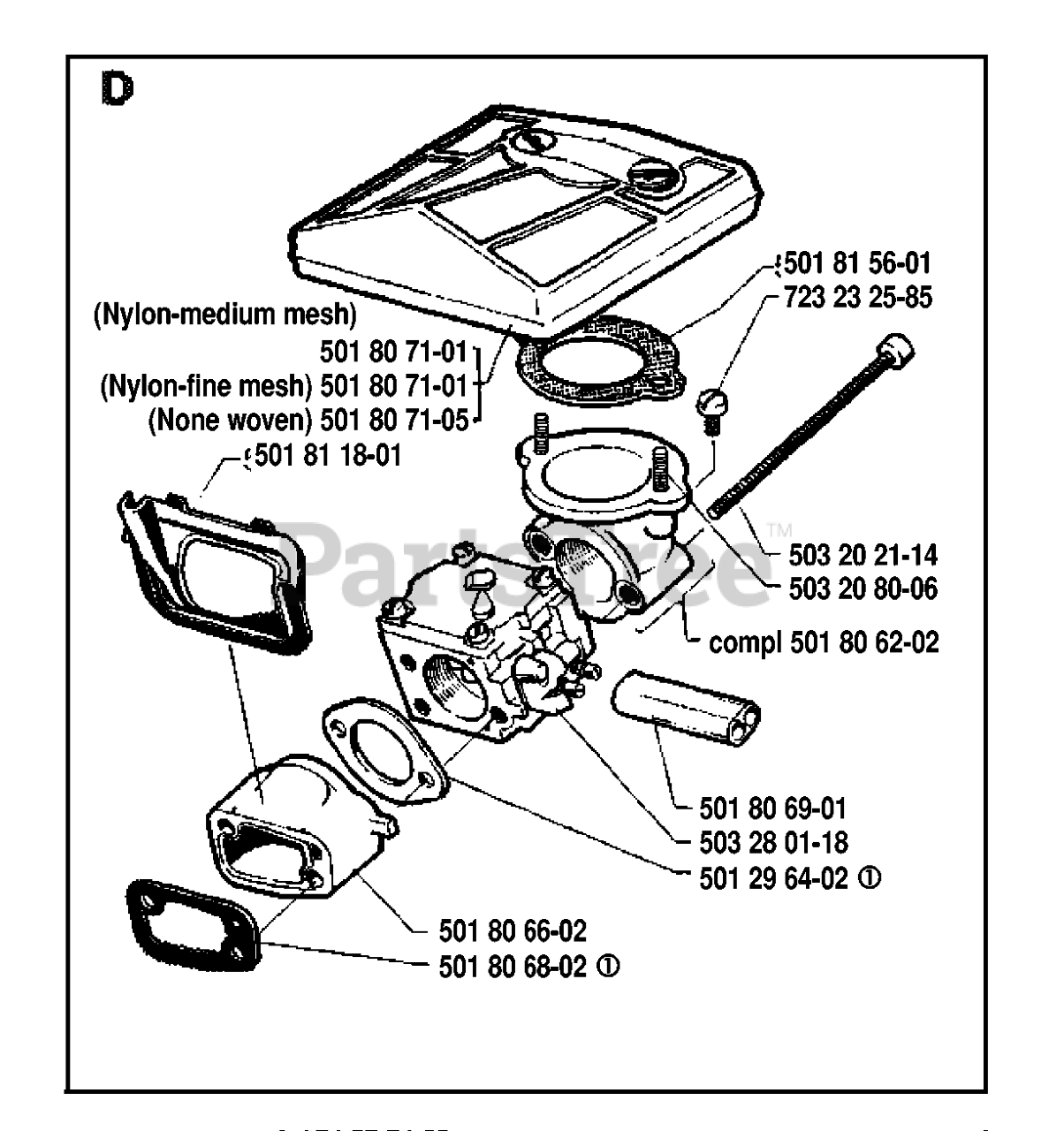

CARBURETOR & AIR FILTER Parts Diagram

  • Title

503 20 21-14

Husqvarna 503202114

SCREW
(Superseded to 503202191)

$5.99

$

Usually ships in 3-10 days

0

501 80 71-05

Husqvarna 501807105

AIR FILTER - FELT

Note: NONE WOVEN

$51.99

$

In Stock, only 1 left!

0

723 23 25-85

Husqvarna 723232585

SCREW MSCS 5X10

$

$

Not available

501 80 68-02

Husqvarna 501806802

GASKET

$4.99

$

In Stock, only 2 left!

0

503 28 01-18

Husqvarna 503280118

CARBURETOR TL-HS 228C
(Superseded to 503280401)

$

$

Not available

501 81 56-01

Husqvarna 501815601

GASKET

$4.99

$

In Stock, Qty 20+

0

501 80 71-01

Husqvarna 501807101

AIR FILTER

Note: NYLON-FINE MESH

$45.99

$

In Stock, only 1 left!

0

501 80 66-02

Husqvarna 501806602

SPACER

$22.99

$

In Stock, only 2 left!

0

501 80 71-01

Husqvarna 501807101

AIR FILTER

Note: NYLON-MEDIUM MESH

$45.99

$

In Stock, only 1 left!

0

501 80 62-02

Husqvarna 501806202

AIR FILTER ATTACHMENT

$31.99

$

Usually ships in 3-10 days

0

503 20 80-06

Husqvarna 503208006

STUD 5X22

$3.49

$

Usually ships in 3-10 days

0

501 29 64-02

Husqvarna 501296402

GASKET

$3.49

$

In Stock, Qty 8

0

501 81 18-01

Husqvarna 501811801

SEALING COLLAR

$6.99

$

Usually ships in 3-10 days

0

501 80 69-01

Husqvarna 501806901

SLEEVE

$6.99

$

In Stock, Qty 14

0
