288 - Husqvarna Chainsaw (SN: 19974900001 - 20000600000) FUEL TANK & HANDLE Parts Diagram

Chainsaw

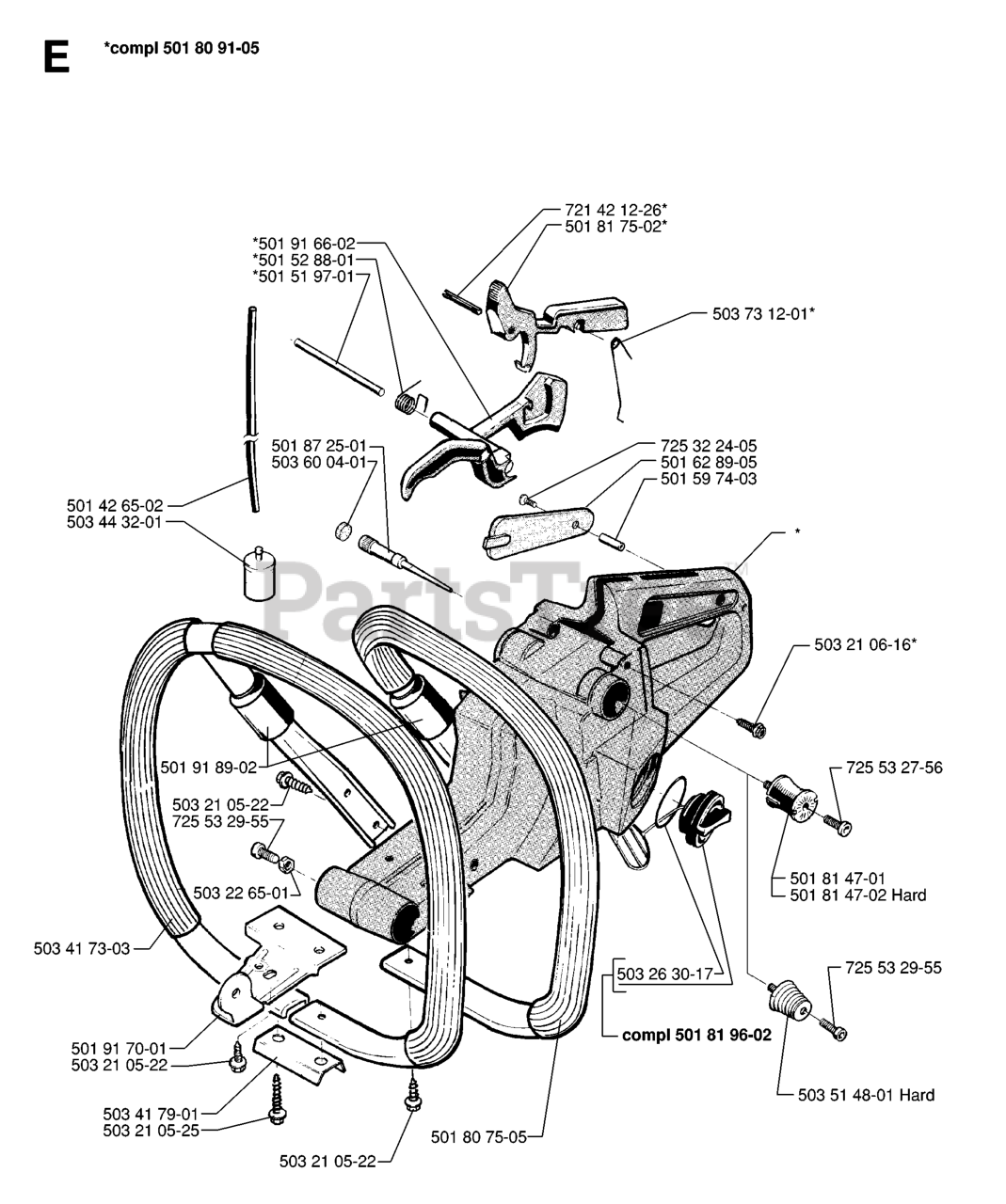

FUEL TANK & HANDLE Parts Diagram

  • Title

503 21 05-22

Husqvarna 503210522

SCREW

$7.99

$

In Stock, Qty 20+

0

721 42 12-26

Husqvarna 721421226

SPRING PIN 3X24

$6.49

$

In Stock, Qty 7

0

503 41 79-01

Husqvarna 503417901

PLATE

$10.99

$

In Stock, only 1 left!

0

501 62 89-05

Husqvarna 501628905

HANDLE FILLER

$9.49

$

In Stock, only 1 left!

0

503 22 65-01

Husqvarna 503226501

SQUARE NUT M5
(Superseded to 503226504)

$6.49

$

In Stock, Qty 20+

0

503 44 32-01

Husqvarna 503443201

RP FUEL FILTER
(Superseded to 591375401)

$10.99

$

In Stock, Qty 20+

0

725 53 29-55

Husqvarna 725532955

SCREW MC6S 5X16

$6.49

$

In Stock, Qty 20+

0

501 51 97-01

Husqvarna 501519701

SHAFT

$10.99

$

In Stock, only 2 left!

0

501 80 75-05

Husqvarna 501807505

FRONT HANDLE, STD

$91.99

$

Usually ships in 3-10 days

0

501 81 47-02

Husqvarna 501814702

ANTIVIBE ELEMENT

Note: HARD

$17.99

$

In Stock, Qty 5

0

503 41 73-03

Husqvarna 503417303

FRONT HANDLE WA

$

$

Not available

501 81 75-02

Husqvarna 501817502

THROTTLE CATCH

$10.99

$

Usually ships in 3-10 days

0

501 91 89-02

Husqvarna 501918902

SUPPORT

$12.99

$

Usually ships in 3-10 days

0

501 81 96-02

Husqvarna 501819602

FUEL/OIL CAP
(Superseded to 537215207)

$10.99

$

In Stock, Qty 20+

0

501 59 74-03

Husqvarna 501597403

SPACER

$3.49

$

Usually ships in 3-10 days

0

501 42 65-02

Husqvarna 501426502

FUEL HOSE

$23.99

$

In Stock, only 4 left!

0

503 21 06-16

Husqvarna 503210616

SCREW
(Superseded to 503214972)

$10.99

$

In Stock, Qty 20+

0

501 80 91-05

Husqvarna 501809105

TANK UNIT CPL.

$159.99

$

In Stock, only 3 left!

0

501 91 66-02

Husqvarna 501916602

LEVER

$12.99

$

Usually ships in 3-10 days

0

725 32 24-05

Husqvarna 725322405

$

$

Currently unavailable

501 81 47-01

Husqvarna 501814701

ANTIVIBE ELEMENT
(Superseded to 501814702)

$17.99

$

In Stock, Qty 5

0

503 73 12-01

Husqvarna 503731201

SPRING
(Superseded to 503786301)

$7.99

$

In Stock, Qty 5

0

503 26 30-17

Husqvarna 503263017

O-RING

$8.99

$

In Stock, Qty 20+

0

503 51 48-01

Husqvarna 503514801

ABSORBER

Note: HARD

$24.99

$

In Stock, Qty 10

0

503 21 05-25

Husqvarna 503210525

SCREW

$5.99

$

Usually ships in 3-10 days

0

501 87 25-01

Husqvarna 501872501

TANK VALVE

$17.99

$

In Stock, only 1 left!

0

725 53 27-56

Husqvarna 725532756

SCREW MC6S 5X12
(Superseded to 725532755)

$6.49

$

In Stock, Qty 12

0

503 60 04-01

Husqvarna 503600401

FILTER PLUG

$7.49

$

In Stock, Qty 10

0

501 52 88-01

Husqvarna 501528801

SPRING

$6.99

$

In Stock, Qty 6

0

501 91 70-01

Husqvarna 501917001

BRACKET

$45.99

$

Usually ships in 3-10 days

0
