288 XP - Husqvarna Chainsaw CARBURETOR & AIR FILTER Parts Diagram

Chainsaw

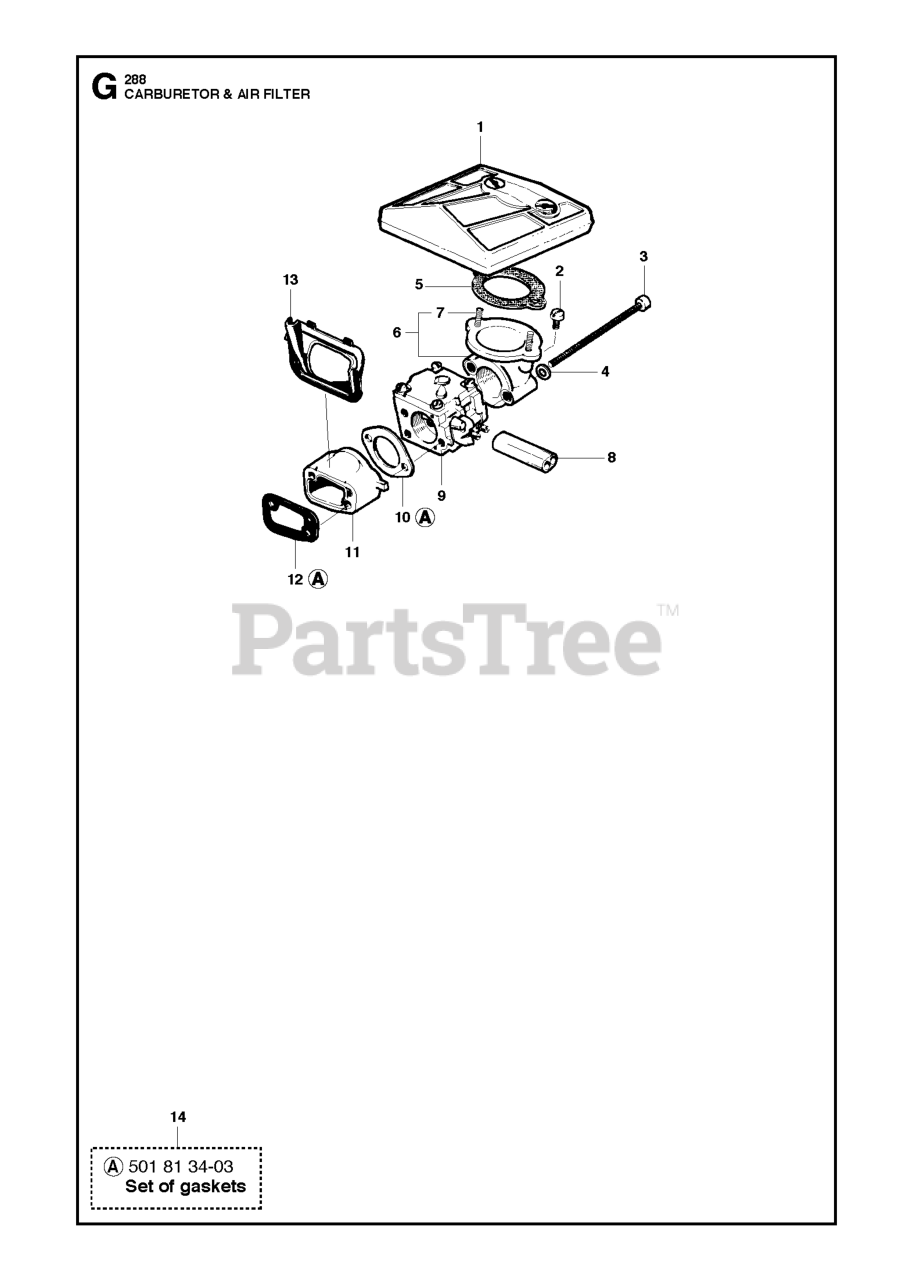

CARBURETOR & AIR FILTER Parts Diagram

  • Title

6

Husqvarna 501806202

AIR FILTER ATTACHMENT

$

$

Not available

13

Husqvarna 501811801

SEALING COLLAR

$6.99

$

In Stock, only 2 left!

0

4

Husqvarna 735114650

SPRING WASHER 5.3X10

$1.99

$

In Stock, only 1 left!

0

1

Husqvarna 501807105

AIR FILTER - FELT

Note: FELT

$47.99

$

In Stock, only 2 left!

0

14

Husqvarna 501813403

GASKET KIT

Note: A = Set of gaskets

$

$

Not available

7

Husqvarna 503208006

STUD 5X22

$

$

Not available

2

Husqvarna 503200710

SCREW M5 X 10

$4.99

$

In Stock, Qty 20+

0

1

Husqvarna 501807101

AIR FILTER

Note: 80 µ

$47.99

$

In Stock, only 2 left!

0

8

Husqvarna 501806901

SLEEVE

$7.49

$

In Stock, Qty 13

0

11

Husqvarna 501806602

SPACER

$

$

Not available

9

Husqvarna 501355301

CARBURETOR

Note: WJ 117

$

$

Not available

1

Husqvarna 501807106

AIR FILTER

Note: 44 µ

$26.99

$

In Stock, only 2 left!

0

12

Husqvarna 501806802

GASKET

$4.99

$

In Stock, only 2 left!

0

5

Husqvarna 501815601

GASKET

$4.99

$

In Stock, Qty 20+

0

3

Husqvarna 503202191

SCREW

$5.99

$

Usually ships in 3-10 days

0

10

Husqvarna 501296402

GASKET

$3.99

$

In Stock, only 1 left!

0
