288 XP - Husqvarna Chainsaw FUEL TANK & HANDLE Parts Diagram

Chainsaw

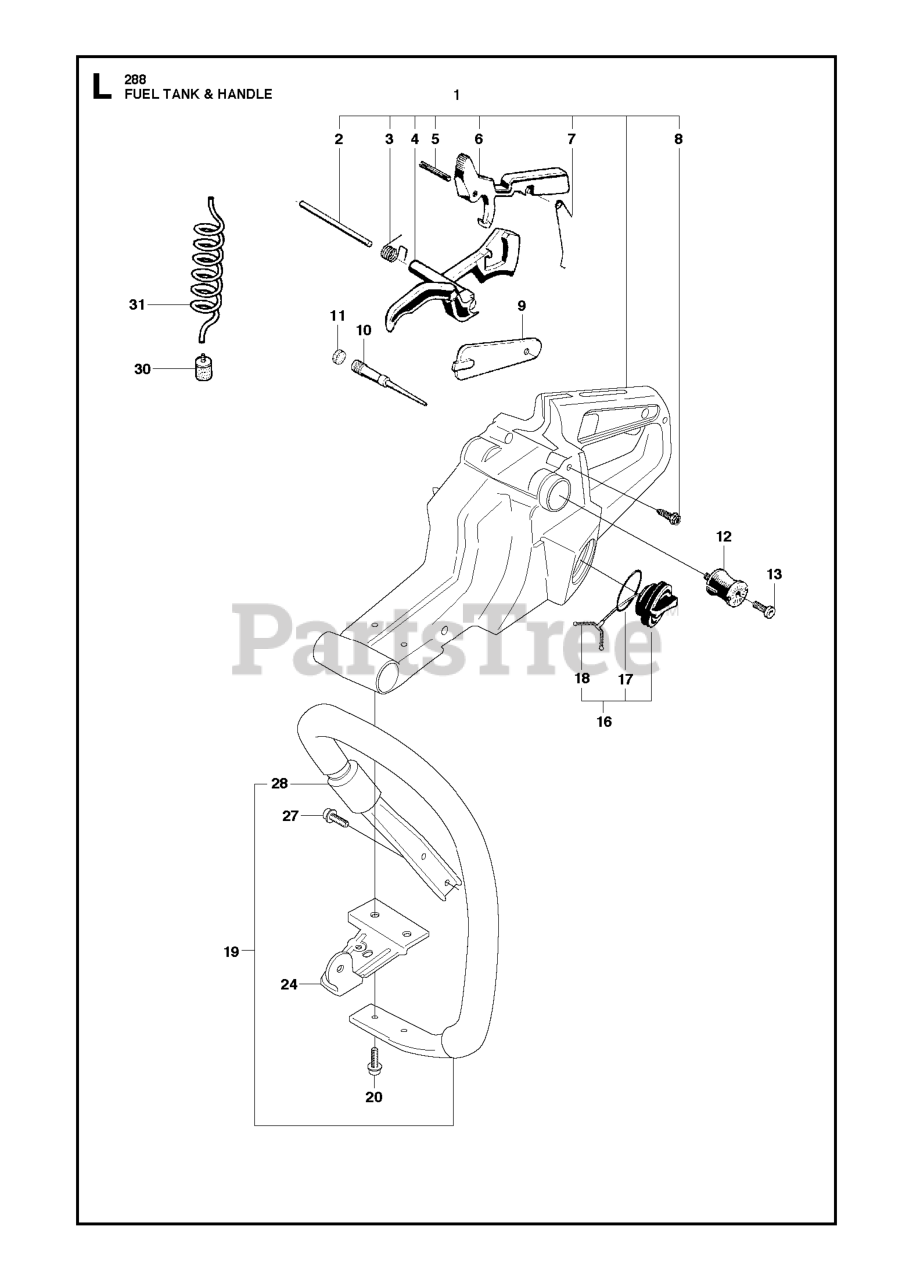

FUEL TANK & HANDLE Parts Diagram

  • Title

20

Husqvarna 503210522

SCREW

$5.49

$

In Stock, Qty 5

0

18

Husqvarna 503578901

TANK LOCK

$5.99

$

In Stock, Qty 10

0

6

Husqvarna 501817502

THROTTLE CATCH

$6.99

$

In Stock, only 2 left!

0

17

Husqvarna 589241101

SEALING

$6.99

$

In Stock, Qty 5

0

27

Husqvarna 503210522

SCREW

$5.49

$

In Stock, Qty 5

0

19

Husqvarna 501807505

FRONT HANDLE, STD

$

$

Not available

12

Husqvarna 501814702

ANTIVIBE ELEMENT

$11.99

$

In Stock, only 2 left!

0

30

Husqvarna 503517101

FUEL FILTER

$11.99

$

In Stock, only 2 left!

0

28

Husqvarna 501918902

SUPPORT

$7.99

$

Usually ships in 3-10 days

0

4

Husqvarna 501916602

LEVER

$9.49

$

Usually ships in 3-10 days

0

5

Husqvarna 721421226

SPRING PIN 3X24

$

$

Not available

16

Husqvarna 537215207

TANK CAP
(Superseded to 537215202)

$11.99

$

In Stock, Qty 16

0

10

Husqvarna 501872501

TANK VALVE

$11.99

$

Usually ships in 3-10 days

0

13

Husqvarna 725532755

SCREW MC6S 5X12

$3.49

$

In Stock, Qty 12

0

8

Husqvarna 503214972

SCREW IHSCFT PW5.5X16 8.8 ZN/

$4.99

$

In Stock, Qty 20+

0

2

Husqvarna 501519701

SHAFT

$3.49

$

In Stock, only 1 left!

0

31

Husqvarna 581756201

FUEL HOSE
(Superseded to 581756205)

$13.99

$

In Stock, Qty 12

0

7

Husqvarna 503786301

SPRING, THROTTLE LOCK

$3.49

$

In Stock, only 2 left!

0

11

Husqvarna 503600401

FILTER PLUG

$6.99

$

In Stock, only 2 left!

0

3

Husqvarna 501528801

SPRING

$3.49

$

In Stock, only 2 left!

0

9

Husqvarna 503484501

HANDLE FILLER
(Superseded to 537033401)

$9.49

$

In Stock, Qty 6

0

24

Husqvarna 501917001

BRACKET

$

$

Not available

1

Husqvarna 501809105

TANK UNIT CPL.

$79.99

$

In Stock, only 1 left!

0
