288702-1108-E1 - Briggs & Stratton Vertical Engine Piston, Ring, Connecting Rod Parts Diagram

Vertical Engine

Piston, Ring, Connecting Rod Parts Diagram

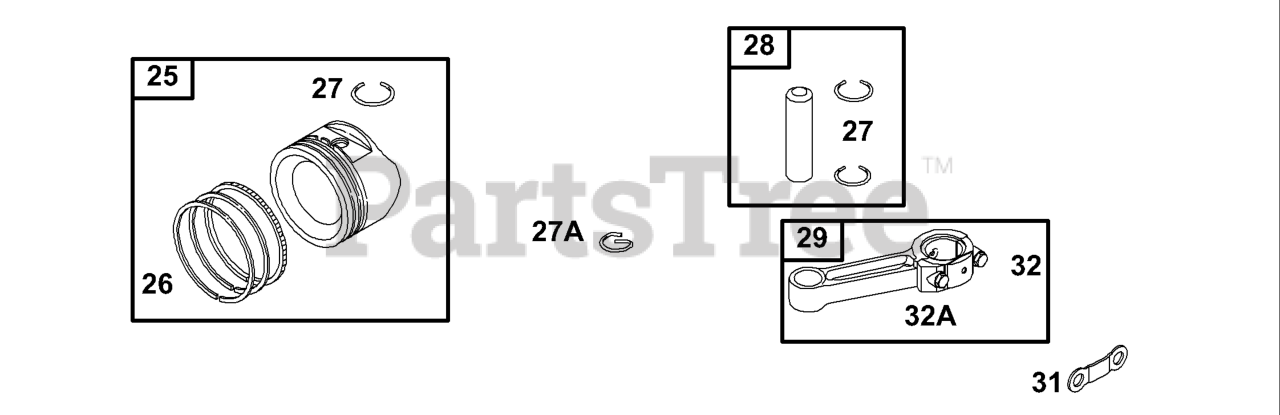

  • Title

25

Briggs & Stratton 499284

Piston Assembly

Note: (Standard)

$

$

Not available

25

Briggs & Stratton 499292

Piston Assembly

Note: (.020" Oversize)

$

$

Not available

26

Briggs & Stratton 392331

Ring Set

Note: (Standard)(Chrome)

$

$

Not available

26

Briggs & Stratton 499996

Ring Set

Note: (Standard)

$64.99

$

In Stock, Qty 8

0

26

Briggs & Stratton 499998

Ring Set

Note: (.020" Oversize)

$73.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 691299

Lock-Piston Pin

Note: Used After Code Date 95101500

$5.49

$

Usually ships in 2-12 days

0

27A

Briggs & Stratton 691792

Lock-Piston Pin

Note: Used Before Code Date 95101600

$5.49

$

In Stock, only 2 left!

0

28

Briggs & Stratton 299691

Pin-Piston

Note: (Standard) Used Before Code Date 95101600

$19.99

$

In Stock, only 1 left!

0

28

Briggs & Stratton 391286

Pin-Piston

Note: (.005" Oversize) Used Before Code Date 95101600

$

$

Not available

28

Briggs & Stratton 498319

Pin-Piston

Note: (Standard) Used After Code Date 95101500

$19.99

$

In Stock, only 1 left!

0

28

Briggs & Stratton 498320

Pin-Piston

Note: (.005" Oversize) Used After Code Date 95101500

$

$

Not available

29

Briggs & Stratton 494504

Rod-Connecting
(Superseded to 494504S)

Note: (Standard)

$103.99

$

In Stock, only 3 left!

0

29

Briggs & Stratton 495490

Rod-Connecting

Note: (.020" Undersize)

$

$

Not available

31

Briggs & Stratton 222299

Lock-Rod Screw

$

$

Not available

32

Briggs & Stratton 690356

Screw
(Superseded to 791118)

Note: (Connecting Rod) (1 7/8" Long)

$4.99

$

In Stock, only 2 left!

0

32A

Briggs & Stratton 690348

Screw
(Superseded to 690352)

Note: (Connecting Rod) (1 5/8" Long)

$7.49

$

In Stock, only 1 left!

0
