2890 (31AH74P4766) - Troy-Bilt Storm Tracker 28" Track Drive Snow Thrower (2015) Drive System Parts Diagram

Storm Tracker 28" Track Drive Snow Thrower

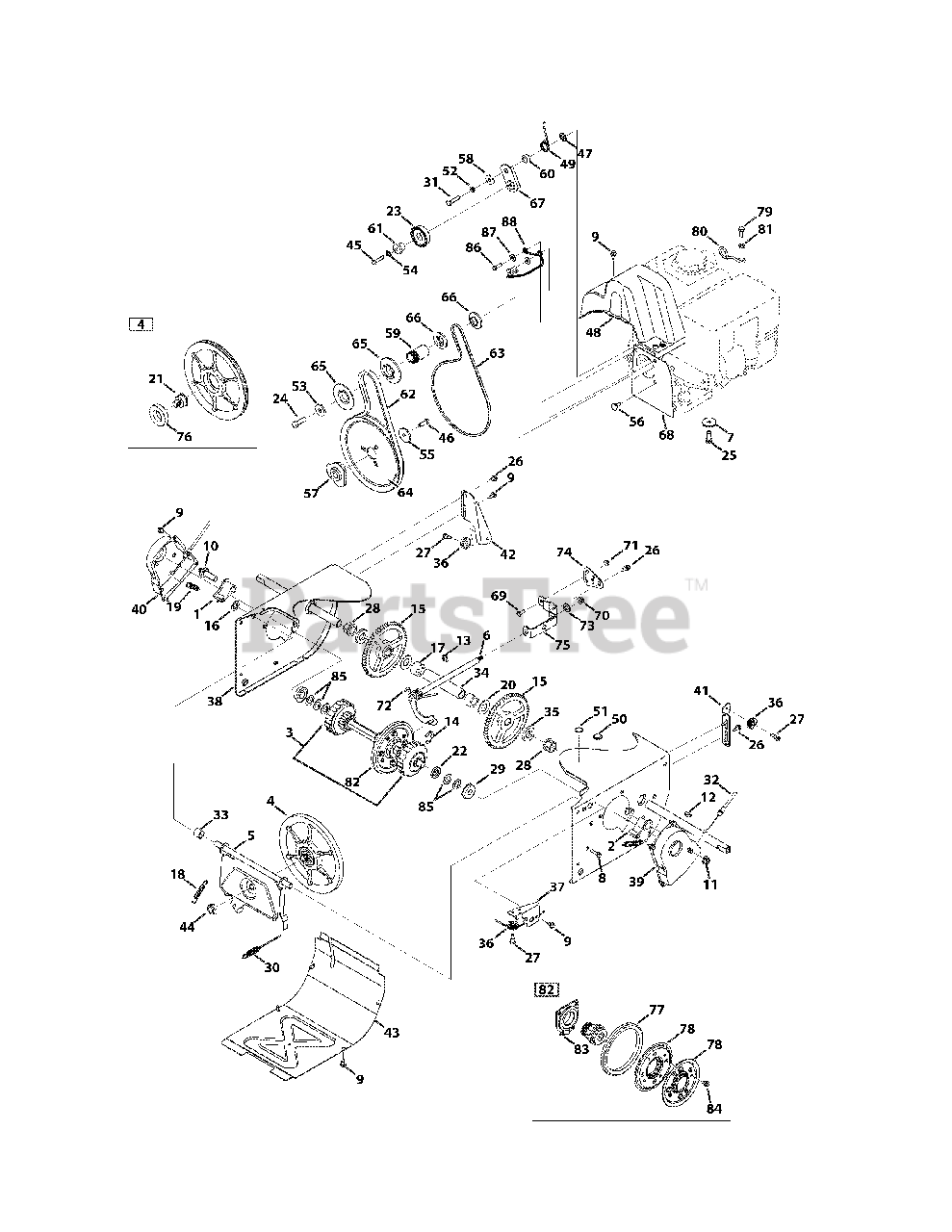

Drive System Parts Diagram

  • Title

1

Troy-Bilt 618-06987

Dogg Assembly, RH

$21.99

$

In Stock, only 2 left!

0

2

Troy-Bilt 618-06988

Dogg Assembly, LH

$21.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 918-06072

Drive Shaft Assembly

$444.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 656-04055

Friction Wheel Disc Assembly
(Superseded to 656-04055A)

$59.99

$

In Stock, only 2 left!

0

5

Troy-Bilt 684-04154B-0637

Friction Wheel Support

$41.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 684-04156A

Rod Shift Assembly

$61.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 736-0320

Washer, Flat, .38 x 1.38

$6.99

$

In Stock, Qty 8

0

8

Troy-Bilt 710-0788

Screw, 1/4-20 x 1.000

$7.49

$

In Stock, only 4 left!

0

9

Troy-Bilt 710-1652

Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 711-1268B

Actuator Shaft

$10.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 712-04065

Nut, Flangelock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 914-0126

Hi-Pro Key, 3/16 x 3/4 DIA
(Superseded to 714-0126)

$4.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 916-0104

E-Ring

$3.99

$

In Stock, Qty 17

0

14

Troy-Bilt 716-0136

Retainer Ring

$8.99

$

In Stock, Qty 9

0

15

Troy-Bilt 917-04210

Gear, 56T

$79.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 726-0221

Nut, Speed, .500

$6.49

$

In Stock, only 2 left!

0

17

Troy-Bilt 731-05297

Spacer, .76 x .75

$9.99

$

In Stock, only 2 left!

0

18

Troy-Bilt 932-0264

Extension Spring, .380 x 2.500

$4.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 732-04345

Extension Spring, .500 x 1.71

$10.99

$

In Stock, only 1 left!

0

20

Troy-Bilt 736-0188

Washer, Flat, .76 x 1.49

$4.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 738-04164A

Friction Pin, Disc Bearing

$24.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 750-06087

Spacer, .68 ID x 1.25 OD x .20

$4.49

$

In Stock, only 2 left!

0

23

Troy-Bilt 684-04169

Pulley Assembly

$34.99

$

Usually ships in 3-6 days

0

24

Troy-Bilt 710-0191

Hex Head Screw, 3/8-24 x 1.25

$4.99

$

In Stock, Qty 8

0

25

Troy-Bilt 710-0654A

Taptite Sems Screw, 3/8-16 x 1.000

$4.49

$

In Stock, only 4 left!

0

26

Troy-Bilt 738-04184A

Screw, Shoulder, .368 x .113 x 1/4-20

$6.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 738-0924A

C Screw, Shoulder, .340 x .335 x 1/4-28

$6.99

$

In Stock, Qty 6

0

28

Troy-Bilt 941-0245

Hex Flange Bearing, .75 ID

$9.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 941-0563

Ball Bearing, 17 x 40 x 12

$36.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 946-05067

Drive Clutch Cable

$25.99

$

In Stock, Qty 13

0

31

Troy-Bilt 710-0672

Hex Head Screw, 5/16-24 x 1.25

$4.49

$

In Stock, Qty 20+

0

32

Troy-Bilt 946-0956C

Steering Cable

$23.99

$

In Stock, Qty 8

0

33

Troy-Bilt 748-0190

Spacer, .508 x .75

$6.49

$

In Stock, only 1 left!

0

34

Troy-Bilt 750-04474

Axle Support Tube

$42.99

$

In Stock, only 1 left!

0

35

Troy-Bilt 750-0767

Spacer, Axle

$5.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 756-0625

Roller Cable

$9.49

$

In Stock, Qty 20+

0

37

Troy-Bilt 790-00096A-0637

Auger Cable Guide Bracket
(Superseded to 790-00096B-0637)

$9.49

$

In Stock, only 1 left!

0

38

Troy-Bilt 790-00183C-0638

Wheel Drive Frame
(Superseded to 790-00183E-0638)

$98.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 790-00527-0638

Shaft Retainer, LH

$28.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 790-00528-0638

Shaft Retainer, RH

$28.99

$

Usually ships in 3-6 days

0

41

Troy-Bilt 790-00206A-0637

Auger Clutch Cable Guide Bracket
(Superseded to 790-00206B)

$8.49

$

In Stock, only 1 left!

0

42

Troy-Bilt 790-00207C

Drive Clutch Cable Guide Bracket
(Superseded to 790-00207D)

$5.49

$

In Stock, only 3 left!

0

43

Troy-Bilt 790-00316-0638

Frame Cover

$47.99

$

In Stock, only 1 left!

0

44

Troy-Bilt 712-0417A

Nut, Flange, 5/8-18

$6.99

$

In Stock, Qty 20+

0

45

Troy-Bilt 710-0809

Taptite Screw, 1/4-20 x 1.250

$6.99

$

In Stock, Qty 20+

0

46

Troy-Bilt 710-1245B

Hex Head Screw, 5/16-24 x .875

$8.49

$

In Stock, only 4 left!

0

47

Troy-Bilt 926-04012

Nut, Push-On, .25 DIA
(Superseded to 726-04012)

$

$

Not available

48

Troy-Bilt 731-06401

Belt Cover, 4-Way lrg. block
(Superseded to 753-09065)

$27.99

$

In Stock, only 1 left!

0

49

Troy-Bilt 732-04308C

Spring, Torsion, .850 x .333

$5.49

$

In Stock, Qty 12

0

50

Troy-Bilt 735-04099

Plug, 3/8 ID

$5.99

$

Usually ships in 3-6 days

0

51

Troy-Bilt 735-04100

Plug, 1/2 ID

$5.99

$

Usually ships in 3-6 days

0

52

Troy-Bilt 936-0119

Washer, Lock, 5/16

$4.99

$

In Stock, Qty 20+

0

53

Troy-Bilt 736-3082A

Washer, Flat, .45 x 1.5

$9.99

$

In Stock, Qty 17

0

54

Troy-Bilt 936-0329

Washer, Lock, 1/4

$4.49

$

In Stock, Qty 12

0

55

Troy-Bilt 736-0505

Washer, Flat, .34 x 1.50

$6.49

$

In Stock, Qty 6

0

56

Troy-Bilt 738-04439

Screw, Shoulder

$3.99

$

In Stock, Qty 7

0

57

Troy-Bilt 748-04053A

Pulley Adapter, .75 DIA

$22.99

$

In Stock, only 1 left!

0

58

Troy-Bilt 748-04112B

Spacer, Shoulder, .3175 x .500

$4.49

$

In Stock, only 1 left!

0

59

Troy-Bilt 750-04303

Spacer, .875 x 1.185

$17.99

$

In Stock, only 1 left!

0

60

Troy-Bilt 750-04477A

Spacer, .340 x .750

$5.49

$

In Stock, Qty 6

0

61

Troy-Bilt 750-04571

Spacer, Shoulder, .260 x .785

$6.99

$

In Stock, Qty 6

0

62

Troy-Bilt 954-04195A

Auger Drive Belt, 4-Way lrg. block

$34.99

$

In Stock, Qty 20+

0

63

Troy-Bilt 954-05019

V Belt, 3L x 36.64"

$22.99

$

In Stock, only 3 left!

0

64

Troy-Bilt 756-04109

Auger Pulley, 8.1 x .5

$54.99

$

In Stock, only 3 left!

0

65

Troy-Bilt 756-04113

Pulley, Half, 4L-V x 2.600

$3.99

$

In Stock, only 4 left!

0

66

Troy-Bilt 756-04114

Pulley, Half, 3/8-V x 2.2

$13.99

$

Usually ships in 3-6 days

0

67

Troy-Bilt 790-00208D

Drive Idler Bracket

$8.99

$

In Stock, only 2 left!

0

68

Troy-Bilt 790-00332-0637

Cover Plate, 4-Way lrg. block

$

$

Not available

69

Troy-Bilt 710-0751

Hex Head Screw, 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

70

Troy-Bilt 712-04063

Nut, Flangelock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

71

Troy-Bilt 712-04064

Nut, Flangelock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

72

Troy-Bilt 732-04311A

Spring, Torsion, .750 x .968

$10.99

$

In Stock, only 1 left!

0

73

Troy-Bilt 936-3015

Washer, Flat, .469 x .875 x .105

$4.49

$

In Stock, only 3 left!

0

74

Troy-Bilt 790-00217A-0637

Speed Selector Pivot Bracket
(Superseded to 790P01117)

$53.99

$

In Stock, only 1 left!

0

75

Troy-Bilt 790-00218A-0637

Speed Selector Shift Bracket
(Superseded to 790-00218A)

$47.99

$

In Stock, only 1 left!

0

76

Troy-Bilt 741-04098

Ball Bearing, 30 x 55 x 13

$21.99

$

Usually ships in 3-6 days

0

77

Troy-Bilt 935-04054

Friction Wheel, 5.5 OD
(Superseded to 935-04054A)

$39.99

$

In Stock, Qty 8

0

78

Troy-Bilt 790-00174C

Friction Wheel Plate

$14.99

$

Usually ships in 3-6 days

0

79

Troy-Bilt 710-1681

Hex Head Screw, 1.25 x 20

$5.99

$

Usually ships in 3-6 days

0

80

Troy-Bilt 732-04677

Cable Guide

$8.99

$

Usually ships in 3-6 days

0

81

Troy-Bilt 936-0264

Washer, Flat, .330 x .630

$6.99

$

In Stock, Qty 11

0

82

Troy-Bilt 684-04153C

Friction Wheel Assembly

$101.99

$

In Stock, Qty 8

0

83

Troy-Bilt 618-0063A

Bearing Assembly, Friction Wheel

$92.99

$

Usually ships in 3-6 days

0

84

Troy-Bilt 710-04484

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

85

Troy-Bilt 736-05031

Flat Washer, .67 x 1.174 x .02

$3.49

$

Usually ships in 3-6 days

0

86

Troy-Bilt 710-0117A

Hex Head Screw, 5/16-24 x 1.00

$5.49

$

Usually ships in 3-6 days

0

87

Troy-Bilt 936-0159

Washer, Flat, .349 x .879
(Superseded to 736-0159)

$

$

Not available

88

Troy-Bilt 747-06336A

Belt Guide

$

$

Not available
