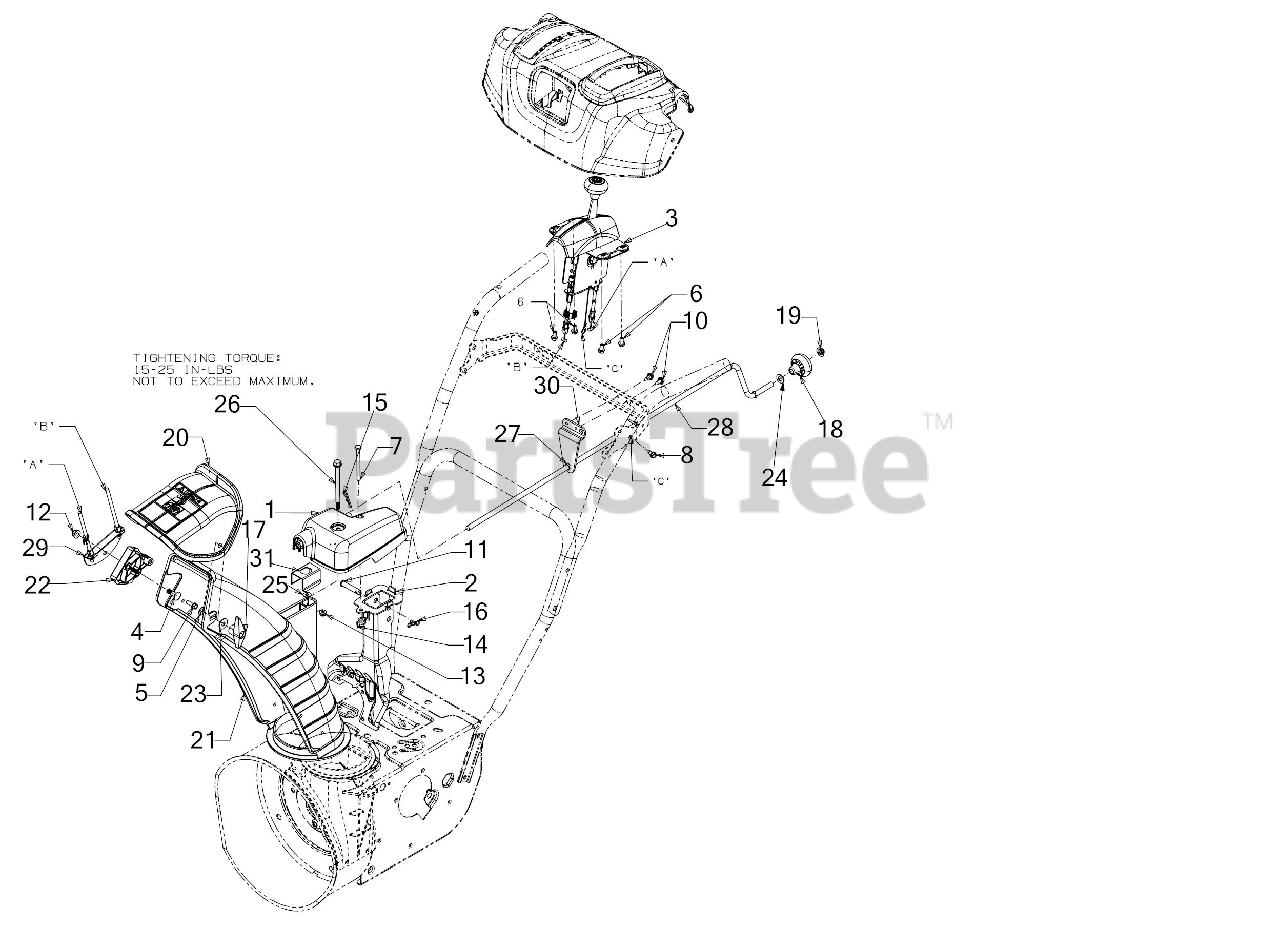

2890 (31AH7FP4766) - Troy-Bilt Storm Tracker 28" Track Drive Snow Thrower (2018) Chute Parts Diagram

Storm Tracker 28" Track Drive Snow Thrower

Chute Parts Diagram

  • Title

1

Troy-Bilt 918-04933B

WORM GEARBOX ASSEMBLY

Note: (See Separate Breakdown)

$93.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 684-04311A-0637

CHUTE SUPPORT BRACKET ASSEMBLY

$42.99

$

Usually ships in 3-6 days

0

3

Troy-Bilt 984-04325A

2-WAY TALL CHUTE CONTROL ASSEMBLY

Note: (See Separate Breakdown)

$98.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 710-0262

CARRIAGE BOLT 5/16-18 x 1.50

$3.99

$

In Stock, Qty 14

0

5

Troy-Bilt 710-04071

CARRIAGE BOLT 5/16-18 x 1

$4.49

$

In Stock, Qty 16

0

6

Troy-Bilt 710-04187A

HEX SCREW 1/4-15 x .50

$6.99

$

In Stock, Qty 10

0

7

Troy-Bilt 710-04370

SCREW 1/4-20 x 3.0 GR5

$4.49

$

In Stock, only 1 left!

0

8

Troy-Bilt 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-0895

SCREW 1/4-15 x .750

$6.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 711-04469A

CLEVIS PIN 3/8 x 1.87

$5.99

$

In Stock, Qty 8

0

12

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 712-3087

WING NUT 1/4-20

$3.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 914-0101

INTERNAL COTTER PIN
(Superseded to 714-0101)

$

$

Not available

16

Troy-Bilt 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 920-0284

WING NUT KNOB
(Superseded to 720-0284)

$

$

Not available

17

Troy-Bilt 720-04072A

STAR KNOB 5/16

Note: (Not Shown)

$6.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 912-0429

HEX NUT
(Superseded to 712-0429)

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 720-04102

SHIFT KNOB

$6.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 926-0100

PUSH NUT
(Superseded to 726-0100)

$

$

Not available

20

Troy-Bilt 731-04427A

UPPER REMOTE CHUTE WITH LABEL
(Superseded to 731-04427B)

$16.99

$

In Stock, only 1 left!

0

21

Troy-Bilt 731-06440A

LOWER CHUTE 5" DIA

$51.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 731-06451

CABLE CHUTE GUIDE

$4.99

$

In Stock, only 1 left!

0

23

Troy-Bilt 936-0159

FLAT WASHER
(Superseded to 736-0159)

$

$

Not available

24

Troy-Bilt 936-0185

FLAT WASHER
(Superseded to 736-0185)

$3.99

$

In Stock, Qty 15

0

25

Troy-Bilt 736-04446

FLAT WASHER

$4.49

$

In Stock, Qty 6

0

26

Troy-Bilt 738-04367

SHOULDER SCREW

$4.99

$

In Stock, only 1 left!

0

27

Troy-Bilt 941-0475

BUSHING .380 ID

$4.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 747-05386-0637

CHUTE CRANK
(Superseded to 747-05386A-0637)

$31.99

$

In Stock, only 1 left!

0

29

Troy-Bilt 784-5594-0637

CABLE BRACKET

$11.99

$

In Stock, only 1 left!

0

30

Troy-Bilt 790-00341-0637

ROD SUPPORT BRACKET

$16.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 790-00503

CHUTE BRACKET

$6.49

$

In Stock, only 1 left!

0
