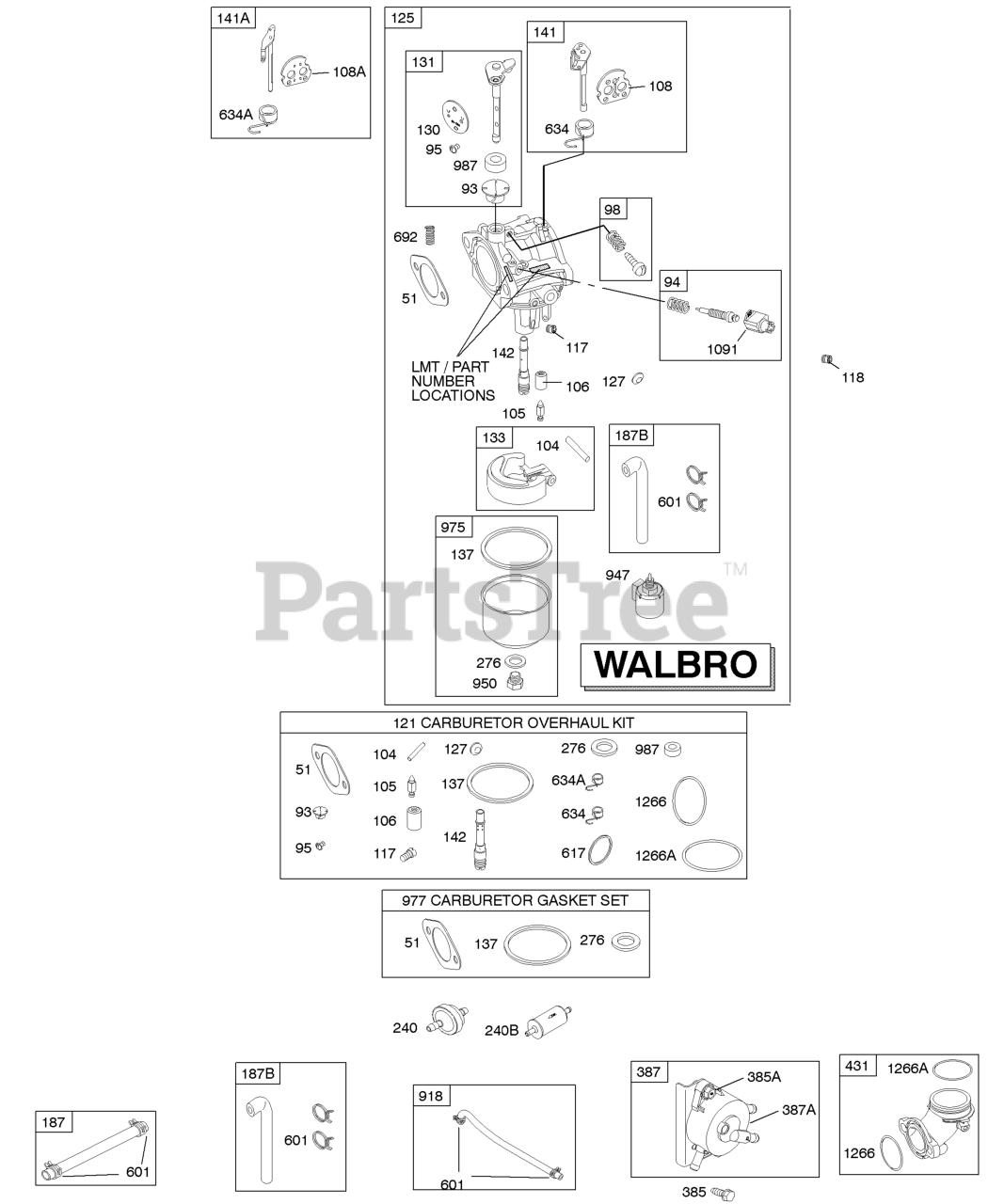

28AH77-0112-E1 - Briggs & Stratton Vertical Engine Carburetor, Fuel Supply, Kit - Carburetor Overhaul Parts Diagram

Vertical Engine

Carburetor, Fuel Supply, Kit - Carburetor Overhaul Parts Diagram

  • Title

51

Briggs & Stratton 692137

GASKET, Intake

$3.49

$

In Stock, Qty 19

0

93

Briggs & Stratton 690602

Bushing-Throttle Shaft

$9.49

$

In Stock, only 1 left!

0

94

Briggs & Stratton 498030

Kit-Idle Mixture
(Superseded to 794176)

$21.99

$

In Stock, only 1 left!

0

95

Briggs & Stratton 691636

Screw

Note: (Throttle Valve)

$3.99

$

In Stock, only 2 left!

0

98

Briggs & Stratton 495800

Kit-Idle Speed

$10.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 690525

Pin-Float Hinge

$4.99

$

Usually ships in 2-12 days

0

105

Briggs & Stratton 231855S

Valve-Float Needle

$6.99

$

In Stock, Qty 20+

0

106

Briggs & Stratton 691780

Seat-Inlet

Note: (Pump Feed Carburetor)

$10.99

$

In Stock, only 1 left!

0

108A

Briggs & Stratton 692344

Valve-Choke

$8.49

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 694352

Jet-Main

Note: (Standard)

$17.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 697228

Jet-Main

Note: (High Altitude)

$17.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 697241

Kit-Carb Overhaul

$43.99

$

In Stock, Qty 7

0

125

Briggs & Stratton 791888

Carburetor
(Superseded to 594593)

Note: (Walbro)(Gravity Feed)

$143.99

$

In Stock, Qty 17

0

127

Briggs & Stratton 695005

Plug-Welch

$4.99

$

In Stock, only 1 left!

0

130

Briggs & Stratton 691750

Valve-Throttle

$9.49

$

In Stock, only 1 left!

0

131

Briggs & Stratton 790901

Kit-Throttle Shaft

$38.99

$

In Stock, only 1 left!

0

133

Briggs & Stratton 494381

Float-Carburetor

$13.99

$

In Stock, Qty 10

0

137

Briggs & Stratton 281165S

Gasket-Float Bowl

$4.99

$

In Stock, Qty 20+

0

141A

Briggs & Stratton 790902

Kit-Choke Shaft

$33.99

$

In Stock, only 1 left!

0

142

Briggs & Stratton 697140

Nozzle-Carburetor

Note: (Standard)

$

$

Not available

187

Briggs & Stratton 791766

LINE, Fuel

Note: (Cut To Required Length)

$7.99

$

In Stock, Qty 20+

0

187B

Briggs & Stratton 791805

LINE, Fuel

Note: (Formed)(10-1/4" Long)(Cut to Required Length)

$24.99

$

In Stock, only 1 left!

0

240B

Briggs & Stratton 695666

Filter-Fuel
(Superseded to 845125)

Note: (Includes 30 Micron Paper Element)

$7.49

$

In Stock, Qty 20+

0

276

Briggs & Stratton 692255

Washer-Sealing

$5.49

$

In Stock, Qty 16

0

385

Briggs & Stratton 694476

Screw

Note: (Fuel Pump)

$3.99

$

In Stock, only 1 left!

0

385A

Briggs & Stratton 690297

Screw

Note: (Fuel Pump)

$3.49

$

In Stock, Qty 9

0

387

Briggs & Stratton 697090

Pump-Fuel

Note: (Includes Mounting Bracket)

$60.99

$

In Stock, only 4 left!

0

387A

Briggs & Stratton 808656

PUMP, Fuel
(Superseded to 597338)

$27.99

$

Usually ships in 2-12 days

0

431

Briggs & Stratton 697122

Elbow-Intake

$24.99

$

In Stock, only 1 left!

0

601

Briggs & Stratton 791850

CLAMP, Hose

$3.49

$

In Stock, Qty 20+

0

617

Briggs & Stratton 692138

SEAL, O-Ring

Note: (Intake Manifold)

$5.49

$

In Stock, Qty 13

0

634A

Briggs & Stratton 690802

Spring/Seal Assembly

$9.49

$

Usually ships in 2-12 days

0

692

Briggs & Stratton 690572

Spring-Detent
(Superseded to 590931)

$5.49

$

In Stock, only 1 left!

0

918

Briggs & Stratton 791851

Hose-Vacuum

Note: (Formed)(14 Inches Long)(Cut To Required Length)

$14.99

$

In Stock, only 1 left!

0

947

Briggs & Stratton 694393

Solenoid-Fuel

$81.99

$

In Stock, Qty 6

0

950

Briggs & Stratton 691657

Screw-Float Bowl

Note: (Bottom Of Bowl)

$7.99

$

Usually ships in 2-12 days

0

975

Briggs & Stratton 495933

Bowl-Float

$10.99

$

Usually ships in 2-12 days

0

977

Briggs & Stratton 690192

Gasket Set-Carburetor
(Superseded to 497535)

$67.99

$

In Stock, Qty 10

0

987

Briggs & Stratton 691326

Seal-Throttle Shaft

$5.49

$

In Stock, only 1 left!

0

1091

Briggs & Stratton 691333

Cap-Limiter

$9.49

$

Usually ships in 2-12 days

0

1266

Briggs & Stratton 691917

SEAL, O-Ring

Note: (Intake Elbow)

$4.49

$

In Stock, Qty 9

0

1266A

Briggs & Stratton 697123

Seal-O Ring

Note: (Intake Elbow)

$5.99

$

In Stock, only 1 left!

0
