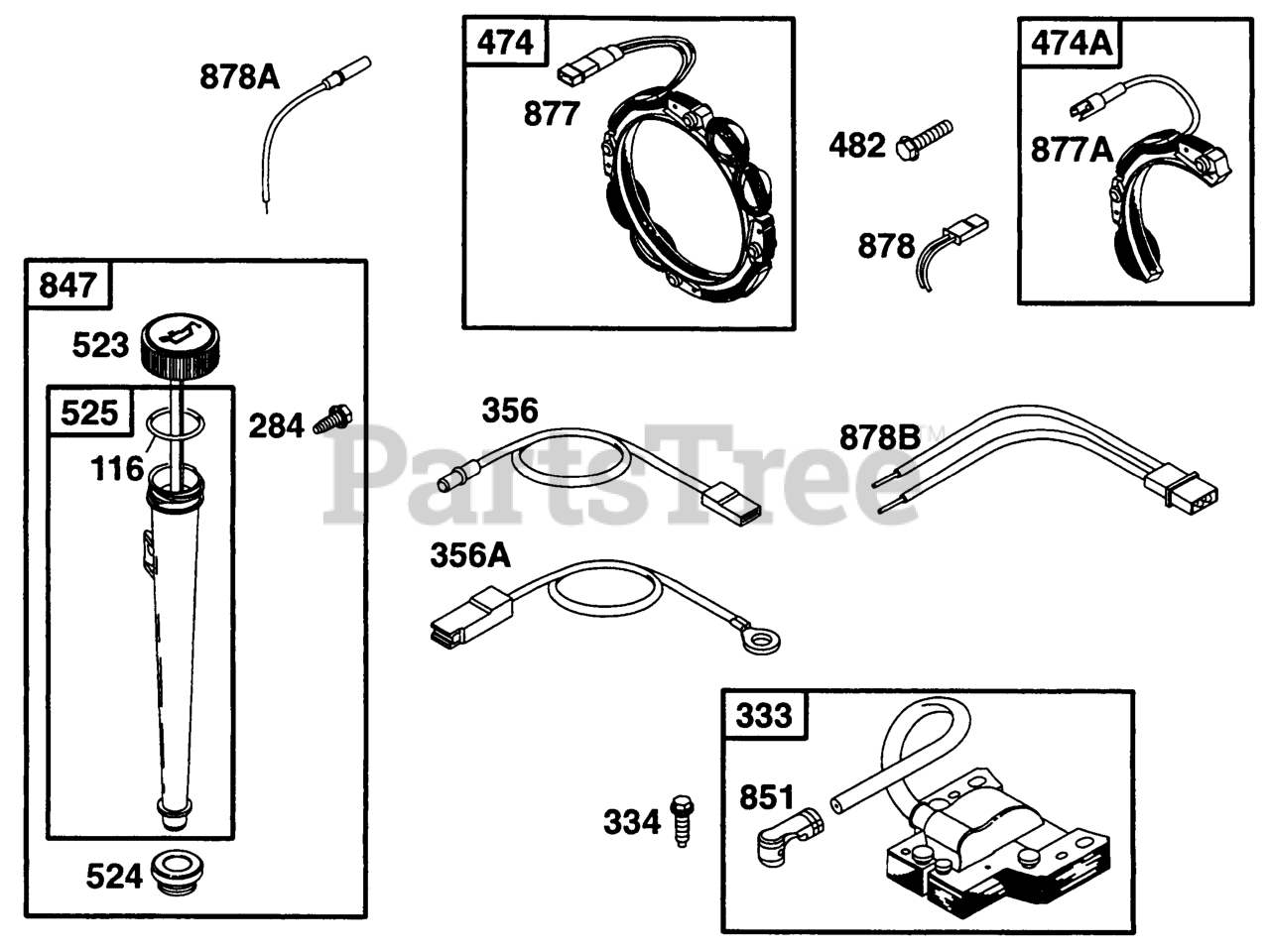

28C702-0015-01 - Briggs & Stratton Vertical Engine Oil Fill, Elect Parts Diagram

Vertical Engine

Oil Fill, Elect Parts Diagram

  • Title

116

Briggs & Stratton 270920

Seal, Oil Fill Tube
(Superseded to 691870)

Note: Included in Gasket Set-Part Number 494241

$4.49

$

Usually ships in 2-12 days

0

284

Briggs & Stratton 94073

Screw, Hex Washer H
(Superseded to 691002)

$8.49

$

In Stock, only 2 left!

0

333

Briggs & Stratton 492341

Armature-Magneto
(Superseded to 591459)

$53.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 94731

Screw, Hex Wash Hea
(Superseded to 691061)

$3.49

$

In Stock, Qty 17

0

356A

Briggs & Stratton 399223

Wire-Stop

$2.99

$

Usually ships in 2-12 days

0

356

Briggs & Stratton 494328

Wire-Stop
(Superseded to 690799)

$11.99

$

Usually ships in 2-12 days

0

474A

Briggs & Stratton 391529

Stator, Alternator (Dc Only)
(Superseded to 592828)

$124.99

$

Usually ships in 2-12 days

0

474

Briggs & Stratton 393474

Stator, Alternator (Dual-Circuit)
(Superseded to 592831)

$101.99

$

Usually ships in 2-12 days

0

482

Briggs & Stratton 93621

Screw, Tapping Hex
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0

523

Briggs & Stratton 495229

Dipstick
(Superseded to 692013)

$25.99

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 281370

Seal-Tube
(Superseded to 281370S)

Note: Included in Gasket Set-Part Number 494241

$8.49

$

In Stock, Qty 20+

0

525

Briggs & Stratton 496068

Tube-Oil Fill
(Superseded to 690841)

$22.99

$

Usually ships in 2-12 days

0

847

Briggs & Stratton 496367

Tube Assembly-Oil

$30.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 493880

Terminal-Cable
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

877A

Briggs & Stratton 393814

Alternator Connecto (Dc Only)

$18.99

$

In Stock, only 2 left!

0

877

Briggs & Stratton 393456

WIRE/CONNECTOR, Alternator

$20.99

$

In Stock, only 1 left!

0

878B

Briggs & Stratton 399916

Alternator Connecto (Regulated-16 Amp)

$12.99

$

Usually ships in 2-12 days

0

878A

Briggs & Stratton 393422

Socket/Wire Assy (Dc Only)
(Superseded to 692306)

$17.99

$

Usually ships in 2-12 days

0

878

Briggs & Stratton 393362

Harness, Alternator (Dual Circuit)
(Superseded to 398661)

$34.99

$

Usually ships in 2-12 days

0
