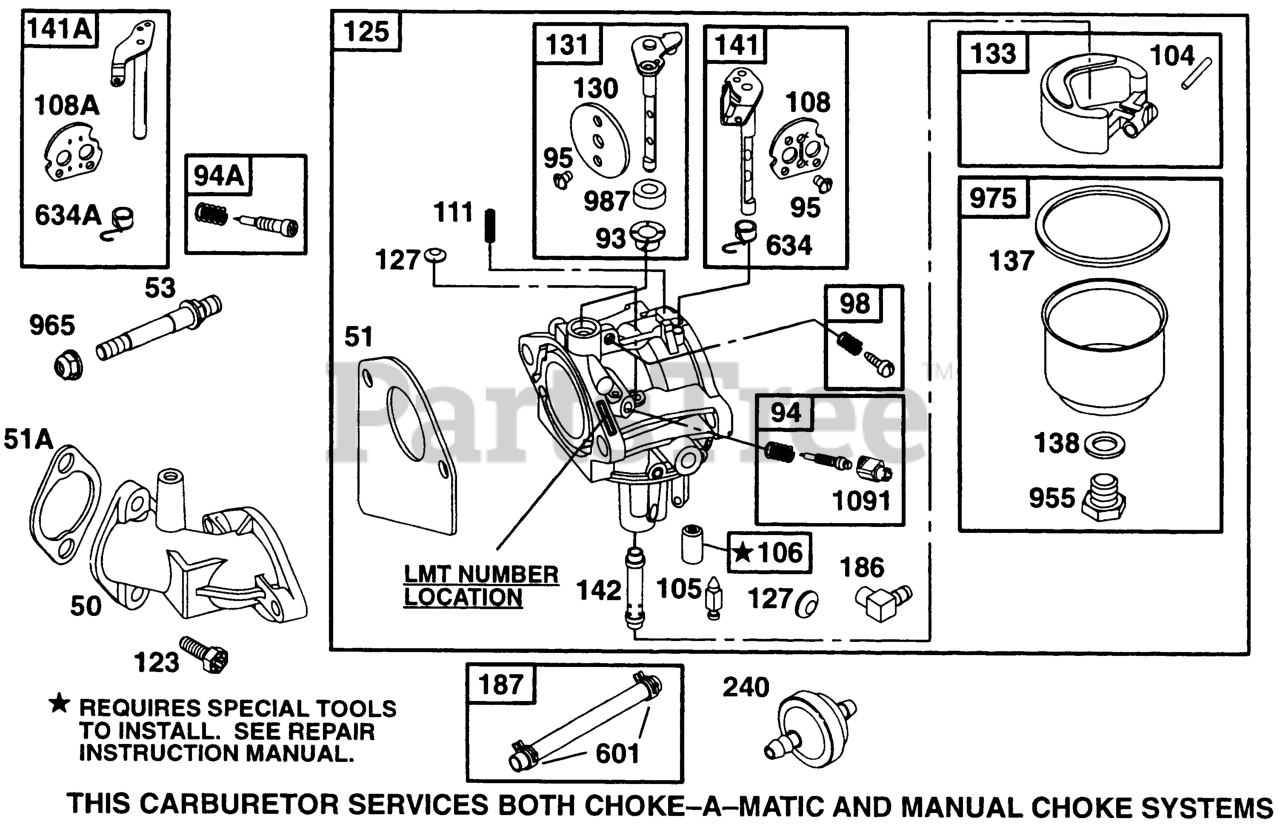

28F707-0298-01 - Briggs & Stratton Vertical Engine Carburetor Grp Parts Diagram

Vertical Engine

Carburetor Grp Parts Diagram

  • Title

50

Briggs & Stratton 213819

Manifold-Intake
(Superseded to 691711)

$64.99

$

Usually ships in 2-12 days

0

51A

Briggs & Stratton 272554

Gasket-Intake
(Superseded to 272554S)

Note: Included in Valve Overhaul Gasket Set-Part No. 498539. Included in Gasket Set-Part Number 494241

$5.49

$

In Stock, Qty 19

0

51

Briggs & Stratton 272465

Gasket, Carburetor
(Superseded to 692284)

Note: Included in Carburetor Kit-See Ref. No. 121. Included in Carburetor Gasket Set-Part No. 494385

$4.99

$

In Stock, Qty 11

0

53

Briggs & Stratton 94637

Stud-Hex. Drive
(Superseded to 690227)

$7.99

$

In Stock, Qty 12

0

93

Briggs & Stratton 281346

Bushing-Throttle Shaft
(Superseded to 690602)

$9.49

$

In Stock, only 1 left!

0

94A

Briggs & Stratton 494383

Kit-Idle Mixture (Lmt 71,101,102,113,114,116)

$13.99

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 498030

Kit-Idle Mixture (Lmt 153154,155,156)
(Superseded to 794176)

$21.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 94098

Screw, Round Washer
(Superseded to 691636)

Note: Included in Carburetor Kit-See Ref. No. 121

$3.99

$

In Stock, only 2 left!

0

98

Briggs & Stratton 495800

Screw-Idle Speed (Lmt 54, 55, 91)

$10.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 231789

Pin-Float Hinge
(Superseded to 690525)

Note: Included in Carburetor Kit-See Ref. No. 121

$4.99

$

Usually ships in 2-12 days

0

105

Briggs & Stratton 231855

Valve, Inlet (Lmt 54 55, 91)
(Superseded to 231855S)

Note: Included in Carburetor Kit-See Ref. No. 121

$6.99

$

In Stock, Qty 20+

0

106

Briggs & Stratton 231854

Seat, Inlet (Gravity Feed)
(Superseded to 690577)

Note: Included in Carburetor Kit-See Ref. No. 121

$7.99

$

In Stock, Qty 15

0

108A

Briggs & Stratton 224540

Valve, Choke (Choke-A-Matic)
(Superseded to 692344)

$8.49

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 224558

Valve, Choke (Lmt 155)
(Superseded to 690464)

$8.49

$

Usually ships in 2-12 days

0

111

Briggs & Stratton 262715

Spring, Choke
(Superseded to 590931)

$5.49

$

In Stock, only 1 left!

0

123

Briggs & Stratton 94616

Screw, Hex Head Tor (T/30)
(Superseded to 690953)

$5.99

$

In Stock, Qty 19

0

125

Briggs & Stratton 498027

Carburetor
(Superseded to 799728)

Note: (Gravity Feed, For Choke-A-Matic & Manual Choke)

$

$

Not available

127

No Nomenclature

Note: Included in Carburetor Kit-See Ref. No. 121

$

$

Not available

130

Briggs & Stratton 224539

Valve-Throttle
(Superseded to 691750)

$9.49

$

In Stock, only 1 left!

0

131

Briggs & Stratton 494379

Throttle Shaft Kit
(Superseded to 790901)

$38.99

$

In Stock, only 1 left!

0

133

Briggs & Stratton 494381

Float-Carburetor

$13.99

$

In Stock, Qty 9

0

137

Briggs & Stratton 281165

Gasket-Float Bowl
(Superseded to 281165S)

Note: Included in Carburetor Kit-See Ref. No. 121. Included in Carburetor Gasket Set-Part No. 494385

$4.99

$

In Stock, Qty 20+

0

138

Briggs & Stratton 281164

Washer-Seal
(Superseded to 692255)

Note: Included in Carburetor Kit-See Ref. No. 121. Included in Carburetor Gasket Set-Part No. 494385

$5.49

$

In Stock, Qty 15

0

141A

Briggs & Stratton 495931

Choke Shaft Kit (Choke-A-Matic)
(Superseded to 790902)

$33.99

$

In Stock, only 1 left!

0

141

Briggs & Stratton 495097

Choke Shaft Kit (Manual Choke, Lmt 28,31,55,91,155,156)
(Superseded to 790905)

$45.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 497566

Nozzle/Jet Assy
(Superseded to 691425)

Note: Included in Carburetor Kit-See Ref. No. 121 (LMT 1,2,3,4,5,6,7,37,38,39,40,41,77,78,79,80,81,157,158,160)

$29.99

$

In Stock, only 2 left!

0

142

Briggs & Stratton 497567

Nozzle-Carburetor

Note: (High Alt/LMT 1,2,3,4,5,6,7,37,38,39,40,41,77,78,79,80,81,157,158,159,160)

$22.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 497736

Nozzle/Jet Assy (Lmt 92,93,94,95,96)
(Superseded to 691434)

Note: Included in Carburetor Kit-See Ref. No. 121

$23.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 499040

Nozzle-Carburetor (High Altitude-Lmt 96,165,166,167,168)

$23.99

$

Usually ships in 2-12 days

0

186

Briggs & Stratton 493496

Connector-Hose
(Superseded to 692317)

$6.49

$

In Stock, Qty 20+

0

187

Briggs & Stratton 296004

Line-Fuel (23" Cut To Length)
(Superseded to 791745)

$10.99

$

In Stock, Qty 6

0

240

Briggs & Stratton 298090

Filter, Fuel
(Superseded to 298090S)

$

$

Not available

601

Briggs & Stratton 93053

Clamp, Hose (Green)
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

634A

Briggs & Stratton 494455

Spring & Seal Assem (Choke-A-Matic)
(Superseded to 690802)

Note: Included in Carburetor Kit-See Ref. No. 121

$9.49

$

Usually ships in 2-12 days

0

634

Briggs & Stratton 494453

Spring & Seal Assem (Manual Choke)
(Superseded to 690801)

Note: Included in Carburetor Kit-See Ref. No. 121

$8.49

$

In Stock, only 1 left!

0

955

Briggs & Stratton 94642

Screw, Hex Head
(Superseded to 691657)

$7.99

$

Usually ships in 2-12 days

0

965

Briggs & Stratton 94010

Nut, Hex
(Superseded to 690958)

$3.49

$

In Stock, Qty 7

0

975

Briggs & Stratton 494378

Bowl-Float
(Superseded to 495933)

$10.99

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 281166

Seal-Throttle Shaft
(Superseded to 691326)

Note: Included in Carburetor Kit-See Ref. No. 121

$5.49

$

In Stock, only 1 left!

0

1091

Briggs & Stratton 281364

Cap-Limiter
(Superseded to 691333)

$9.49

$

Usually ships in 2-12 days

0
