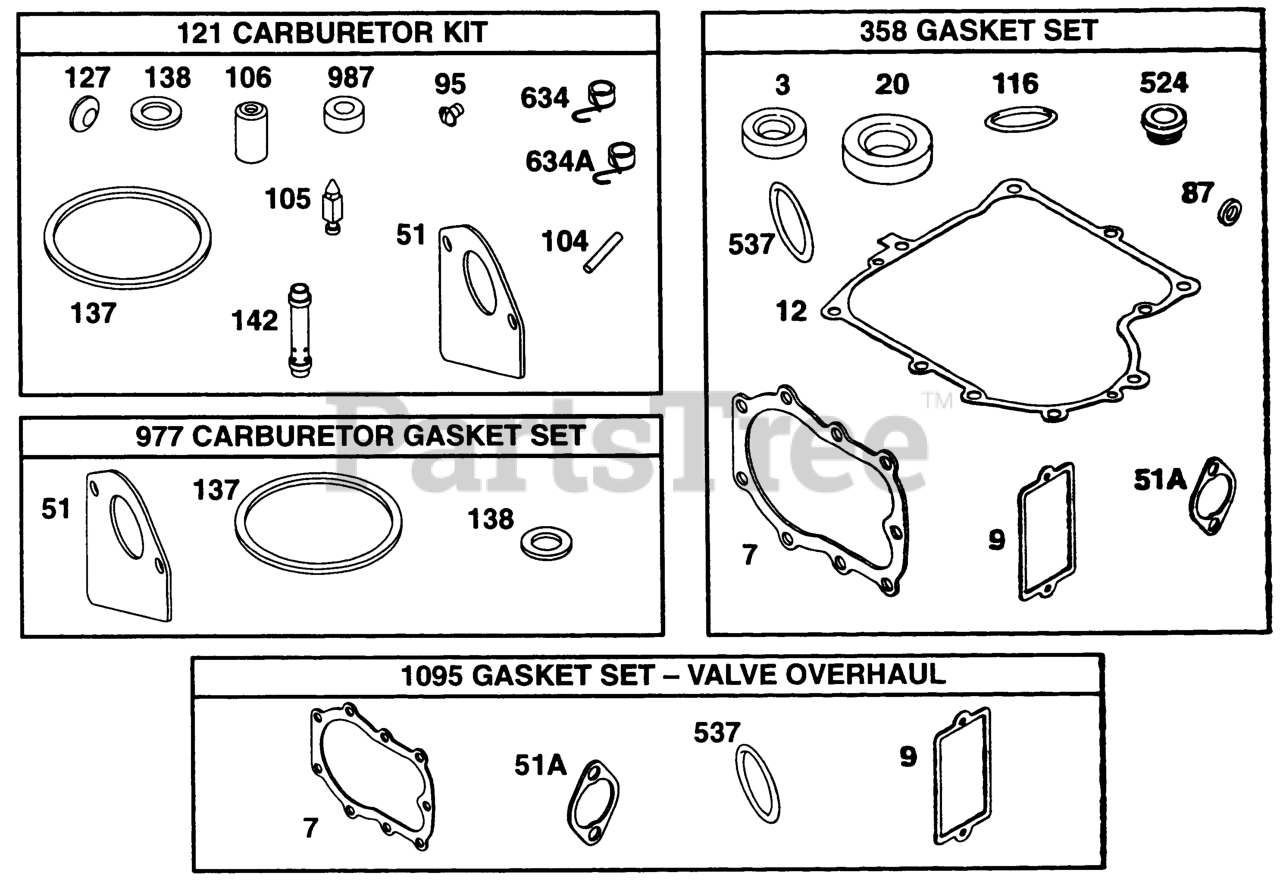

28F707-0298-01 - Briggs & Stratton Vertical Engine Kits/Gasket Sets Parts Diagram

Vertical Engine

Kits/Gasket Sets Parts Diagram

  • Title

3

Briggs & Stratton 391086

Seal-Oil
(Superseded to 391086S)

Note: Included in Gasket Set-Part Number 494241

$6.49

$

In Stock, Qty 20+

0

7

Briggs & Stratton 271866

Gasket-Cylinder Head
(Superseded to 271866S)

Note: Included in Valve Overhaul Gasket Set-Part No. 498539. Included in Gasket Set-Part Number 494241

$9.99

$

In Stock, only 4 left!

0

9

Briggs & Stratton 27803

Gasket-Valve Cover
(Superseded to 27803S)

Note: Included in Valve Overhaul Gasket Set-Part No. 498539. Included in Gasket Set-Part Number 494241

$4.49

$

In Stock, Qty 8

0

9

Briggs & Stratton 27803

Gasket-Valve Cover
(Superseded to 27803S)

Note: Included in Valve Overhaul Gasket Set-Part No.498539. Included in Gasket Set-Part Number 494241

$4.49

$

In Stock, Qty 8

0

12

Briggs & Stratton 271916

Gasket, Crankcase (.015")
(Superseded to 692226)

Note: Included in Gasket Set-Part Number 494241

$6.99

$

In Stock, Qty 5

0

12

Briggs & Stratton 271996

Gasket, Crankcase (.009" Thick)
(Superseded to 692405)

Note: Included in Gasket Set-Part Number 494241

$6.99

$

In Stock, Qty 9

0

12

Briggs & Stratton 271997

Gasket, Crankcase (.005" Thick)
(Superseded to 692406)

Note: Included in Gasket Set-Part Number 494241

$9.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 291675

Seal, Oil (Used In Crankcase Covers)
(Superseded to 291675S)

Note: Included in Gasket Set-Part Number 494241

$7.49

$

In Stock, only 3 left!

0

51A

Briggs & Stratton 272554

Gasket-Intake
(Superseded to 272554S)

Note: Included in Valve Overhaul Gasket Set-Part No. 498539. Included in Gasket Set-Part Number 494241

$5.99

$

In Stock, only 3 left!

0

51

Briggs & Stratton 272465

Gasket, Carburetor
(Superseded to 692284)

Note: Included in Carburetor Kit-See Ref. No. 121. Included in Carburetor Gasket Set-Part No. 494385

$4.99

$

In Stock, only 4 left!

0

87

Briggs & Stratton 491323

Seal, Governor Arm
(Superseded to 692407)

Note: Included in Gasket Set-Part Number 494241

$8.49

$

In Stock, Qty 7

0

95

Briggs & Stratton 94098

Screw, Round Washer
(Superseded to 691636)

Note: Included in Carburetor Kit-See Ref. No. 121

$4.49

$

In Stock, Qty 12

0

104

Briggs & Stratton 231789

Pin-Float Hinge
(Superseded to 690525)

Note: Included in Carburetor Kit-See Ref. No. 121

$5.49

$

In Stock, only 1 left!

0

105

Briggs & Stratton 231855

Valve, Inlet (Lmt 54 55, 91)
(Superseded to 231855S)

Note: Included in Carburetor Kit-See Ref. No. 121

$6.99

$

Usually ships in 2-12 days

0

106

Briggs & Stratton 231854

Seat, Inlet (Gravity Feed)
(Superseded to 690577)

Note: Included in Carburetor Kit-See Ref. No. 121

$6.99

$

In Stock, Qty 20+

0

116

Briggs & Stratton 270920

Seal, Oil Fill Tube
(Superseded to 691870)

Note: Included in Gasket Set-Part Number 494241

$4.49

$

In Stock, Qty 6

0

121

Briggs & Stratton 499220

Carburetor Kit
(Superseded to 497535)

Note: (LMT 92, 93, 94, 95, 96,108,111,162,165,169)

$58.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 499231

Carburetor Kit

Note: (LMT 97,99,133,135,136,157, 158, 159,160,166,167, 168)

$166.99

$

Usually ships in 2-12 days

0

127

No Nomenclature

Note: Included in Carburetor Kit-See Ref. No. 121

$

$

Not available

137

Briggs & Stratton 281165

Gasket-Float Bowl
(Superseded to 281165S)

Note: Included in Carburetor Kit-See Ref. No. 121. Included in Carburetor Gasket Set-Part No. 494385

$4.99

$

In Stock, Qty 20+

0

138

Briggs & Stratton 281164

Washer-Seal
(Superseded to 692255)

Note: Included in Carburetor Kit-See Ref. No. 121. Included in Carburetor Gasket Set-Part No. 494385

$5.99

$

In Stock, Qty 20+

0

142

Briggs & Stratton 497566

Nozzle/Jet Assy
(Superseded to 691425)

Note: Included in Carburetor Kit-See Ref. No. 121 (LMT 1,2,3,4,5,6,7,37,38,39,40,41,77,78,79,80,81,157,158,160)

$32.99

$

In Stock, only 1 left!

0

142

Briggs & Stratton 497567

Nozzle-Carburetor

Note: (High Alt/LMT 1,2,3,4,5,6,7,37,38,39,40,41,77,78,79,80,81,157,158,159,160)

$25.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 497736

Nozzle/Jet Assy (Lmt 92,93,94,95,96)
(Superseded to 691434)

Note: Included in Carburetor Kit-See Ref. No. 121

$

$

Not available

142

Briggs & Stratton 499040

Nozzle-Carburetor (High Altitude-Lmt 96,165,166,167,168)

$

$

Not available

358

Briggs & Stratton 494241

Gasket-Set

$40.99

$

In Stock, only 2 left!

0

524

Briggs & Stratton 281370

Seal-Tube
(Superseded to 281370S)

Note: Included in Gasket Set-Part Number 494241

$8.99

$

In Stock, Qty 5

0

537

Briggs & Stratton 281106

Seal-O
(Superseded to 691917)

Note: Included in Valve Overhaul Gasket Set-Part No. 498539. Included in Gasket Set-Part Number 494241

$4.49

$

In Stock, Qty 20+

0

634A

Briggs & Stratton 494455

Spring & Seal Assem (Choke-A-Matic)
(Superseded to 690802)

Note: Included in Carburetor Kit-See Ref. No. 121

$9.49

$

Usually ships in 2-12 days

0

634

Briggs & Stratton 494453

Spring & Seal Assem (Manual Choke)
(Superseded to 690801)

Note: Included in Carburetor Kit-See Ref. No. 121

$8.49

$

Usually ships in 2-12 days

0

977

Briggs & Stratton 494385

Gasket Set-Carburetor
(Superseded to 697241)

$45.99

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 281166

Seal-Throttle Shaft
(Superseded to 691326)

Note: Included in Carburetor Kit-See Ref. No. 121

$5.99

$

Usually ships in 2-12 days

0

1095

Briggs & Stratton 498539

Gasket Set-Valve Overhaul

$40.99

$

Usually ships in 2-12 days

0
