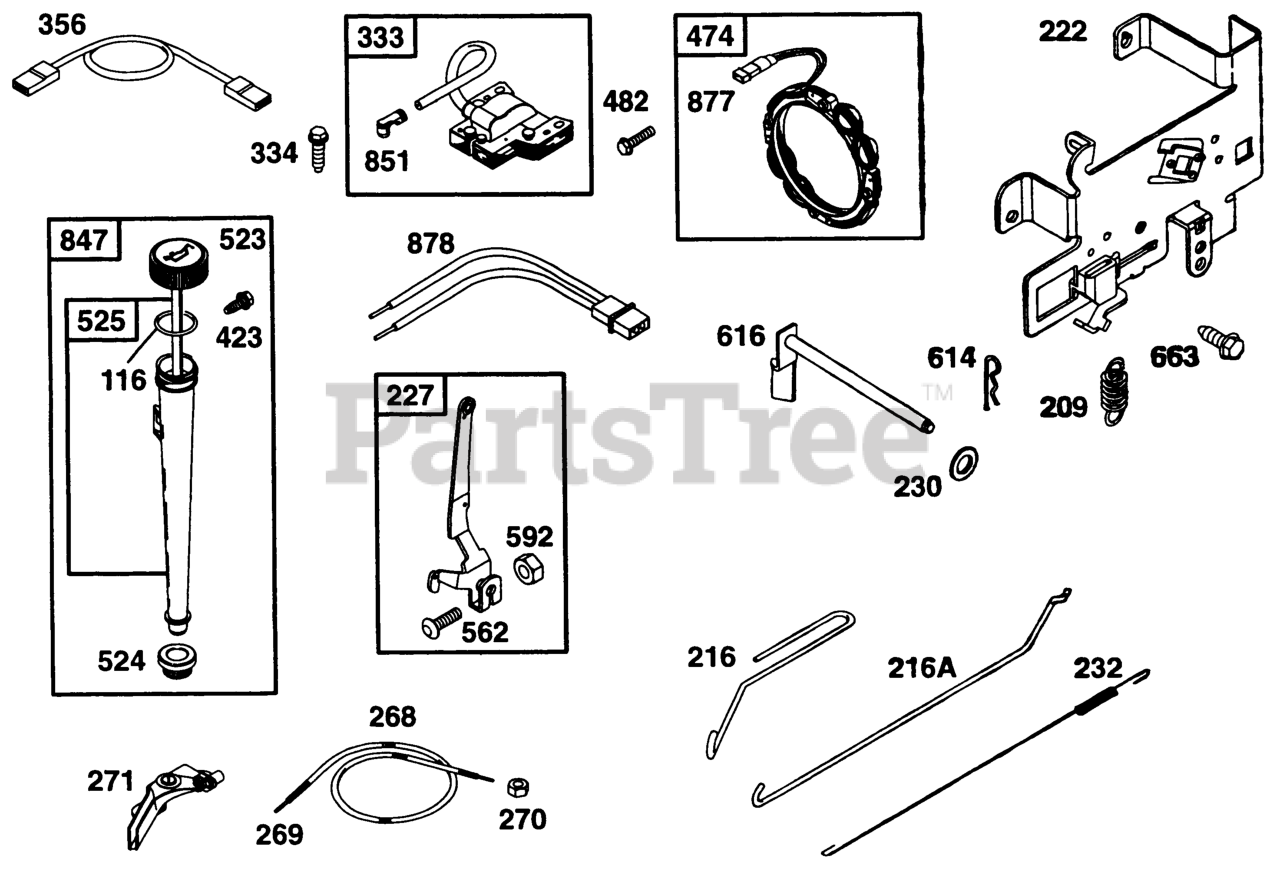

28F707-0298-01 - Briggs & Stratton Vertical Engine Oil Fill, Elect, Controls Parts Diagram

Vertical Engine

Oil Fill, Elect, Controls Parts Diagram

  • Title

116

Briggs & Stratton 270920

Seal, Oil Fill Tube
(Superseded to 691870)

Note: Included in Gasket Set-Part Number 494241

$4.49

$

In Stock, only 1 left!

0

209

Briggs & Stratton 260871

Spring, Governor (For 2700 To 3300 R.p.m.)
(Superseded to 792602)

$3.49

$

In Stock, Qty 5

0

216A

Briggs & Stratton 262767

Link-Mechanical Governor
(Superseded to 691841)

$9.49

$

In Stock, Qty 5

0

216

Briggs & Stratton 262766

Link-Choke
(Superseded to 691840)

$8.99

$

Usually ships in 2-12 days

0

222

Briggs & Stratton 495611

Plate, Control Assy (Choke A Matic)
(Superseded to 597209)

$38.99

$

In Stock, only 1 left!

0

227

Briggs & Stratton 493935

Lever-Governor
(Superseded to 691374)

$26.99

$

In Stock, Qty 6

0

230

Briggs & Stratton 94927

Washer, Plain
(Superseded to 691691)

$3.99

$

In Stock, Qty 5

0

232

Briggs & Stratton 262785

Spring-Link
(Superseded to 691842)

$11.99

$

In Stock, Qty 7

0

268

Briggs & Stratton 65616

Casing, Wire (72", Cut To Required Length)
(Superseded to 691025)

$

$

Not available

269

Briggs & Stratton 26633

Wire, Control (78" Cut To Required Length)
(Superseded to 691026)

$

$

Not available

270

Briggs & Stratton 63426

Nut, Hex
(Superseded to 691027)

$13.99

$

In Stock, only 2 left!

0

271

Briggs & Stratton 290568

Lever-Control
(Superseded to 691028)

$45.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 492341

Armature-Magneto
(Superseded to 591459)

$53.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 94731

Screw, Hex Wash Hea
(Superseded to 691061)

$3.49

$

In Stock, Qty 19

0

356

Briggs & Stratton 494328

Wire-Stop
(Superseded to 690799)

$11.99

$

Usually ships in 2-12 days

0

423

Briggs & Stratton 94903

Screw-Shoulder
(Superseded to 691002)

$8.49

$

In Stock, only 2 left!

0

474

Briggs & Stratton 393474

Stator, Alternator (Dual-Circuit)
(Superseded to 592831)

$101.99

$

In Stock, only 3 left!

0

482

Briggs & Stratton 93621

Screw, Tapping Hex
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0

523

Briggs & Stratton 495230

Dipstick
(Superseded to 692014)

$25.99

$

In Stock, only 1 left!

0

524

Briggs & Stratton 281370

Seal-Tube
(Superseded to 281370S)

Note: Included in Gasket Set-Part Number 494241

$8.49

$

In Stock, Qty 20+

0

525

Briggs & Stratton 496113

Tube-Oil Fill
(Superseded to 691398)

$21.99

$

In Stock, only 1 left!

0

562

Briggs & Stratton 94852

Bolt, Round Head Sq
(Superseded to 691119)

$4.49

$

In Stock, Qty 18

0

592

Briggs & Stratton 231978

Nut-Hex.
(Superseded to 691251)

$3.49

$

In Stock, Qty 10

0

592

Briggs & Stratton 92278

Nut, Hex (1/4-20)
(Superseded to 691029)

$5.49

$

Usually ships in 2-12 days

0

614

Briggs & Stratton 93306

Pin, Cotter
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

616

Briggs & Stratton 495157

Crank-Governor
(Superseded to 692012)

$13.99

$

In Stock, only 4 left!

0

663

Briggs & Stratton 94929

Screw, Hex Wash Hd
(Superseded to 691693)

$3.99

$

In Stock, only 2 left!

0

847

Briggs & Stratton 496415

Dipsticktube Assembly
(Superseded to 597130)

$47.99

$

In Stock, only 1 left!

0

851

Briggs & Stratton 493880

Terminal-Cable
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

877

Briggs & Stratton 393456

WIRE/CONNECTOR, Alternator

$20.99

$

In Stock, only 1 left!

0

878

Briggs & Stratton 399916

Alternator Connecto (Regulated-16 Amp)

$12.99

$

Usually ships in 2-12 days

0
