28N707-0132-01 - Briggs & Stratton Vertical Engine Carburetor Parts Diagram

Vertical Engine

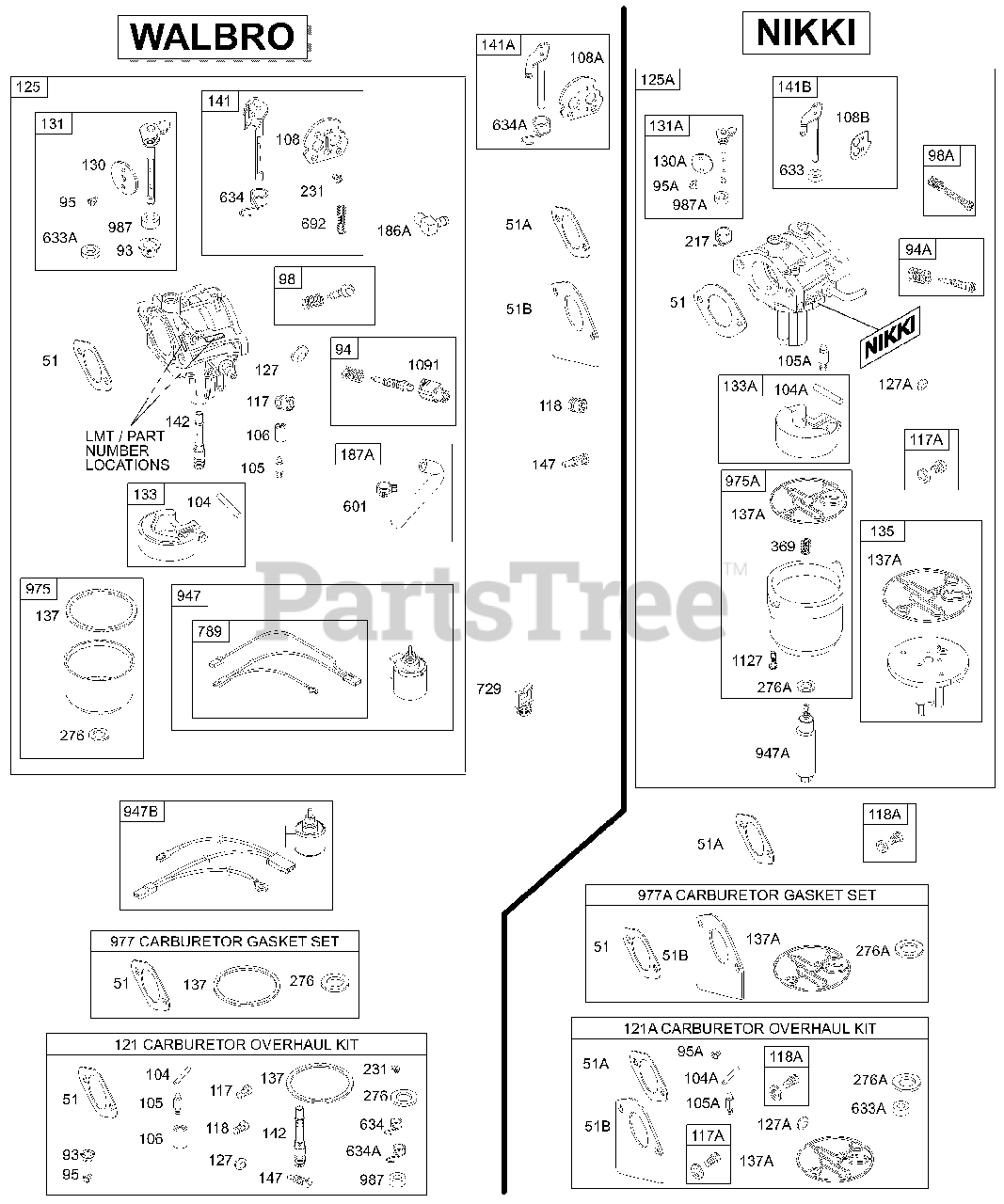

Carburetor Parts Diagram

  • Title

51

Briggs & Stratton 692137

GASKET, Intake

Note: Used After Code Date 97100500

$3.49

$

In Stock, Qty 20+

0

51A

Briggs & Stratton 272569S

Gasket-Intake

Note: Used Before Code Date 97100600

$4.99

$

In Stock, Qty 13

0

51B

Briggs & Stratton 692284

Gasket-Intake

$4.99

$

In Stock, Qty 6

0

93

Briggs & Stratton 690602

Bushing-Throttle Shaft

$9.99

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 498032

Kit-Idle Mixture

Note: (LMT 121, 122, 125, 129, 130, 137, 138)

$

$

Not available

94

Briggs & Stratton 496589

Kit-Idle Mixture

Note: (LMT 149, 150)

$13.99

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 498030

Kit-Idle Mixture
(Superseded to 794176)

Note: (LMT 153, 154, 155, 156)

$23.99

$

Usually ships in 2-12 days

0

94A

Briggs & Stratton 695425

Kit-Idle Mixture
(Superseded to 793610)

$22.99

$

In Stock, only 2 left!

0

95

Briggs & Stratton 691636

Screw

Note: (Throttle Valve)

$4.49

$

In Stock, Qty 12

0

95A

Briggs & Stratton 690718

SCREW

Note: (Throttle Valve)

$5.99

$

In Stock, only 2 left!

0

98

Briggs & Stratton 495800

Kit-Idle Speed

$11.99

$

In Stock, only 1 left!

0

98A

Briggs & Stratton 695408

KIT, Idle Speed

$15.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 690525

Pin-Float Hinge

$5.49

$

In Stock, only 1 left!

0

104A

Briggs & Stratton 694918

PIN, Float Hinge

$7.99

$

In Stock, only 1 left!

0

105

Briggs & Stratton 231855S

Valve-Float Needle

$6.99

$

Usually ships in 2-12 days

0

105A

Briggs & Stratton 696136

VALVE, Float Needle

$16.99

$

In Stock, Qty 14

0

106

Briggs & Stratton 690577

Seat-Inlet

Note: (Gravity Feed)

$6.99

$

In Stock, Qty 20+

0

106

Briggs & Stratton 691780

Seat-Inlet

Note: (Pump Feed)

$12.99

$

In Stock, Qty 10

0

108

Briggs & Stratton 690464

Valve-Choke

Note: (Used On Manual Choke)

$

$

Not available

108A

Briggs & Stratton 692344

Valve-Choke

Note: (Used On Choke A Matic)

$9.49

$

Usually ships in 2-12 days

0

108B

Briggs & Stratton 695419

Valve-Choke

$10.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 697228

Jet-Main

Note: (Standard) (LMT 33, 34, 73, 74, 76, 121, 122, 125, 126, 128, 129, 130, 132, 137, 138)

$19.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 692408

Jet-Main

Note: (Standard) (LMT 149, 150, 153, 154, 155 and 697481, 697482)

$19.99

$

Usually ships in 2-12 days

0

117A

Briggs & Stratton 695415

Jet-Main

Note: (Standard)

$19.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 692411

Jet-Main

Note: (High Altitude) (LMT 153, 154, 155, and 697481, 697482)

$19.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 231850

Jet-Main

Note: (High Altitude) (LMT 33, 34, 73, 74, 76, 121, 122, 125, 126, 128, 129, 130, 132, 137, 138)

$

$

Not available

118

Briggs & Stratton 232116

Jet-Main
(Superseded to 692411)

Note: (High Altitude) (LMT 149, 150)

$19.99

$

Usually ships in 2-12 days

0

118A

Briggs & Stratton 695416

Jet-Main

Note: (High Altitude)

$21.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 498116

Kit-Carburetor Overhaul

Note: Used Before Code Date 96072600

$69.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 499233

Kit-Carburetor Overhaul

Note: Used After Code Date 96072500 Used Before Code Date 97100600

$122.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 690191

Kit-Carburetor Overhaul

Note: Used After Code Date 97100500

$72.99

$

Usually ships in 2-12 days

0

121A

Briggs & Stratton 695427

Kit-Carburetor Overhaul

$70.99

$

In Stock, Qty 7

0

125

Briggs & Stratton 698620

Carburetor
(Superseded to 799727)

Note: (Gravity Feed)

$

$

Not available

127

Briggs & Stratton 695005

Plug-Welch

$5.49

$

In Stock, only 1 left!

0

127A

Briggs & Stratton 694530

Plug-Welch

$

$

Not available

130

Briggs & Stratton 691750

Valve-Throttle

$10.99

$

In Stock, only 1 left!

0

130A

Briggs & Stratton 695418

Valve-Throttle

$9.99

$

In Stock, only 1 left!

0

131

Briggs & Stratton 494379

Kit-Throttle Shaft
(Superseded to 790901)

$42.99

$

In Stock, only 4 left!

0

131A

Briggs & Stratton 695421

Kit-Throttle Shaft

$43.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 494381

Float-Carburetor

$15.99

$

In Stock, Qty 9

0

133A

Briggs & Stratton 694914

FLOAT, Carburetor

$27.99

$

In Stock, only 3 left!

0

135

Briggs & Stratton 696142

Tube-Fuel Transfer

$46.99

$

In Stock, Qty 5

0

137

Briggs & Stratton 281165S

Gasket-Float Bowl

$4.99

$

In Stock, Qty 20+

0

137A

Briggs & Stratton 695426

Gasket-Float Bowl

$9.49

$

In Stock, Qty 15

0

141

Briggs & Stratton 495097

Kit-Choke Shaft
(Superseded to 790905)

Note: (Manual Choke)

$50.99

$

Usually ships in 2-12 days

0

141A

Briggs & Stratton 495931

Kit-Choke Shaft
(Superseded to 790902)

Note: (Choke A Matic)

$36.99

$

In Stock, only 1 left!

0

141B

Briggs & Stratton 695420

Kit-Choke Shaft
(Superseded to 792777)

$35.99

$

In Stock, only 1 left!

0

142

Briggs & Stratton 231990

Nozzle-Carburetor

Note: (Standard) (LMT 33, 34, 73, 74, 76, 121, 122, 125, 126, 128, 129, 130, 132, 137, 138)

$32.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 692412

Nozzle-Carburetor

Note: (Standard) (LMT 149, 150, 153, 154, 155, 156)

$33.99

$

In Stock, only 3 left!

0

147

Briggs & Stratton 497472

Jet-Pilot

Note: (LMT 33, 34)

$24.99

$

Usually ships in 2-12 days

0

147

Briggs & Stratton 231985

Jet-Pilot

Note: (LMT 73, 74, 121, 122, 125, 129, 130, 131, 132, 137, 138)

$8.99

$

Usually ships in 2-12 days

0

186A

Briggs & Stratton 692317

Connector-Hose

$7.49

$

In Stock, Qty 20+

0

187A

Briggs & Stratton 699332

Line-Fuel
(Superseded to 791806)

Note: (Formed)(21" Long)(Cut To Required Length)

$59.99

$

In Stock, only 1 left!

0

187A

Briggs & Stratton 699331

Line-Fuel
(Superseded to 791805)

Note: (Formed)(10-1/4 Inches Long)(Cut to Required Length)

$26.99

$

In Stock, only 2 left!

0

217

Briggs & Stratton 695409

SPRING, Choke Return

$9.99

$

Usually ships in 2-12 days

0

231

Briggs & Stratton 691636

Screw

Note: (Choke Valve)

$4.49

$

In Stock, Qty 12

0

276

Briggs & Stratton 692255

Washer-Sealing

$5.99

$

In Stock, Qty 20+

0

276A

Briggs & Stratton 695410

WASHER, Sealing

$7.49

$

In Stock, Qty 11

0

369

Briggs & Stratton 695422

Spring-Float Bowl

$8.99

$

In Stock, Qty 7

0

601

Briggs & Stratton 95162S

Clamp-Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 12

0

633

Briggs & Stratton 695414

Seal-Choke/Throttle Shaft
(Superseded to 806131)

$6.49

$

Usually ships in 2-12 days

0

633A

Briggs & Stratton 690998

SEAL, Choke/Throttle Shaft

$8.49

$

In Stock, only 3 left!

0

634

Briggs & Stratton 690801

Spring/Seal Assembly

Note: (Manual Choke)

$8.49

$

Usually ships in 2-12 days

0

634A

Briggs & Stratton 690802

Spring/Seal Assembly

Note: (Choke A Matic)

$9.49

$

Usually ships in 2-12 days

0

692

Briggs & Stratton 690572

Spring-Detent
(Superseded to 590931)

Note: (LMT 155, 156 And 697482, 697483)

$5.99

$

In Stock, Qty 8

0

729

Briggs & Stratton 691335

Clip-Wire

Note: (Fuel Solenoid)

$5.49

$

Usually ships in 2-12 days

0

789

Briggs & Stratton 692037

HARNESS, Wiring

Note: (Fuel Solenoid)

$39.99

$

In Stock, only 2 left!

0

947

Briggs & Stratton 692734

Solenoid-Fuel

$93.99

$

In Stock, Qty 5

0

947A

Briggs & Stratton 695423

Solenoid-Fuel
(Superseded to 596038)

$87.99

$

In Stock, Qty 9

0

947B

Briggs & Stratton 497672

Solenoid-Fuel
(Superseded to 692734)

$93.99

$

In Stock, Qty 5

0

975

Briggs & Stratton 495933

Bowl-Float

$

$

Not available

975A

Briggs & Stratton 695417

Bowl-Float

$

$

Not available

977

Briggs & Stratton 690192

Gasket Set-Carburetor
(Superseded to 497535)

$58.99

$

Usually ships in 2-12 days

0

977A

Briggs & Stratton 695428

Gasket Set-Carburetor
(Superseded to 695427)

$70.99

$

In Stock, Qty 7

0

987

Briggs & Stratton 691326

Seal-Throttle Shaft

$5.99

$

Usually ships in 2-12 days

0

987A

Briggs & Stratton 698777

Seal-Throttle Shaft
(Superseded to 690998)

$8.49

$

In Stock, only 3 left!

0

1091

Briggs & Stratton 691333

Cap-Limiter

$10.99

$

In Stock, only 1 left!

0

1127

Briggs & Stratton 695407

SCREW, Float Bowl

Note: (Float Bowl)

$4.99

$

In Stock, Qty 6

0
