28U707-1175-E1 - Briggs & Stratton Vertical Engine Blower Housing, Flywheel, Flywheel Fans Parts Diagram

Vertical Engine

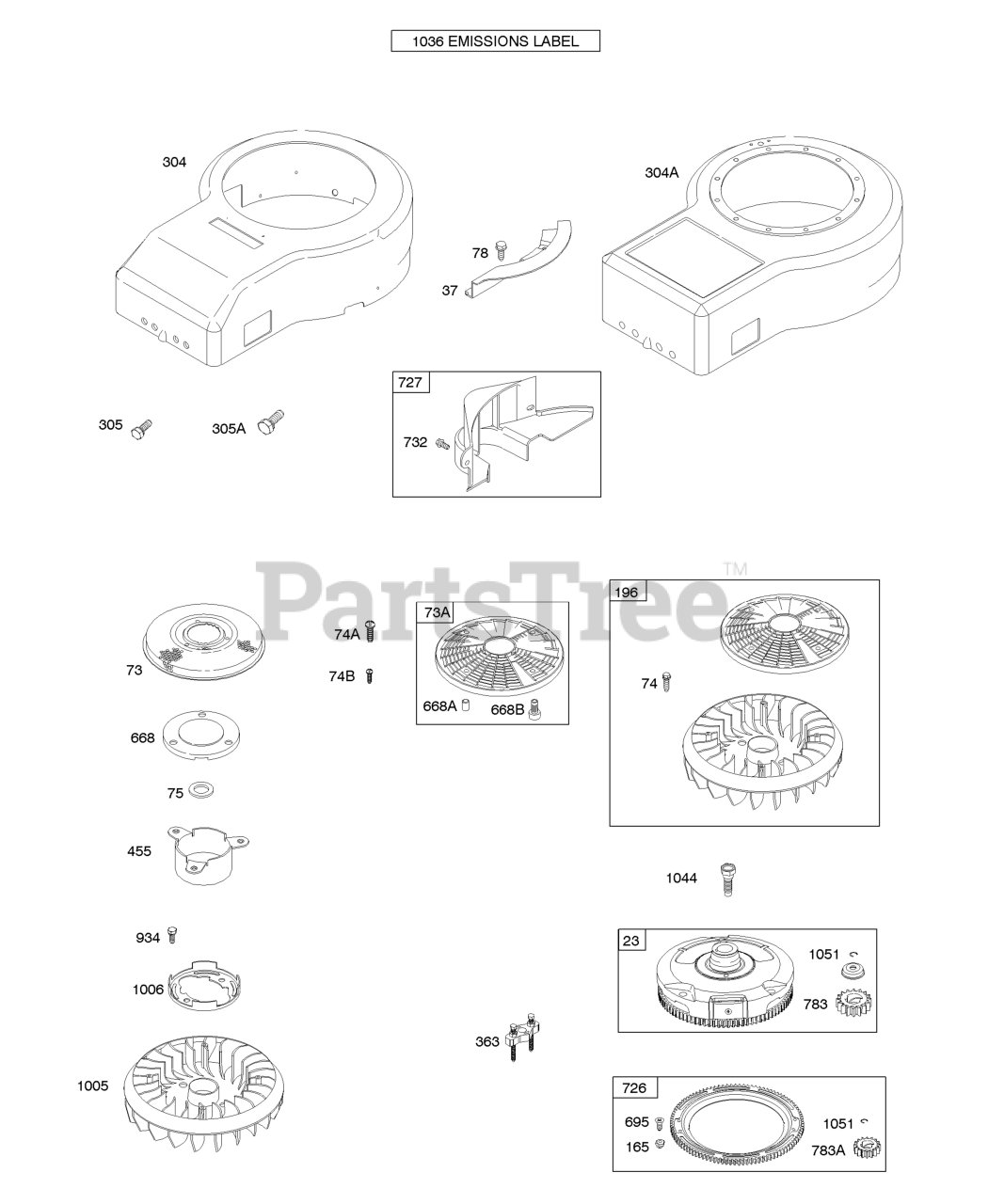

Blower Housing, Flywheel, Flywheel Fans Parts Diagram

  • Title

23

Briggs & Stratton 693556

Flywheel
(Superseded to 595094)

Note: (Steel Ring Gear)(Includes Steel Pinion Gear)

$

$

Not available

37

Briggs & Stratton 690456

Guard-Flywheel

$

$

Not available

74

Briggs & Stratton 698425

SCREW

Note: (Rotating Screen) (1 1/4" Long)

$3.99

$

In Stock, Qty 12

0

74A

Briggs & Stratton 691674

Screw

Note: (Rotating Screen) (1 1/2" High)

$

$

Not available

74B

Briggs & Stratton 691655

Screw

Note: (Rotating Screen) (1 1/2" High)

$4.49

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 690582

Washer

Note: (Flywheel)

$

$

Not available

78

Briggs & Stratton 697561

Screw

Note: (Flywheel Guard)

$4.49

$

Usually ships in 2-12 days

0

165

Briggs & Stratton 693148

Nut

Note: (Ring Gear)

$3.49

$

Usually ships in 2-12 days

0

196

Briggs & Stratton 695493

Fan/Screen Assembly

$

$

Not available

304

Briggs & Stratton 691399

Housing-Blower
(Superseded to 690847)

$

$

Not available

305

Briggs & Stratton 691108

SCREW

Note: (Blower Housing) (5/8" Long)

$3.49

$

In Stock, Qty 20+

0

305A

Briggs & Stratton 692127

Screw

Note: (Blower Housing) (13/16" Long)

$6.99

$

In Stock, only 2 left!

0

363

Briggs & Stratton 19203

PULLER, Flywheel

$28.99

$

In Stock, only 1 left!

0

455

Briggs & Stratton 691173

Cup-Flywheel

$39.99

$

Usually ships in 2-12 days

0

668

Briggs & Stratton 691323

Spacer

$5.49

$

Usually ships in 2-12 days

0

668A

Briggs & Stratton 691215

SPACER

Note: (Rotating Screen)

$7.99

$

In Stock, only 1 left!

0

668B

Briggs & Stratton 691500

SPACER

Note: (Rotating Screen)

$7.99

$

Usually ships in 2-12 days

0

695

Briggs & Stratton 693109

Screw

Note: (Ring Gear)

$5.49

$

Usually ships in 2-12 days

0

726

Briggs & Stratton 696537

Gear-Ring

$55.99

$

In Stock, Qty 16

0

727

Briggs & Stratton 490324

Cover-Starter Drive

$27.99

$

In Stock, only 2 left!

0

732

Briggs & Stratton 691002

Screw

Note: (Starter Drive Cover)

$8.99

$

In Stock, only 2 left!

0

783

Briggs & Stratton 693713

Gear-Pinion
(Superseded to 593935)

Note: (Steel Ring Gear Only)

$27.99

$

Usually ships in 2-12 days

0

783A

Briggs & Stratton 695708

Gear-Pinion

Note: (Aluminum Ring Gear Only)

$6.49

$

In Stock, Qty 12

0

934

Briggs & Stratton 691058

Screw

Note: (Fan Retainer)

$6.49

$

In Stock, Qty 9

0

1005

Briggs & Stratton 697853

Fan-Flywheel
(Superseded to 796201)

$32.99

$

In Stock, Qty 17

0

1006

Briggs & Stratton 690452

Retainer-Fan

$11.99

$

Usually ships in 2-12 days

0

1036

Label-Emissions

Note: (Available from an Authorized Briggs & Stratton Service Dealer)

$

$

Not available

1044

Briggs & Stratton 698139

SCREW

Note: (Flywheel)

$6.49

$

In Stock, Qty 10

0

1051

Briggs & Stratton 691265

RING, Retaining

$5.99

$

In Stock, only 3 left!

0
