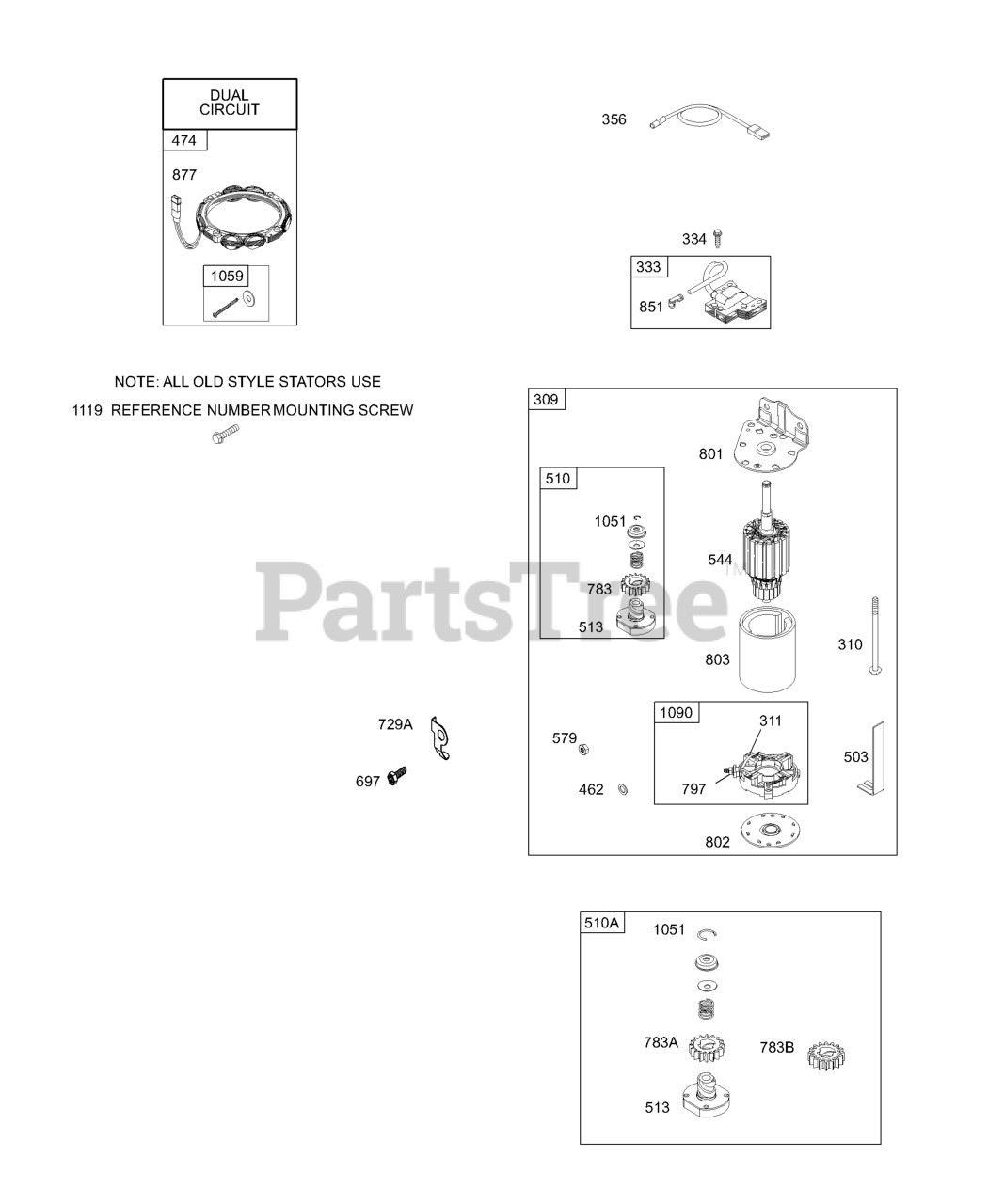

28W777-0122-E1 - Briggs & Stratton Vertical Engine Electric Starter, Alternator Parts Diagram

Vertical Engine

Electric Starter, Alternator Parts Diagram

  • Title

309

Briggs & Stratton 497595

Motor-Starter

Note: (Plastic Ring Gear Only)

$115.99

$

In Stock, Qty 20+

0

309

Briggs & Stratton 693551

Motor-Starter
(Superseded to 593934)

Note: (Steel Ring Gear Only)

$138.99

$

In Stock, Qty 8

0

310

Briggs & Stratton 690323

BOLT

Note: (Starter Motor)

$4.49

$

In Stock, only 2 left!

0

311

Briggs & Stratton 497608

Brush Set

$29.99

$

In Stock, only 2 left!

0

333

Briggs & Stratton 492341

Armature-Magneto
(Superseded to 591459)

$56.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

SCREW

Note: (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 690807

Wire-Stop

$

$

Not available

462

Briggs & Stratton 691261

WASHER

Note: (Starter Cable)

$4.49

$

In Stock, only 2 left!

0

474

Briggs & Stratton 696459

Alternator
(Superseded to 592831)

$101.99

$

Usually ships in 2-12 days

0

503

Briggs & Stratton 691532

STRAP, Starter

$6.49

$

In Stock, only 1 left!

0

510

Briggs & Stratton 693699

DRIVE, Starter
(Superseded to 593934)

Note: (Used With Steel Ring Gear)

$138.99

$

In Stock, Qty 8

0

510A

Briggs & Stratton 497606

Drive-Starter
(Superseded to 696541)

Note: (Used With Aluminum And Plastic Ring Gears)

$94.99

$

In Stock, Qty 13

0

513

Briggs & Stratton 692024

CLUTCH, Drive

$23.99

$

In Stock, only 2 left!

0

544

Briggs & Stratton 692034

Armature-Starter

$

$

Not available

579

Briggs & Stratton 691029

NUT

Note: (Starter Cable)

$5.99

$

Usually ships in 2-12 days

0

697

Briggs & Stratton 690372

Screw
(Superseded to 791680)

Note: (Drive Cap)

$4.49

$

In Stock, Qty 8

0

729A

Briggs & Stratton 691224

CLIP, Wire

Note: (Starter Motor)

$4.99

$

Usually ships in 2-12 days

0

783

Briggs & Stratton 693713

Gear-Pinion
(Superseded to 593935)

Note: (Steel Ring Gear Only)

$27.99

$

Usually ships in 2-12 days

0

783A

Briggs & Stratton 693059

Gear-Pinion
(Superseded to 695708)

Note: (For Aluminum Ring Gear Only)

$6.49

$

In Stock, Qty 12

0

783B

Briggs & Stratton 693058

Gear-Pinion
(Superseded to 695708)

Note: (For Plastic Ring Gear Only)

$6.49

$

In Stock, Qty 12

0

797

Briggs & Stratton 693167

NUT

Note: (Brush Retainer)

$4.99

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 691283

CAP, Drive

$92.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 691286

CAP, End

$29.99

$

Usually ships in 2-12 days

0

803

Briggs & Stratton 693757

Housing-Starter

$

$

Not available

851

Briggs & Stratton 692424

Terminal-Spark Plug

$6.49

$

In Stock, Qty 11

0

877

Briggs & Stratton 393456

WIRE/CONNECTOR, Alternator

$

$

Not available

1051

Briggs & Stratton 691265

RING, Retaining

$5.99

$

In Stock, only 4 left!

0

1059

Briggs & Stratton 698516

KIT, Screw/Washer

$5.99

$

Usually ships in 2-12 days

0

1090

Briggs & Stratton 691293

RETAINER, Brush

$31.99

$

In Stock, Qty 5

0

1119

Briggs & Stratton 691183

SCREW

Note: (Alternator)

$3.99

$

Usually ships in 2-12 days

0
