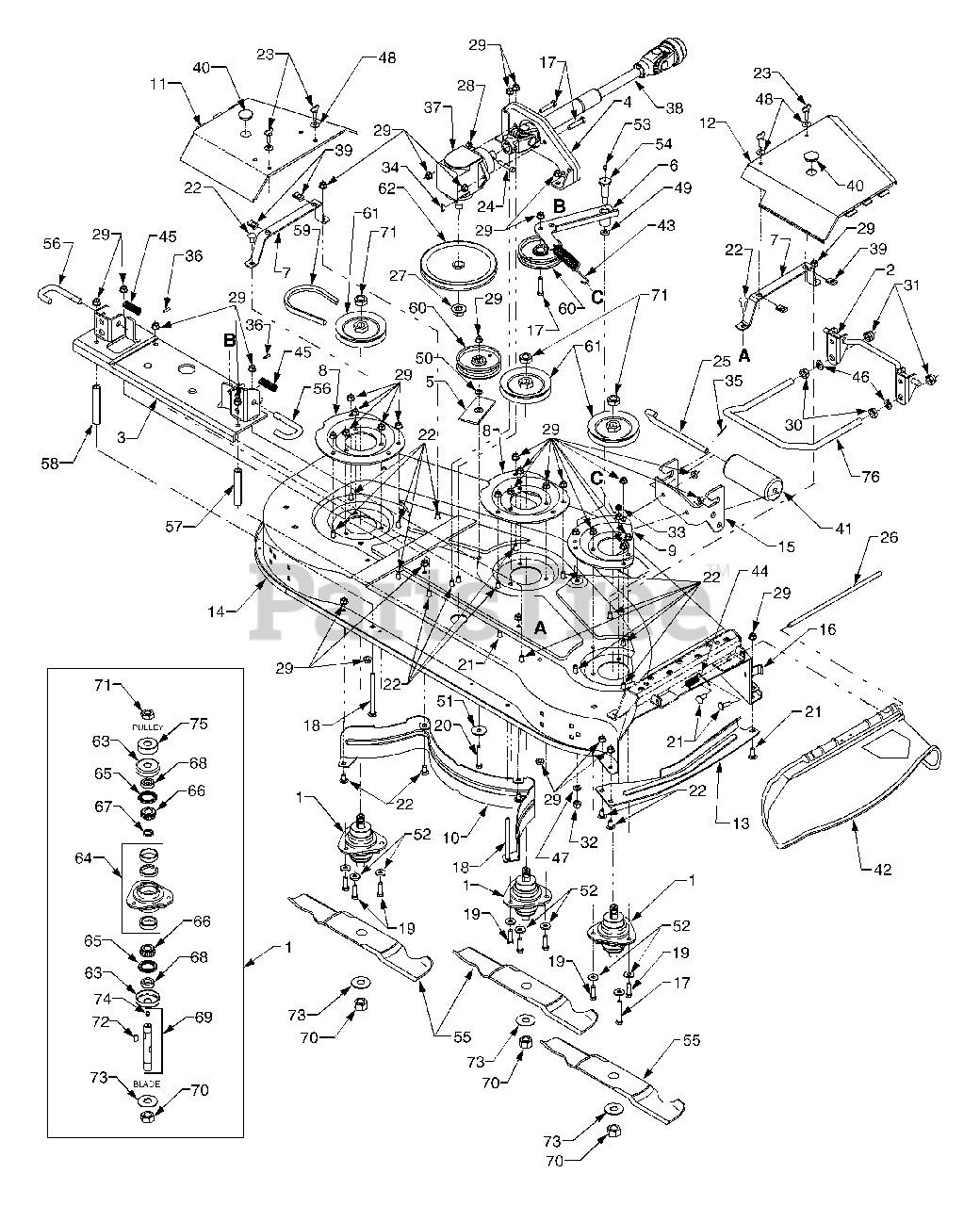

290 (190-290-100) - Cub Cadet 54" Mower Deck att 290 54 Mower Parts Diagram

54" Mower Deck

290 54 Mower Parts Diagram

  • Title

1

Cub Cadet 759-3665

Assembly, Spindle
(Superseded to 959-3665)

Note: (Includes Ref, Nos. 63 thru 75)

$

$

Not available

2

Cub Cadet 603-0452A

Bracket, Front Lift

Variations

Cub Cadet 603-0452A-0498

Front Lift Bracket - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 603-0452A-0716

Front Lift Bracket - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 603-0452A-0637

Lift Bracket, Black, Front - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 603-0452A-4021

BRACKET-FRONT LIFT - CUB YELLOW 2 (4021)

$

$

Not available

$60.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 603-0460-0716

Bracket, Gearbox

$143.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 603-0607-0716

Bracket, Drive

$110.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 603-0646

Assembly, Spacer

Variations

Cub Cadet 603-0646-0637

PLATE ASM-SPACER - POWDER BLACK (0637)

$66.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-0646-0716

PLATE ASM-SPACER - CUB YELLOW-99 (0716)

$61.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-0646-4021

PLATE ASM-SPACER - CUB YELLOW 2 (4021)

$61.99

$

Usually ships in 3-6 days

0

$53.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 603-0694-0716

Bracket, Idler

$84.99

$

In Stock, only 1 left!

0

7

Cub Cadet 703-2072

Strap, Mounting

Variations

Cub Cadet 703-2072-0498

STRAP-MOUNTING - OLD CUB YELLOW (0498)

$26.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2072-4021

STRAP-MOUNTING - CUB YELLOW 2 (4021)

$26.99

$

Usually ships in 3-6 days

0

Cub Cadet 703-2072-0637

STRAP-MOUNTING - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 703-2072-0716

STRAP-MOUNTING - CUB YELLOW-99 (0716)

$

$

Not available

$24.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-2089-0716

Disk, Reinforcement (Ctr., L.H.)
(Superseded to 703-2089A-0637)

$

$

Not available

9

Cub Cadet 703-2090-0716

Disk, Reinforcement (R.H.)

$

$

Not available

10

Cub Cadet 703-2093

Baffle, Rear Inner
(Superseded to 703-2093C)

Variations

Cub Cadet 703-2093-0637

Inner Rear Baffle, Black - POWDER BLACK (0637)

$89.99

$

In Stock, Qty 14

0

Cub Cadet 703-2093-0716

Inner Rear Baffle, Black - CUB YELLOW-99 (0716)

$89.99

$

In Stock, Qty 14

0

Cub Cadet 703-2093-4008

Inner Rear Baffle, Black - WINE RED (4008)

$89.99

$

In Stock, Qty 14

0

$83.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 703-2096B-0716

Cover, Belt (L.H.)
(Superseded to 703-2096C-0716)

$

$

Not available

12

Cub Cadet 703-2097B-0716

Cover, Belt (R.H.)
(Superseded to 703-2097B-4021)

$

$

Not available

13

Cub Cadet 703-2099-0716

Guard, Finger
(Superseded to 703-3511B-0637)

$65.99

$

In Stock, Qty 20+

0

14

Cub Cadet 703-3027-0716

Deck

$

$

Not available

14

Cub Cadet 777D03482

Label, 54"

Note: not shown

$

$

Not available

14

Cub Cadet 777S30010

Label, Danger R.H. Side of Deck
(Superseded to 777S30503)

Note: not shown

$10.99

$

In Stock, only 4 left!

0

14

Cub Cadet 777S30295

Label, Danger Discharge Chute

Note: not shown

$19.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 777S30015

Label, Danger L.H. Side of Deck

Note: not shown

$8.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 703-3043A-0716

Bracket, Roller Front
(Superseded to 703-3043A-4021)

$64.99

$

In Stock, only 1 left!

0

16

Cub Cadet 703-3279-0716

Stop, Chute Deflector
(Superseded to 703-3279)

$37.99

$

In Stock, only 3 left!

0

17

Cub Cadet 710-0347

Screw, Hex Cap 3/8-16 x 1.75 GR5

$4.99

$

In Stock, Qty 20+

0

18

Cub Cadet 710-1644

Carriage, Bolt 3/8-16 x 5.0 GR5

$9.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 710-3005

Screw, Hex Cap 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 710-3011

Screw, Hex Cap 3/8-16 x 2.25 GR5

$6.49

$

In Stock, Qty 20+

0

21

Cub Cadet 710-3168

Carriage, Bolt 3/8-16 x 1.0

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 710-3178

Carriage, Bolt 3/8-16 x .75

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 710-3232

Screw, Thumb Adjust 5/16-18x1

$9.49

$

In Stock, Qty 10

0

24

Cub Cadet 710-3251

Screw, Sock. Hd. 5/16-18 x 1.75

$5.99

$

In Stock, Qty 13

0

25

Cub Cadet 711-3314

Pin, Roller 1/2 x 7.31
(Superseded to 711-3314A)

$23.99

$

In Stock, Qty 20+

0

26

Cub Cadet 711-3318

Pin, Hinged 375 x 12.55

$

$

Not available

27

Cub Cadet 712-0417A

Nut, Hex Flanged 5/8-18

$6.99

$

In Stock, Qty 20+

0

28

Cub Cadet 712-0429

Nut, Hex Lock 5/16-18

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 712-0431

Nut, Flange Lock 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

30

Cub Cadet 712-3015

Nut, Hex Jam 5/8-11

$4.49

$

In Stock, Qty 15

0

31

Cub Cadet 712-3016

Nut, Hex Lock 5/8-11

$6.49

$

In Stock, Qty 14

0

32

Cub Cadet 712-3019

Nut, Hex 7/16-14

$6.49

$

In Stock, only 4 left!

0

33

Cub Cadet 712-3020

Nut, Hex Top Lock Jam, 3/8-16
(Superseded to 912-3020)

$5.99

$

In Stock, Qty 11

0

34

Cub Cadet 714-0126

Key, Hi-Pro

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 714-3004

Pin, Cotter 3/32 x 1.25

$4.49

$

In Stock, Qty 11

0

36

Cub Cadet 715-3003

Pin, Spirol

$6.49

$

In Stock, Qty 11

0

37

Cub Cadet 717-3447

Drive, Right Angle
(Superseded to 917-3447)

$933.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 717-3453

Shaft, Drive

$1114.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 717-3488

Half Shaft, Front Only

Note: Not shown

$628.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 717-3489

Half Shaft, Rear Only

Note: Not shown

$

$

Not available

38

Cub Cadet 759-04219

Repair Kit, Yoke Lock

Note: Works with Weasler brand Drive shaft only. Weasler name on yoke. Not shown,

$90.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 726-0211

Nut, "U" 5/16-18

$3.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 726-3045

Plug, Button
(Superseded to 726-3045A)

$4.49

$

In Stock, Qty 11

0

41

Cub Cadet 731-3005

Roller, Front

$26.99

$

In Stock, Qty 20+

0

42

Cub Cadet 731-3131

Deflector, Chute
(Superseded to 931-3131A)

$100.99

$

In Stock, Qty 11

0

42

Cub Cadet 777S30145

Label, Danger
(Superseded to 977S30145)

Note: not shown

$9.49

$

In Stock, only 1 left!

0

43

Cub Cadet 732-0971

Spring, Extension 6.5" Lg

$21.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 732-3070

Spring, Torsion
(Superseded to 732-3070A)

$10.99

$

In Stock, Qty 5

0

45

Cub Cadet 732-3127

Spring, Compression
(Superseded to 932-3127)

$4.49

$

In Stock, Qty 19

0

46

Cub Cadet 736-0158

Washer, Lock 5/8" I.D.

$4.49

$

In Stock, only 1 left!

0

47

Cub Cadet 736-0171

Washer, Lock 7/16" I.D.

$4.49

$

In Stock, Qty 20+

0

48

Cub Cadet 736-0242

Washer, Bell .34" I.D.

$3.99

$

In Stock, Qty 20+

0

49

Cub Cadet 736-3015

Washer, Flat .47" I.D. x .88" O.D.
(Superseded to 936-3015)

$3.99

$

In Stock, Qty 5

0

50

Cub Cadet 736-3024

Washer, Flat .47" I.D. x .75" O.D.

$3.49

$

Usually ships in 3-6 days

0

51

Cub Cadet 736-3039

Washer, Flat .406" I.D.

$4.99

$

In Stock, Qty 18

0

52

Cub Cadet 736-3052

Washer, Flat .406" I.D.

$4.49

$

In Stock, Qty 20+

0

53

Cub Cadet 737-3000

Fitting, Grease
(Superseded to 937-3000)

$4.49

$

In Stock, Qty 20+

0

54

Cub Cadet 738-3005A

Bolt, Shoulder .68" Dia. x 1.59
(Superseded to 638-04012A)

$20.99

$

In Stock, Qty 20+

0

55

Cub Cadet 759-3820

Blade, High Lift 18.5" Lg.
(Superseded to 742P3013A)

Note: (Original Equipment)

$35.99

$

In Stock, Qty 20+

0

55

Cub Cadet 759-3841

Blade, Hard Coated
(Superseded to 759-3597-0637)

Note: not shown

$

$

Not available

56

Cub Cadet 747-3188

Pin, Mower Support

$32.99

$

In Stock, Qty 5

0

57

Cub Cadet 750-3213

Spacer, .405" I.D. x 3.875" Lg.

$14.99

$

In Stock, only 2 left!

0

58

Cub Cadet 750-3214

Spacer, .405" I.D. x 4.075" Lg.

$

$

Not available

59

Cub Cadet 954-0197

Belt, "V" .117" Lg

$83.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 756-3005

Pulley, Flat

$42.99

$

In Stock, Qty 20+

0

61

Cub Cadet 756-3046

Pulley, "V"

$52.99

$

In Stock, only 2 left!

0

62

Cub Cadet 756-3097

Pulley, Drive

$65.99

$

In Stock, only 1 left!

0

63

Cub Cadet 703-1387

Cup, Spindle
(Superseded to 903-1387)

$23.99

$

In Stock, Qty 16

0

64

Cub Cadet 759-3226

Housing w/ Cups, Spindle
(Superseded to 959-3226)

$124.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 721-3018

Seal, Oil
(Superseded to 921-3018A)

$7.99

$

In Stock, Qty 20+

0

66

Cub Cadet 741-3028

Cone, Bearing
(Superseded to 941-04298)

$15.99

$

In Stock, Qty 20+

0

67

Cub Cadet 741-3030

Spacer, Bearing
(Superseded to 941-3030)

$11.99

$

In Stock, Qty 6

0

68

Cub Cadet 711-3171

Spacer .755" I.D. x 1.25" O.D.
(Superseded to 911-3171)

$10.99

$

In Stock, Qty 8

0

69

Cub Cadet 759-3369

Kit, Shaft w/Seal
(Superseded to 959-3369)

$78.99

$

In Stock, Qty 5

0

70

Cub Cadet 712-3018

Nut, Hex 3/4-16 GR8

$8.49

$

In Stock, Qty 10

0

71

Cub Cadet 712-3026

Nut, Hex Jam, 3/4-16 GR5

$4.99

$

In Stock, Qty 10

0

72

Cub Cadet 714-0135

Key, #91 Woodruff

$4.49

$

In Stock, Qty 9

0

73

Cub Cadet 736-3014

Washer, Flat .781" I.D. x 2" O.D.

$4.49

$

In Stock, Qty 20+

0

74

Cub Cadet 737-3000

Fitting, Grease
(Superseded to 937-3000)

$4.49

$

In Stock, Qty 20+

0

75

Cub Cadet 748-3020

Spacer
(Superseded to 948-3020)

$16.99

$

In Stock, Qty 8

0

76

Cub Cadet 747-3386

Rod, Front Lift

$100.99

$

In Stock, only 3 left!

0
