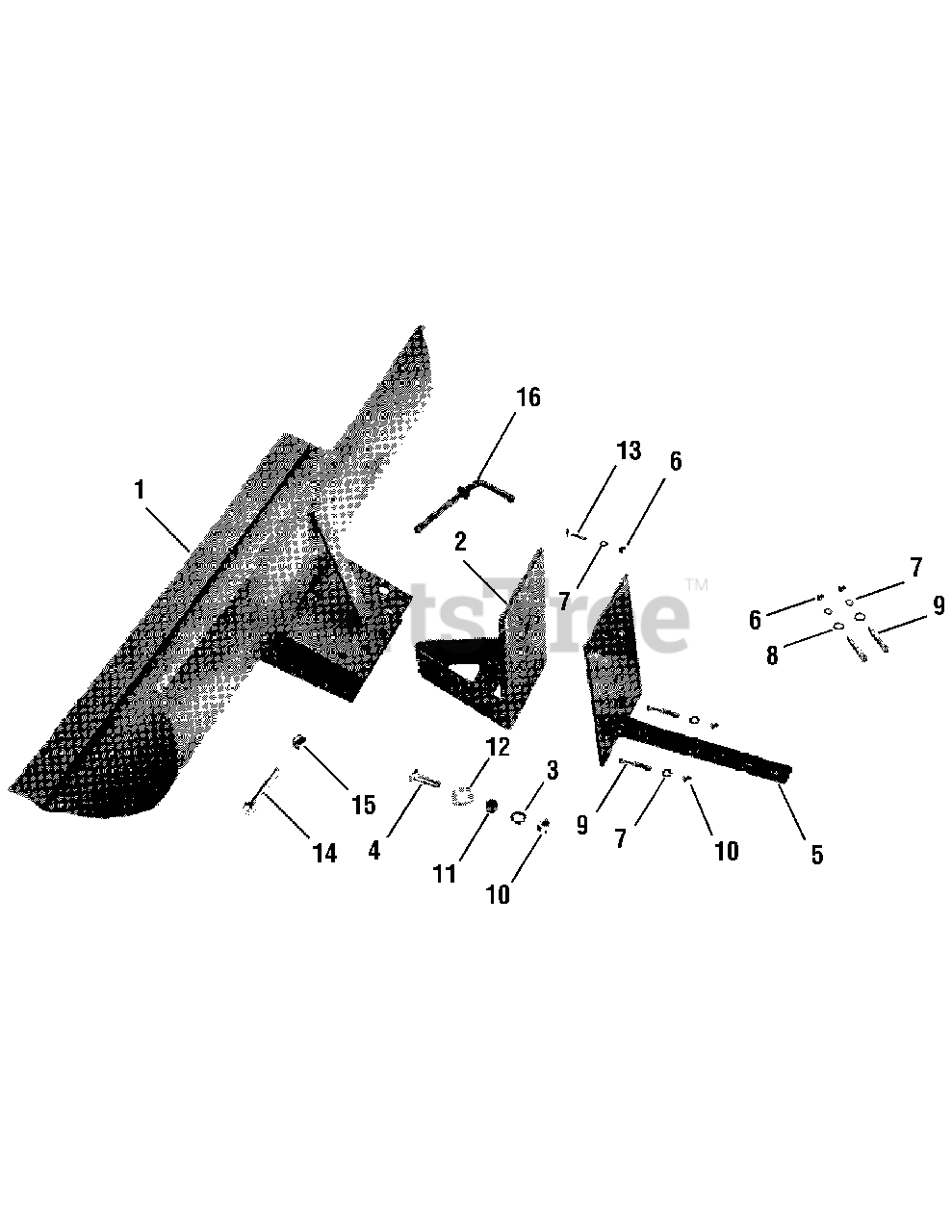

290-259-081 - Troy-Bilt Dozer-Snow Blade General Assembly Parts Diagram

Dozer-Snow Blade

General Assembly Parts Diagram

  • Title

1

MTD GW-1157

Dozer/Snow Blade
(Superseded to GW-1160)

$

$

Not available

2

Troy-Bilt 1909773

Swivel Bracket, (A-Frame)

$

$

Currently unavailable

3

Troy-Bilt 736-0921

Lockwasher, 1/2"

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-3181

Hex Head Bolt, 1/2--13 x 1-1/2,

$6.49

$

In Stock, only 1 left!

0

5

Troy-Bilt 1909774

Blade Mounting Brack

$

$

Currently unavailable

6

Troy-Bilt 712-0267

Hex Head Nut, 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 736-0119

Lockwasher, 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 736-0275

Washer, Plain, 5/16

$6.49

$

Usually ships in 3-6 days

0

9

Troy-Bilt 1100779

Hex Head Screw, 5/16-18 x 1-3/4
(Superseded to 710-3180)

$4.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 1186233

Hex Nut, 1/2"
(Superseded to 912-0206)

$3.99

$

In Stock, Qty 20+

0

11

MTD GW-1416

Bushing

$

$

Not available

12

Troy-Bilt 1100257

Flat Washer, 1/2"

$

$

Not available

13

Troy-Bilt 710-0874

Hex Head Screw, 5/16-18 x 1-1/4

$6.49

$

Usually ships in 3-6 days

0

14

Troy-Bilt 1100057

Hex Head Screw, 1/2-13 x 3
(Superseded to 710-0182A)

$7.49

$

In Stock, only 2 left!

0

15

Troy-Bilt 712-0384

Hex Locknut, 1/2 x 13
(Superseded to 912-0384)

$6.49

$

In Stock, only 3 left!

0

16

Troy-Bilt GW-1158

Index Pin

$

$

Not available
