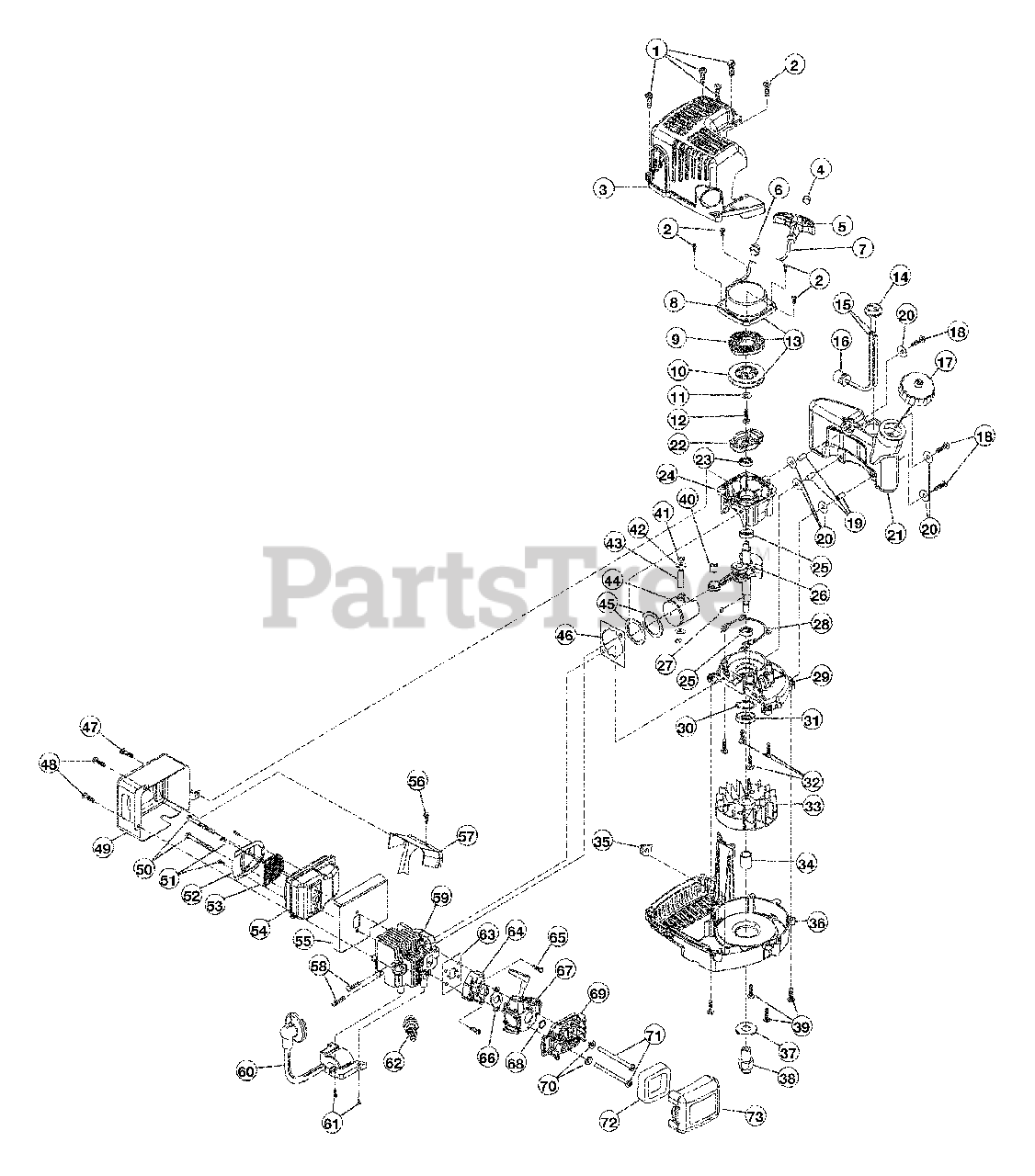

290r (41AR290G734) - Ryobi Blower General Assembly Parts Diagram

Blower

General Assembly Parts Diagram

  • Title

1

MTD 753-04518

Screw
(Superseded to 710-04232)

$5.49

$

In Stock, only 2 left!

0

2

MTD 753-04519

Screw

$

$

Not available

3

MTD 753-04520

Engine Cover

$

$

Not available

4

MTD 753-04521

Pull Handle Bushing

$

$

Not available

5

MTD 753-04522

Pull Handle

$

$

Not available

6

MTD 753-04523

Rope Guide

$

$

Not available

7

MTD 753-04524

Rope

$

$

Not available

8

MTD 753-04525

Recoil Case
(Superseded to MC-9017-MD0103)

$

$

Not available

9

MTD 753-04526

Recoil Spring

$

$

Not available

10

MTD 753-04527

Recoil Pulley

$

$

Not available

11

MTD 753-04528

Washer
(Superseded to MC-9014-MD0106)

$

$

Not available

12

MTD 753-04529

Screw
(Superseded to MC-9SGKB-4.8)

$

$

Not available

13

MTD 753-04530

Recoil Assembly

Note: (includes 4-12)

$

$

Not available

14

MTD 753-04531

Fuel Line Grommet

$

$

Not available

15

MTD 791-181828

Fuel Line

$

$

Not available

16

MTD 753-04533

Fuel Filter

$

$

Not available

17

MTD 753-04534

Fuel Cap
(Superseded to 791-182612)

$18.99

$

In Stock, Qty 17

0

18

MTD 753-04535

Screw
(Superseded to MC-9SKKBY05-18)

$

$

Not available

19

MTD 753-04536

Spacer

$

$

Not available

20

MTD 753-04537

Washer

$

$

Not available

21

MTD 753-04538

Fuel Tank Assembly

Note: (includes 14-17)

$

$

Not available

22

MTD 753-04539

Pulley Assembly

$

$

Not available

23

MTD 753-04540

Upper Oil Seal
(Superseded to MC-9157-332101)

$

$

Not available

24

MTD 753-04541

Upper Crankcase
(Superseded to 753-05004)

$

$

Not available

25

MTD 753-04542

Bearing

$

$

Not available

26

MTD 753-04543

Keyed Powershaft Assembly

$

$

Not available

27

MTD 753-04544

Flywheel Key

$

$

Not available

28

MTD 753-04545

Crankshaft Gasket

$

$

Not available

29

MTD 753-04546

Lower Crankcase
(Superseded to 753-04839)

$

$

Not available

30

MTD 753-04547

C-Clip

$

$

Not available

31

MTD 753-04548

Lower Oil Seal

$

$

Not available

32

MTD 753-04549

Crankshaft Screw

$

$

Not available

33

MTD 753-04550

Flywheel
(Superseded to MC-9151-MD0103)

$31.99

$

In Stock, only 1 left!

0

34

MTD 753-04551

Spacer

$

$

Not available

35

MTD 753-04552

Spark Wire Grommet

$

$

Currently unavailable

36

MTD 753-04553

Lower Engine Cover

$

$

Not available

37

MTD 753-04554

Washer

$

$

Not available

38

MTD 753-04555

Impeller Nut

$

$

Not available

39

MTD 753-04556

Shroud Screws

$

$

Currently unavailable

40

MTD 753-04557

Bearing

$

$

Not available

41

MTD 753-04558

Retaining Ring
(Superseded to MC-9131-MD0101)

$

$

Not available

42

MTD 753-04559

Piston Spacer
(Superseded to MC-9057-MD0201)

$

$

Not available

43

MTD 753-04560

Piston Pin

$

$

Not available

44

MTD 753-04561

Piston
(Superseded to MC-9290-MD0101)

$

$

Not available

45

MTD 753-04562

Piston Ring

$

$

Not available

46

MTD 753-04563

Cylinder Gasket

$

$

Not available

47

MTD 753-04564

Screw

$

$

Not available

48

MTD 753-04565

Screw

$

$

Not available

49

MTD 753-04566

Muffler Cover
(Superseded to MC-9082-MD0101)

$15.99

$

In Stock, only 1 left!

0

50

MTD 753-04567

Muffler Bolt

$

$

Not available

51

MTD 753-04568

Spark Arrestor Screw

$

$

Not available

52

MTD 753-04569

Spark Arrestor Hood

$

$

Not available

53

MTD 753-04570

Spark Arrestor

$

$

Not available

54

MTD 753-04571

Muffler Assembly

Note: (includes 51-53)

$

$

Not available

55

MTD 753-04572

Muffler Gasket

$

$

Not available

56

MTD 753-04573

Screw

$

$

Currently unavailable

57

MTD 753-04574

Cylinder Cover

$

$

Not available

58

MTD 753-04575

Cylinder Bolt

$

$

Not available

59

MTD 753-04576

Cylinder

$

$

Not available

60

MTD 753-04577

Module
(Superseded to MC-9228-MD0104)

$71.99

$

Usually ships in 3-6 days

0

61

MTD 753-04578

Module Screw
(Superseded to MC-9SQKBM04-20)

$

$

Not available

62

MTD 753-04579

Spark Plug
(Superseded to 791-610311B)

$13.99

$

In Stock, Qty 8

0

63

MTD 753-04580

Insulator Gasket

$

$

Not available

64

MTD 753-04581

Insulator

$

$

Not available

65

MTD 753-04583

Insulator Screw
(Superseded to MC-9SKKB-05-19)

$

$

Not available

66

MTD 753-04582

Carburetor Gasket

$

$

Not available

67

MTD 753-04584

Carburetor

$

$

Not available

68

MTD 753-04585

O-Ring

$

$

Not available

69

MTD 753-04586

Air Cleaner Assembly

Note: (includes 72 and 73)

$

$

Not available

70

MTD 753-04587

Washer
(Superseded to MC-9SKKBM05-64)

$

$

Not available

71

MTD 753-04588

Air Cleaner Screw
(Superseded to MC-9SKKBM05-64)

$

$

Not available

72

MTD 753-04589

Air Filter

$

$

Not available

73

MTD 753-04590

Air Filter Cover

$

$

Not available
