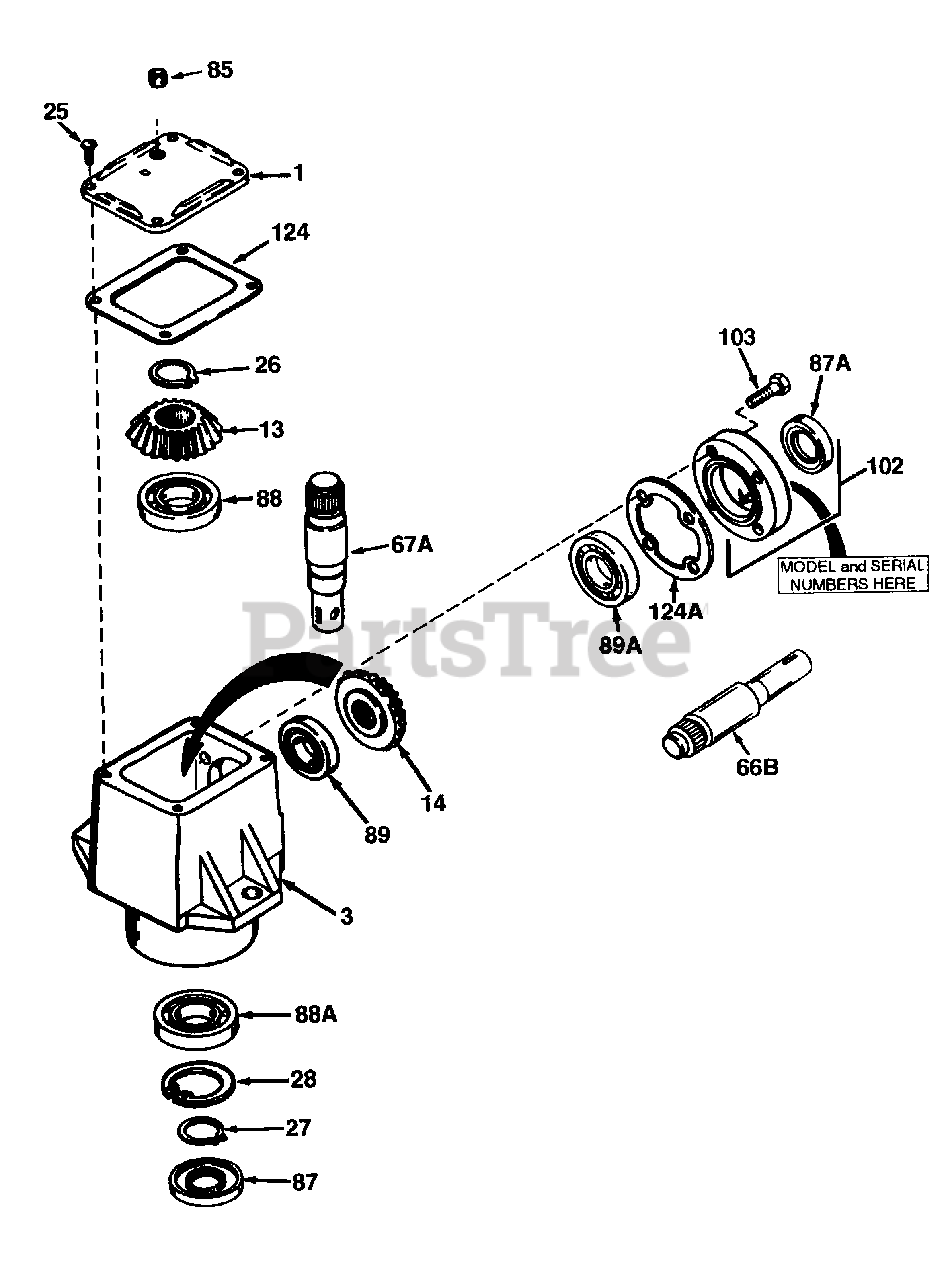

291 (190-291-100) - Cub Cadet 60" Mower Deck Gear Box Assembly, Right Angle Parts Diagram

60" Mower Deck

Gear Box Assembly, Right Angle Parts Diagram

  • Title

1

Cub Cadet TC-772067

Right Angle Drive Head Cover

$29.99

$

Usually ships in 3-12 days

0

3

Cub Cadet TC-770124

Right Angle Drive Housing
(Superseded to TC-770124A)

$107.99

$

Usually ships in 3-12 days

0

13

Cub Cadet TC-778371

Bevel Gear
(Superseded to TC-778382)

Note: (18 teeth-steel)

$53.99

$

Usually ships in 3-12 days

0

14

Cub Cadet TC-778348

Bevel Gear

Note: (15 teeth-steel)

$44.99

$

Usually ships in 3-12 days

0

25

Cub Cadet TC-792025

Screw, 10-24 x 1/2"

$4.49

$

In Stock, only 4 left!

0

26

Cub Cadet TC-788018

Retaining Ring

$4.49

$

Usually ships in 3-12 days

0

27

Cub Cadet TC-788079

Retaining Ring

$4.49

$

Usually ships in 3-12 days

0

28

UNKNOWN

$

$

Not available

66B

Cub Cadet TC-776428

Input Shaft

Note: (5.570" long)

$

$

Not available

67A

Cub Cadet TC-776429

Output Shaft
(Superseded to TC-776453)

Note: (4.259" long)

$102.99

$

Usually ships in 3-12 days

0

85

Cub Cadet TC-792039

Pipe Plug, 1/8-27

$4.49

$

Usually ships in 3-12 days

0

87

Cub Cadet TC-788082

Oil Seal

$23.99

$

In Stock, only 2 left!

0

87A

Cub Cadet TC-788031

Oil Seal 7/8"

$10.99

$

In Stock, only 2 left!

0

88

Cub Cadet TC-780174

Ball Bearing

Note: (.9838 ID)

$32.99

$

In Stock, only 2 left!

0

88A

Cub Cadet TC-780177

Ball Bearing

Note: (.9838 ID)

$68.99

$

In Stock, only 2 left!

0

89

Cub Cadet TC-780024

Ball Bearing

Note: (3/4" ID)

$48.99

$

In Stock, only 2 left!

0

89A

Cub Cadet TC-780034

Ball Bearing

Note: (7/8" ID)

$48.99

$

In Stock, only 2 left!

0

102

Cub Cadet TC-786029

Retainer Cap & Seal

Note: (Includes 87A & 103)

$39.99

$

In Stock, only 2 left!

0

103

Cub Cadet TC-792026

Bolt, 1/4-20 x 7/8"

$4.49

$

Usually ships in 3-12 days

0

124

Cub Cadet TC-788028

Gasket

$5.99

$

In Stock, Qty 20+

0

124A

Cub Cadet TC-788030B

Retainer Gasket

$5.99

$

In Stock, only 2 left!

0
