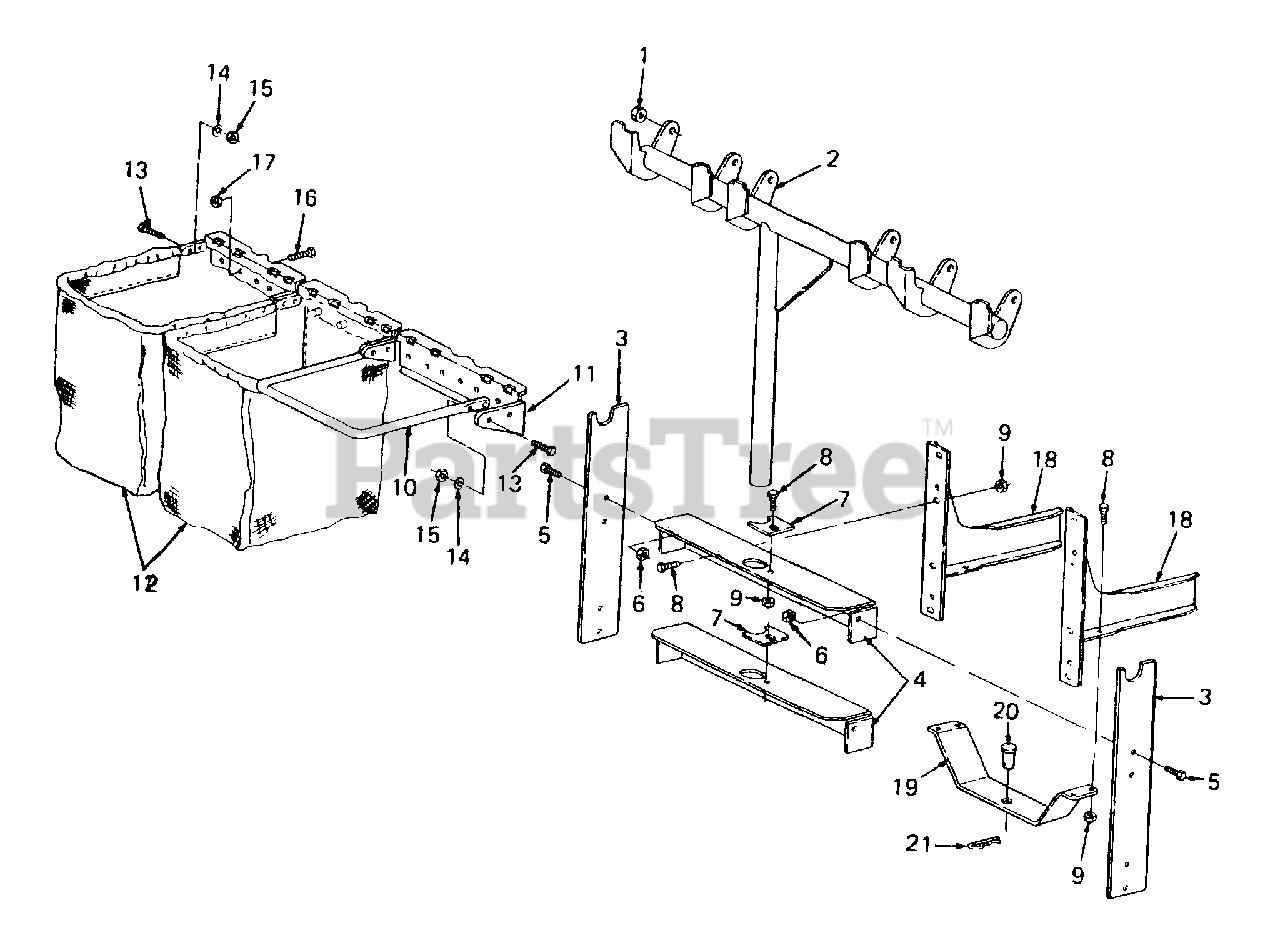

292 (190-292-100) - Cub Cadet Fan Assist. Bagger att Bag & Support Parts Diagram

Fan Assist. Bagger

Bag & Support Parts Diagram

  • Title

1

Cub Cadet 712-0431

Nut, Hex Flanged Lock, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

2

Cub Cadet 749-0750-0637

Tube Assy., Support
(Superseded to 689-00002-0637)

$

$

Not available

3

Cub Cadet 783-0601-0637

Bracket, Support

$32.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 17200A-0637

Bracket, Support Tube Mounting

$

$

Not available

5

Cub Cadet 710-0118

Screw, Hex Cap, 5/16-18 X .75 Lg.
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 712-3004A

L-Nut, Flange Top Hex, 5/16-18

$3.49

$

In Stock, Qty 20+

0

7

Cub Cadet 17247-0637

Bracket, Support Tubing Adapter

$16.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0751

Screw, Hex, 1/4-20 X .62 Lg.

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-3029

Nut, Hex Flange Top Locknut 1/4

$6.49

$

In Stock, Qty 8

0

10

Cub Cadet 749-0745A-0637

Frame, Catcher Bag

$56.99

$

In Stock, only 1 left!

0

11

Cub Cadet 17201A-0637

Bracket, Bag Frame Hanger

$66.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 964-0251

Bag, Grass Catcher

$83.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0412

Screw, Hex Cap, 1/4-28 X .75 Lg.

$5.49

$

In Stock, Qty 9

0

14

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

15

Cub Cadet 712-0138

Nut, Hex, 1/4-28

$6.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 710-0192

Screw, Truss Mach, #10-24 X .38 Lg.

$3.49

$

In Stock, Qty 11

0

17

Cub Cadet 712-0272

Nut, Hex Sems, #10-24

$3.99

$

In Stock, only 1 left!

0

18

Cub Cadet 703-2490-0637

Bracket, Frame Support

$81.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 703-2489-0637

Brace, Cross

$30.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 711-0309

Pin, Clevis, .62 Dia.
(Superseded to 711-0309A)

$11.99

$

In Stock, Qty 10

0

21

Cub Cadet 714-3020

Pin, Internal Cotter

$3.99

$

In Stock, Qty 9

0
