2920 H (1692505) - Massey Ferguson Garden Tractor, 20hp Front PTO Kohler Parts Diagram

Garden Tractor, 20hp

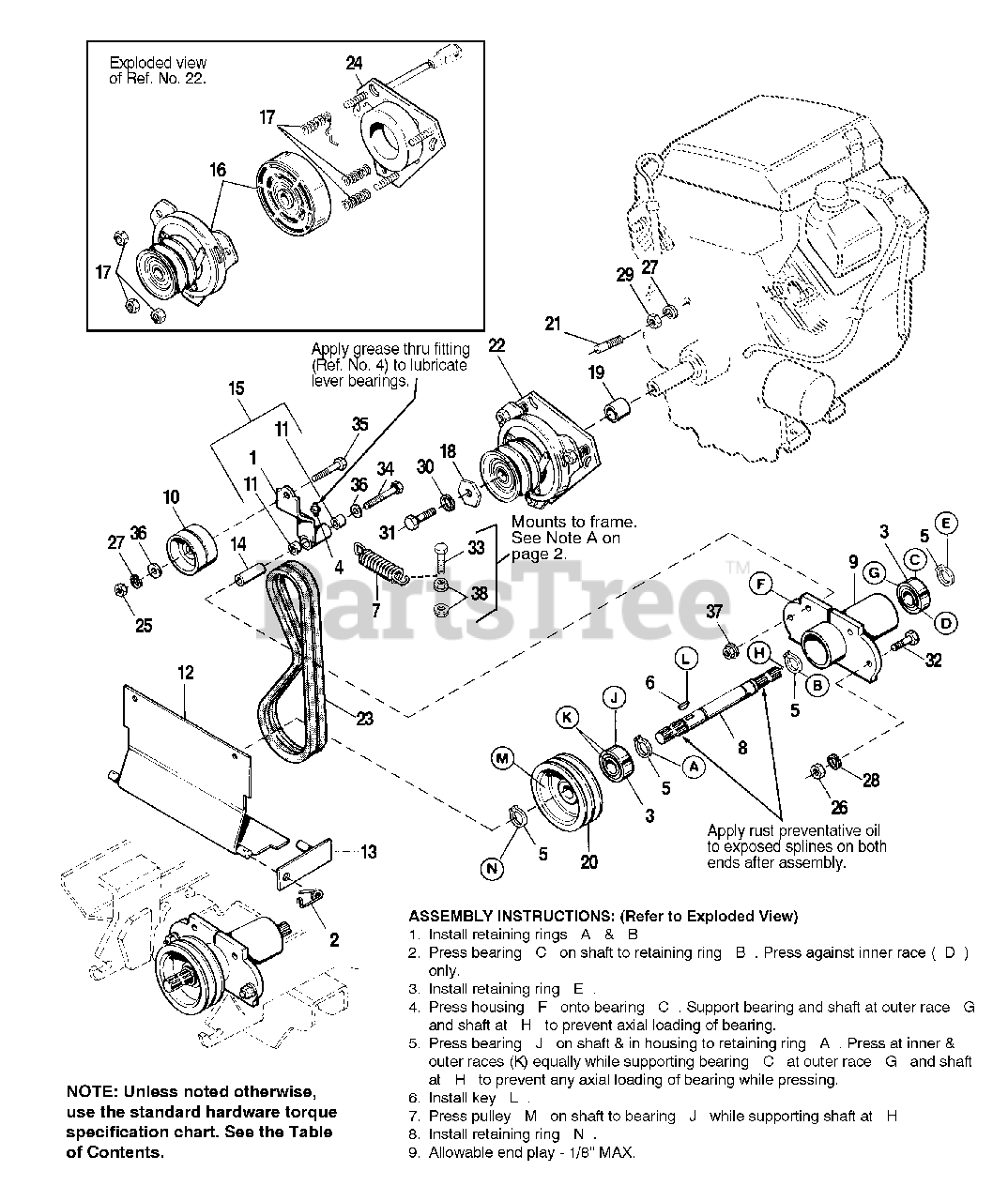

Front PTO Kohler Parts Diagram

  • Title

1

IDLER ARM ASSY. (See Ref. No. 15)

$

$

Not available

2

Simplicity 2176012SM

RETAINER, Pin Spring
(Superseded to 703852)

$4.49

$

In Stock, Qty 20+

0

3

Simplicity 2528126

BEARING, Ball, 1-3/16 x 2-7/16 x 5/8

$

$

Not available

4

Simplicity 2821133SM

FITTING, Grease
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

5

Simplicity 2827742SM

RING
(Superseded to 7010965YP)

$4.49

$

In Stock, Qty 10

0

6

Simplicity 2830671SM

KEY, Hi-Pro, 1/4 x 3/4

$8.49

$

In Stock, only 1 left!

0

7

Simplicity 1664661SM

SPRING, Tension (Later Models-refer to illustration)

$26.99

$

Usually ships in 2-12 days

0

8

Simplicity 1674103SM

SHAFT, Spline, PTO

$104.99

$

Usually ships in 2-12 days

0

9

Simplicity 1674105SM

HOUSING & PLATE ASSY.

$

$

Not available

10

Simplicity 1674736SM

PULLEY, Idler, 3-1/4 Dia.

$55.99

$

In Stock, only 4 left!

0

11

Simplicity 1675352SM

BUSHING, Idler Arm

$5.99

$

Usually ships in 2-12 days

0

12

Simplicity 1676546SM

GUARD ASSY.
(Superseded to 1676546ASM)

$69.99

$

Usually ships in 2-12 days

0

13

Simplicity 1676549ASM

LINK & PIN ASSY., Guard

$23.99

$

Usually ships in 2-12 days

0

14

Simplicity 1676833SM

SPACER

$27.99

$

Usually ships in 2-12 days

0

15

Simplicity 1676837SM

IDLER ARM ASSY. (Incl. Ref. Nos. 24 & 25)

Note: (Incl. Ref. Nos. 1 & 11)

$

$

Not available

16

Simplicity 1685490SM

ROTOR ASSEMBLY & ARMATURE ASSEMBLY KIT

Note: Repair Parts for Ref. No. 22, Electric Clutch, part no. 1708527.

$397.99

$

In Stock, only 1 left!

0

17

Simplicity 1707587SM

ACCESSORY KIT (Nut & Springs)

Note: (Qty. 3 each, nuts & springs). Repair Parts for Ref. No. 22, Electric Clutch, part no. 1708527.

$9.99

$

Usually ships in 2-12 days

0

18

Simplicity 1708264SM

WASHER, Hex

$8.99

$

In Stock, Qty 9

0

19

Simplicity 1708494SM

SPACER

$43.99

$

Usually ships in 2-12 days

0

20

Simplicity 1708523SM

PULLEY, PTO Drive

$83.99

$

Usually ships in 2-12 days

0

21

Simplicity 1708526SM

STUD, Clutch, Torque

$7.49

$

Usually ships in 2-12 days

0

22

Simplicity 1714637SM

ROTOR ASSY. & ARMATURE ASSY. KIT

Note: (Incl. Ref. Nos. 16, 17 & 24)

$683.99

$

Usually ships in 2-12 days

0

23

Simplicity 1708529SM

BELT SET, PTO Drive (Matched Set of 2)

$54.99

$

In Stock, only 1 left!

0

24

Simplicity 1686737SM

CLUTCH, Electric (Incl. Ref. Nos. 36, 37 & 38 )

Note: Repair Parts for Ref. No. 22, Electric Clutch, part no. 1708527.

$744.99

$

Usually ships in 2-12 days

0

25

Simplicity 1916950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703577)

$4.49

$

In Stock, Qty 15

0

26

Simplicity 1916951SM

NUT, Hex 1/2-13 (1691847) NUT, Hex 1/2-13 (1691848, 1691849) NUT, Hex 1/2-13 (1691850)
(Superseded to 703340)

$7.99

$

Usually ships in 2-12 days

0

27

Simplicity 1916965SM

LOCKWASHER, Spring, 5/16
(Superseded to 703454)

$3.49

$

In Stock, Qty 12

0

28

Simplicity 1916966SM

LOCKWASHER, Spring 1/2 (1691847) LOCKWASHER, Spring 1/2 (1691848, 1691849) LOCKWASHER, Spring 1/2 (1691850)
(Superseded to 703341)

$4.49

$

Usually ships in 2-12 days

0

29

Simplicity 1917421SM

NUT, Hex Jam, 3/8-16 NC-2B
(Superseded to 703996)

$4.99

$

In Stock, only 4 left!

0

30

Simplicity 1918199SM

LOCKWASHER, Spring, 7/16
(Superseded to 704007)

$4.49

$

In Stock, Qty 10

0

31

Simplicity 1920594SM

SCREW, Hex Hd., 7/16-20 x 2.0, Gr. 5

$3.99

$

Usually ships in 2-12 days

0

32

Simplicity 1921176SM

CAPSCREW, Hex, 1/2-13 x 1-1/4 (46" &66" Mowers only)

$4.99

$

Usually ships in 2-12 days

0

33

Simplicity 1921971SM

BOLT, 3/8-16 X 1-3/4, GR 5, CZ
(Superseded to 704289)

$4.99

$

In Stock, Qty 16

0

34

Simplicity 1921972SM

CAPSCREW, Hex Head, 3/8-16 x 2-1/2, Black
(Superseded to 703873)

$4.49

$

In Stock, Qty 6

0

35

Simplicity 1923701SM

CAPSCREW, Hex Head, 3/8-16 x 2, GR5
(Superseded to 703589)

$4.49

$

In Stock, Qty 13

0

36

Simplicity 1924940SM

WASHER, 3/8, .41 ID x .87 OD x .08 THK
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

37

Simplicity 1930645SM

NUT, Hex Flange, Two Way Lock, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

38

Simplicity 1931211SM

NUT, Hex Flange Whiz Lock Small, 3/8-16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0
