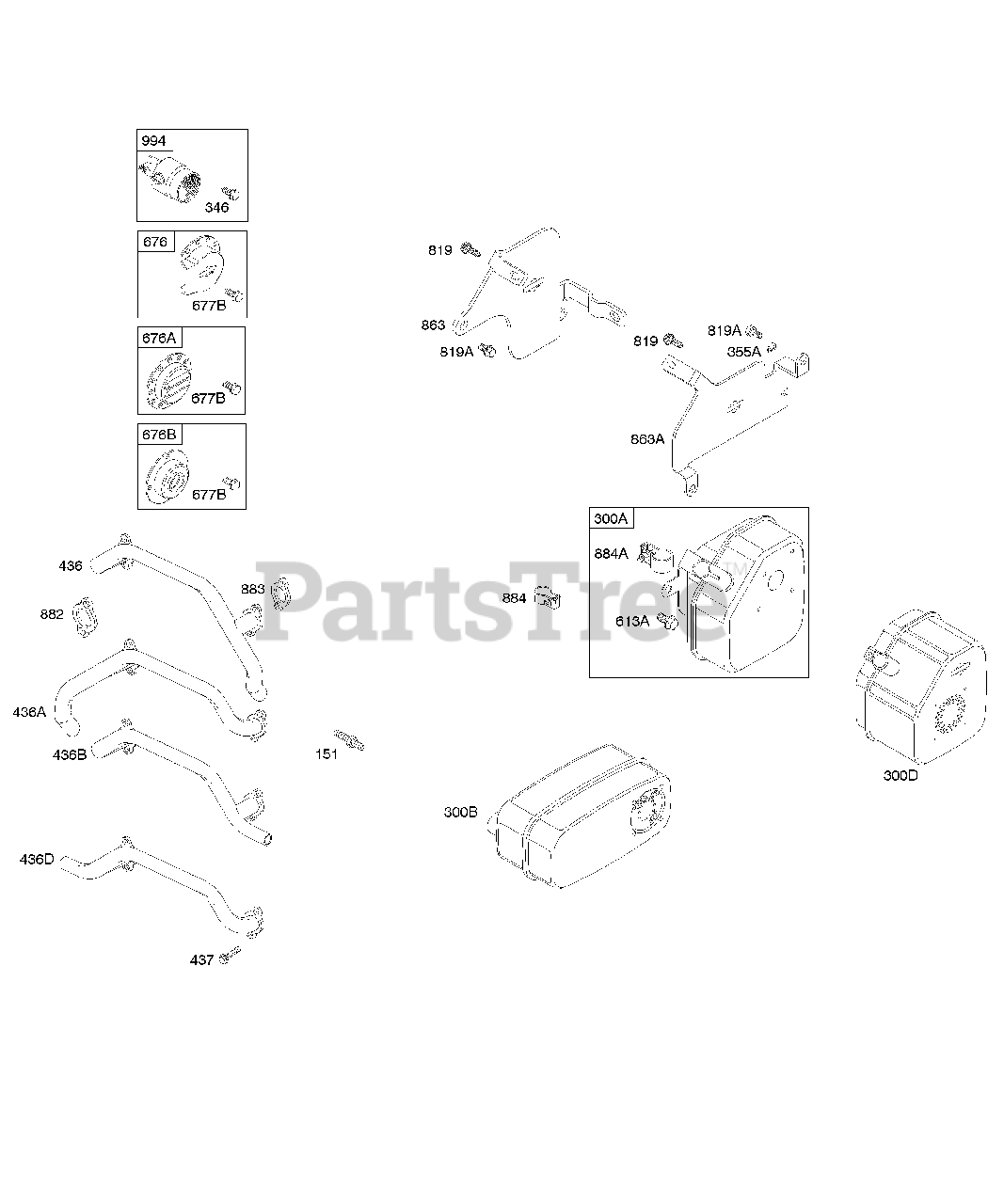

294447-1271-E1 - Briggs & Stratton Horizontal Engine Exhaust System Parts Diagram

Horizontal Engine

Exhaust System Parts Diagram

  • Title

300B

Briggs & Stratton 498984S

Muffler

$86.99

$

Usually ships in 2-12 days

0

346

Briggs & Stratton 690661

SCREW

Note: (Spark Arrestor)

$3.49

$

In Stock, Qty 6

0

355A

Briggs & Stratton 690944

Washer

Note: (Muffler Bracket)

$5.99

$

Usually ships in 2-12 days

0

436D

Briggs & Stratton 691502

Manifold-Exhaust

$140.99

$

Usually ships in 2-12 days

0

437

Briggs & Stratton 691902

Screw

Note: (Exhaust Manifold)

$3.99

$

In Stock, Qty 15

0

613A

Briggs & Stratton 692067

SCREW

Note: (Muffler)

$4.49

$

In Stock, only 3 left!

0

676

Briggs & Stratton 795036

DEFLECTOR, Muffler

Note: (Side Out)

$8.49

$

Usually ships in 2-12 days

0

676A

Briggs & Stratton 795038

Deflector-Muffler

Note: (Louvered)

$15.99

$

Usually ships in 2-12 days

0

676B

Briggs & Stratton 396903

DEFLECTOR, Muffler

Note: (Direct Out)

$15.99

$

Usually ships in 2-12 days

0

677B

Briggs & Stratton 690661

SCREW

Note: (Muffler Deflector)

$3.49

$

In Stock, Qty 6

0

819

Briggs & Stratton 692056

Screw

Note: (Muffler Bracket) (M8x14mm)

$5.99

$

In Stock, only 4 left!

0

819

Briggs & Stratton 692067

SCREW

Note: (Muffler Bracket) (M6x12mm)

$4.49

$

In Stock, only 3 left!

0

819A

Briggs & Stratton 690943

Screw

Note: (Muffler Bracket) (M8x16mm Long)

$3.99

$

Usually ships in 2-12 days

0

863

Briggs & Stratton 691513

Bracket-Muffler

Note: (Cylinder 2) (Side Outlet)

$58.99

$

Usually ships in 2-12 days

0

863A

Briggs & Stratton 690756

Bracket-Muffler

Note: (Cylinder 1) (Side Outlet)

$58.99

$

In Stock, only 1 left!

0

882

Briggs & Stratton 692074

Flange-Exhaust

$18.99

$

In Stock, only 2 left!

0

883

Briggs & Stratton 691613

Gasket-Exhaust

$5.49

$

In Stock, Qty 10

0

884

Briggs & Stratton 690898

Clamp-Muffler

$15.99

$

In Stock, only 2 left!

0

884A

Briggs & Stratton 691956

Clamp-Muffler

$15.99

$

In Stock, only 2 left!

0

994

Briggs & Stratton 794945

ARRESTOR, Spark

$54.99

$

Usually ships in 2-12 days

0
