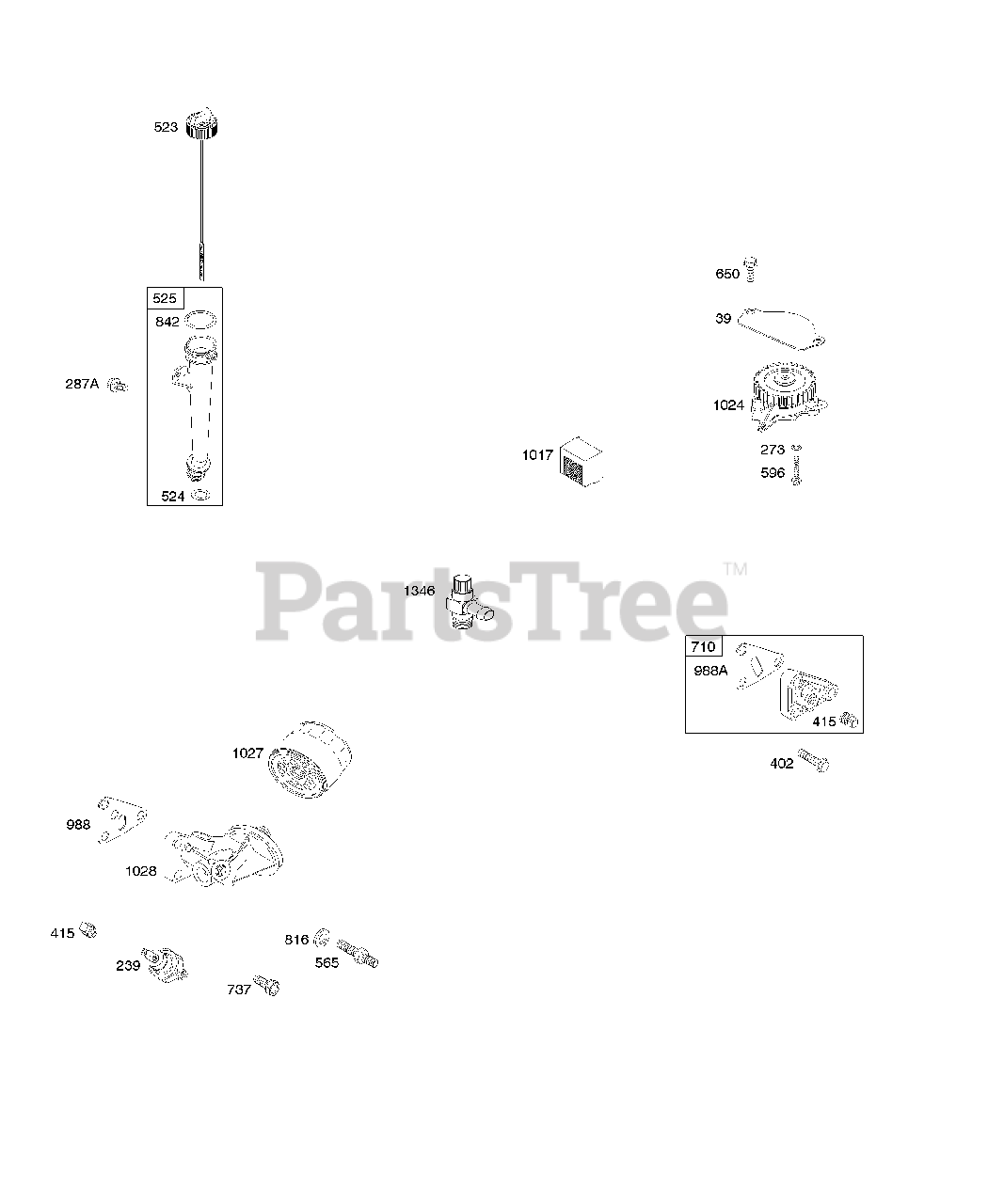

294772-0102-01 - Briggs & Stratton Vertical Engine Lubrication Parts Diagram

Vertical Engine

Lubrication Parts Diagram

  • Title
39

$6.49

$

Usually ships in 2-12 days

0

239

Briggs & Stratton 690233

Switch-Oil Pressure

Note: (Oil GARD)

$28.99

$

In Stock, only 2 left!

0

273

Briggs & Stratton 690681

Seal-O Ring

Note: (Oil Pump)

$5.99

$

In Stock, only 4 left!

0

287A

Briggs & Stratton 807084

SCREW

Note: (Dipstick Tube)

$3.49

$

In Stock, Qty 12

0

402

Briggs & Stratton 690679

Screw

Note: (Oil Filter Cover)

$3.49

$

Usually ships in 2-12 days

0

415

Briggs & Stratton 690283

Plug
(Superseded to 794903)

Note: (Oil Filter Adapter)

$5.49

$

In Stock, only 1 left!

0

$23.99

$

In Stock, only 1 left!

0

524

Briggs & Stratton 692053

Seal-Dipstick Tube

$6.99

$

In Stock, only 1 left!

0

525

Briggs & Stratton 692093

Tube-Dipstick

$20.99

$

In Stock, only 1 left!

0

565

Briggs & Stratton 690682

Stud

Note: (Oil Filter Adapter)

$4.49

$

Usually ships in 2-12 days

0

596

Briggs & Stratton 691492

SCREW

Note: (Oil Pump)

$3.99

$

In Stock, only 2 left!

0

650

Briggs & Stratton 691982

Screw

Note: (Oil Deflector)

$3.99

$

In Stock, only 4 left!

0

710

Briggs & Stratton 807689

Cover-Oil Filter

$21.99

$

Usually ships in 2-12 days

0

737

Briggs & Stratton 690679

Screw

Note: (Oil Filter Adapter)

$3.49

$

Usually ships in 2-12 days

0

816

Briggs & Stratton 690706

Washer

Note: (Oil Filter Adapter)

$3.99

$

In Stock, only 2 left!

0

842

Briggs & Stratton 691870

Seal-O Ring

Note: (Dipstick Tube)

$4.49

$

In Stock, only 1 left!

0

988

Briggs & Stratton 692063

Gasket-Oil Adapter

$4.49

$

In Stock, Qty 11

0

988A

Briggs & Stratton 690687

Gasket-Oil Adapter

$4.49

$

In Stock, only 1 left!

0

1017

Briggs & Stratton 690878

Screen-Oil Pump

$16.99

$

Usually ships in 2-12 days

0

1024

$73.99

$

Usually ships in 2-12 days

0

1027

$14.99

$

In Stock, Qty 20+

0

1028

Briggs & Stratton 808235

Adapter-Oil Filter

$78.99

$

Usually ships in 2-12 days

0

1346

Briggs & Stratton 492031

Valve-Oil Drain Shut Off

$38.99

$

Usually ships in 2-12 days

0
