295 (190-295-100) - Cub Cadet 54" Mower Deck att 54 inch Deck Assembly Parts Diagram

54" Mower Deck

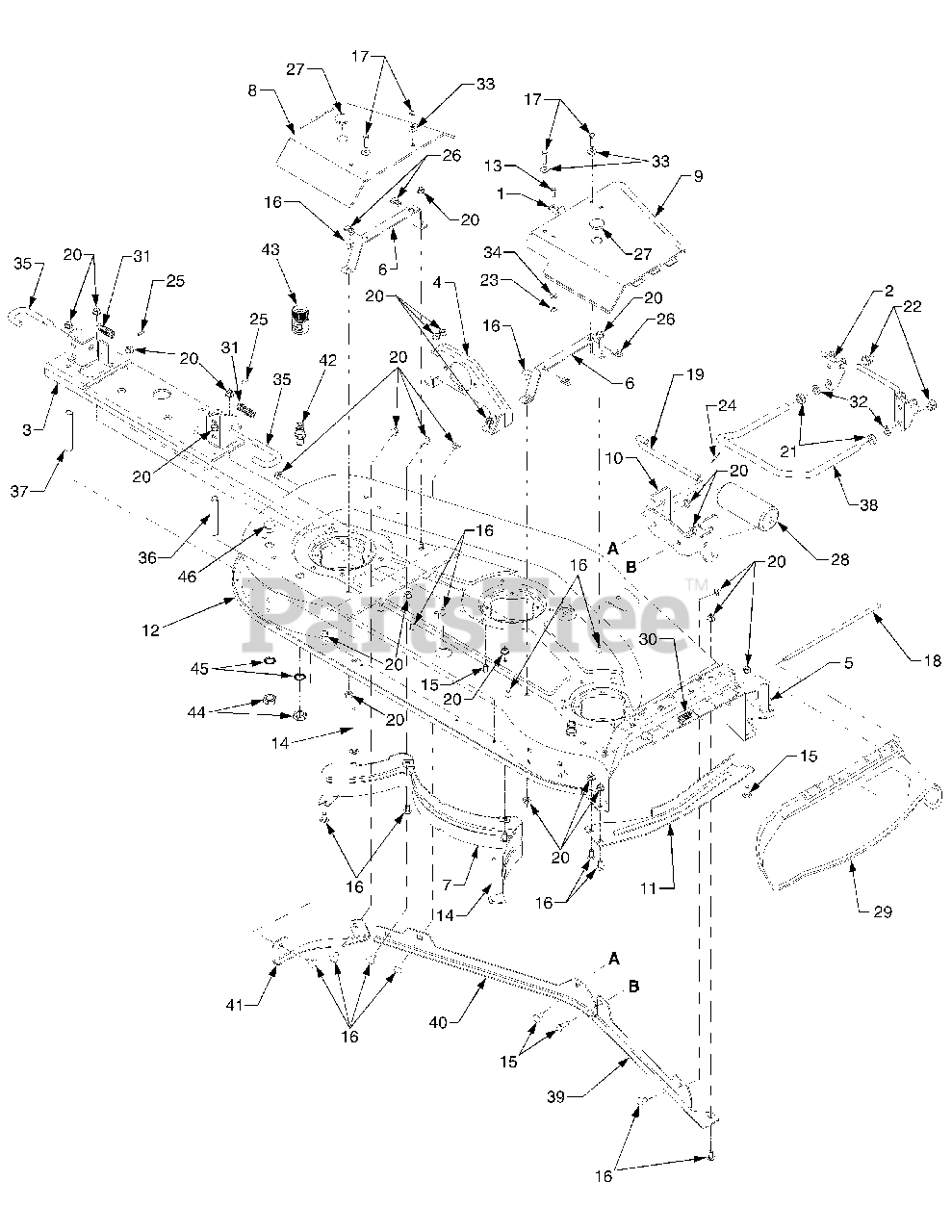

54 inch Deck Assembly Parts Diagram

  • Title

1

Cub Cadet 16606

Bracket, Hook Retainer
(Superseded to 96606)

$7.99

$

In Stock, only 2 left!

0

2

Cub Cadet 603-0452A-0716

Bracket, Front Lift
(Superseded to 603-0452A-4021)

$

$

Not available

3

Cub Cadet 603-0460-0716

Bracket, Gearbox

$163.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 603-0607-0716

Bracket, Drive

$119.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 683-0617-0716

Bracket, Chute Stop
(Superseded to 683-0617A-0637)

$68.99

$

In Stock, only 2 left!

0

6

Cub Cadet 703-2072

Strap, Mounting

Variations

703-2072-0498

Cub Cadet 703-2072-0498

STRAP-MOUNTING - OLD CUB YELLOW (0498)

$26.99

$

Usually ships in 3-6 days

0

703-2072-4021

Cub Cadet 703-2072-4021

STRAP-MOUNTING - CUB YELLOW 2 (4021)

$26.99

$

Usually ships in 3-6 days

0

703-2072-0637

Cub Cadet 703-2072-0637

STRAP-MOUNTING - POWDER BLACK (0637)

$

$

Not available

703-2072-0716

Cub Cadet 703-2072-0716

STRAP-MOUNTING - CUB YELLOW-99 (0716)

$

$

Not available

$24.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-2093-0716

Baffle, Rear Inner
(Superseded to 703-2093C-0637)

$102.99

$

In Stock, Qty 13

0

8

Cub Cadet 703-2096B-0716

Cover, Belt (L.H.)
(Superseded to 703-2096C-0716)

$

$

Not available

9

Cub Cadet 703-2097B-0716

Cover, Belt (R.H.)
(Superseded to 703-2097B-4021)

$

$

Not available

10

Cub Cadet 703-3043A-0716

Bracket, Roller Front
(Superseded to 703-3043A-4021)

$73.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 703-3511-0716

Guard, Finger

$

$

Currently unavailable

12

Cub Cadet 703-4133-0716

Deck Assembly (w/o Deck wash holes)
(Superseded to 903-06576A-4021)

$

$

Not available

12

Cub Cadet 703-4133B-0716

Housing, Deck (w/ Deck wash holes)
(Superseded to 903-06576A-4021)

$

$

Not available

12

Cub Cadet 777D07875

Label, 54"

$

$

Not available

12

Cub Cadet 777S30503

Label, Danger

$12.99

$

In Stock, only 2 left!

0

12

Cub Cadet 777S30015

Label, Danger L.H. Side

$9.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-0751

Screw, Hex Cap 1/4-20 x .62 GR5

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 710-1644

Carriage, Bolt 3/8-16 x 5.0 GR5

$9.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 710-3168

Carriage, Bolt 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 710-3178

Carriage, Bolt 3/8-16 x .75

$4.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 710-0376

Screw, HHC, 5/16-18 x 1.0 GR5 Replaces 710-3232 Thmb Scrw

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 711-1762

Pin, Hinged .375 x 14.06

$19.99

$

In Stock, only 4 left!

0

19

Cub Cadet 711-3314

Pin, Roller 1/2 x 7.31
(Superseded to 711-3314A)

$27.99

$

In Stock, Qty 20+

0

20

Cub Cadet 712-0431

Nut, Flange Lock 3/8-16
(Superseded to 912-0431)

$5.49

$

In Stock, Qty 20+

0

21

Cub Cadet 712-3015

Nut, Hex Jam 5/8-11

$4.99

$

In Stock, Qty 19

0

22

Cub Cadet 712-3016

Nut, Hex Lock 5/8-11

$7.49

$

In Stock, Qty 14

0

23

Cub Cadet 712-3027

Nut, Hex Flange Lock 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 714-3004

Pin, Cotter 3/32 x 1.25

$5.49

$

In Stock, only 4 left!

0

25

Cub Cadet 715-3003

Pin, Spirol

$7.49

$

In Stock, Qty 5

0

26

Cub Cadet 726-0211

Nut, “U" 5/16-18

$4.99

$

In Stock, only 2 left!

0

27

Cub Cadet 726-3045

Plug, Button
(Superseded to 726-3045A)

$4.99

$

In Stock, Qty 15

0

28

Cub Cadet 731-3005

Roller, Front

$30.99

$

In Stock, Qty 20+

0

29

Cub Cadet 731-3131A

Deflector, Chute
(Superseded to 931-3131A)

$114.99

$

In Stock, only 3 left!

0

29

Cub Cadet 777S30145

Label, Danger
(Superseded to 977S30145)

$10.99

$

In Stock, only 1 left!

0

30

Cub Cadet 732-3070

Spring, Torsion
(Superseded to 732-3070A)

$12.99

$

In Stock, only 2 left!

0

31

Cub Cadet 732-3127

Spring, Compression
(Superseded to 932-3127)

$4.99

$

In Stock, Qty 14

0

32

Cub Cadet 736-0158

Washer, Lock 5/8" I.D.

$4.99

$

In Stock, Qty 5

0

33

Cub Cadet 736-0242

Washer, Bell .34" I.D.

$4.99

$

In Stock, Qty 20+

0

34

Cub Cadet 736-0270

Washer, Bell .265 x .75 x .062

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 747-3188

Pin, Mower Support

$36.99

$

In Stock, Qty 6

0

36

Cub Cadet 750-3213

Spacer, .405" I.D. x 3.875" Lg.

$16.99

$

In Stock, only 2 left!

0

37

Cub Cadet 750-3214

Spacer, .405" I.D. x 4.075" Lg.

$

$

Not available

38

Cub Cadet 747-3386

Rod, Front Lift

$114.99

$

In Stock, only 3 left!

0

39

Cub Cadet 783-1482

Skirt, RH Deck
(Superseded to 783-1482-0637)

Variations

783-1482-0637

Cub Cadet 783-1482-0637

SKIRT-54" DECK RH - POWDER BLACK (0637)

$

$

Not available

$

$

40

Cub Cadet 783-1483

Skirt, LH Deck
(Superseded to 783-1483-0637)

Variations

783-1483-0637

Cub Cadet 783-1483-0637

SKIRT-54" DECK LH - POWDER BLACK (0637)

$41.99

$

Usually ships in 3-6 days

0

$41.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 783-1484

Skirt, LH Extension
(Superseded to 783-1484-0637)

Variations

783-1484-0637

Cub Cadet 783-1484-0637

SKIRT-LH EXTENSION - POWDER BLACK (0637)

$62.99

$

Usually ships in 3-6 days

0

$62.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 737-04003C

Nozzle, Deck Wash - Mfg. Code 1J014G and after
(Superseded to 737-04003D)

$24.99

$

In Stock, Qty 7

0

43

Cub Cadet 721-04041

Adapter, Nozzle - Mfg. Code 1J014G and after
(Superseded to 921-04041)

$24.99

$

In Stock, Qty 20+

0

44

Cub Cadet 712-0641

Nut, Hex, M16-1.5 - Mfg. Code 1J014G and after

$6.49

$

In Stock, Qty 9

0

45

Cub Cadet 736-0760

Washer, Lock - Mfg. Code 1J014G and after

$4.49

$

In Stock, Qty 7

0

46

Cub Cadet 738-04146

Plug, Screw, M16-1.5 - Mfg. Code 1J014G and after

$9.99

$

Usually ships in 3-6 days

0
