295 (190-295-100) - Cub Cadet 54" Mower Deck att 54 inch Deck Drive Parts Diagram

54" Mower Deck

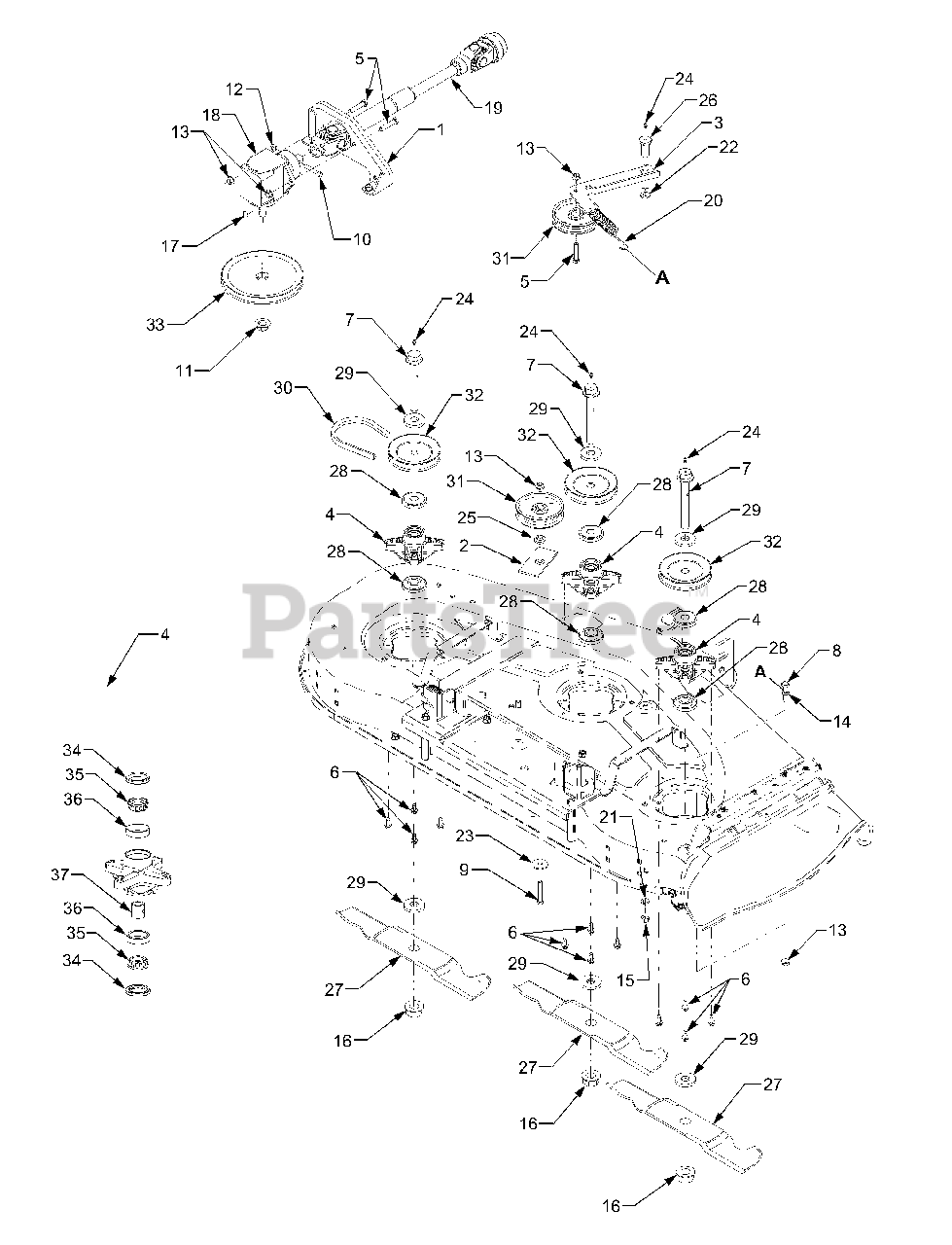

54 inch Deck Drive Parts Diagram

  • Title

1

Cub Cadet 603-0607-0716

Bracket, Drive

$110.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 603-0646-0716

Assembly, Spacer

$61.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 603-0694-0716

Bracket, Idler

$84.99

$

In Stock, only 1 left!

0

4

Cub Cadet 618-3129B

Assembly, Spindle - Replaces all older spindles.
(Superseded to 918-3129C)

Note: includes seals, bearings, cups, spacer

$112.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0347

Screw, Hex Cap 3/8-16 x 1.75 GR5

$4.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0602

Screw, Hex Wash Hd Tapp 5/16-18 x 1.0

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-1852

Bolt, Spindle, 3/4-16 x 5.37 Mfg. Code 1I224G & before

$26.99

$

In Stock, Qty 7

0

7

Cub Cadet 710-1693

Bolt, Spindle, 3/4-16 x 5.215 Mfg. Code 1I234G & after

$35.99

$

In Stock, only 2 left!

0

8

Cub Cadet 710-3005

Screw,Hex Cap 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-3066

Screw, Hex Cap 3/8-16 x 2.75 GR5

$5.49

$

In Stock, Qty 9

0

10

Cub Cadet 710-3251

Screw, Sock. Hd. 5/16-18 x 1.75

$5.99

$

In Stock, Qty 13

0

11

Cub Cadet 712-0417A

Nut , Hex Flanged 5/8-18

$6.99

$

In Stock, Qty 20+

0

12

Cub Cadet 712-0429

Nut, Hex Lock 5/16 -18

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-0431

Nut, Flange Lock 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-3000

Nut, Hex Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-3019

Nut, Hex 7/16-14

$6.49

$

In Stock, only 4 left!

0

16

Cub Cadet 712-3078

Nut, Hex Flange, 3/4-16

$9.49

$

In Stock, Qty 20+

0

17

Cub Cadet 714-0126

Key, Hi-Pro

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 717-3447

Drive, Right Angle
(Superseded to 917-3447)

$933.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 717-3453

Shaft, Drive

$1114.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 717-3488

Half Shaft, Front Only

$628.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 717-3489

Half Shaft, Rear Only

$

$

Not available

20

Cub Cadet 732-0971

Spring, Extension 6.5" Lg.

$21.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 736-0171

Washer, Lock 7/16" I.D.

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 736-3015

Washer, Flat .47" I.D. x .88" OD
(Superseded to 936-3015)

$3.99

$

In Stock, Qty 5

0

23

Cub Cadet 736-3039

Washer, Flat .406" I.D.

$4.99

$

In Stock, Qty 18

0

24

Cub Cadet 737-3000

Fitting, Grease
(Superseded to 937-3000)

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 738-0372B

Spacer, Shoulder

$8.99

$

In Stock, Qty 20+

0

26

Cub Cadet 738-3005A

Bolt, Shoulder .68" Dia. x 1.59
(Superseded to 638-04012A)

$20.99

$

In Stock, Qty 20+

0

27

Cub Cadet 759-3820

Blade, High Lift 18.5" Lg.
(Superseded to 742P3013A)

$35.99

$

In Stock, Qty 20+

0

27

Cub Cadet 759-3841

Blade, Hard Coated
(Superseded to 759-3597-0637)

$

$

Not available

28

Cub Cadet 748-3065A

Spacer, Deck Spindle

$12.99

$

In Stock, Qty 20+

0

29

Cub Cadet 748-3101

Spacer, Blade
(Superseded to 748-3101A)

$21.99

$

In Stock, Qty 7

0

30

Cub Cadet 954-0197

Belt, “V" 117" Lg.

$83.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 756-3005

Pulley, Flat

$42.99

$

In Stock, Qty 20+

0

32

Cub Cadet 756-3096

Pulley, “V"

$38.99

$

In Stock, Qty 12

0

33

Cub Cadet 756-3097

Pulley, Drive

$65.99

$

In Stock, only 1 left!

0

34

Cub Cadet 721-3018A

Seal, Oil
(Superseded to 921-3018A)

$7.99

$

In Stock, Qty 20+

0

35

Cub Cadet 741-3028

Bearing, Cone - Mfg. Code 1I173G and before
(Superseded to 941-04298)

$15.99

$

In Stock, Qty 20+

0

35

Cub Cadet 741-04089

Bearing, Cone - Mfg Code 1I183G and after
(Superseded to 941-04298)

$15.99

$

In Stock, Qty 20+

0

36

Cub Cadet 741-3029

Cup, Bearing - Mfg. Code 1I173G and before
(Superseded to 941-04299)

$6.49

$

In Stock, Qty 20+

0

36

Cub Cadet 741-04091

Cup, Bearing - Mfg. Code 1I183G and after
(Superseded to 941-04299)

$6.49

$

In Stock, Qty 20+

0

37

Cub Cadet 750-3190A

Spacer, Bearing - Mfg. Code 1I173G and before

$12.99

$

In Stock, Qty 6

0

37

Cub Cadet 750-04409

Spacer, Bearing - Mfg. Code 1I183G and after

$19.99

$

In Stock, only 4 left!

0
