295-206-000 - MTD Tow Bar Kit (1985) 206 Parts Diagram

Tow Bar Kit

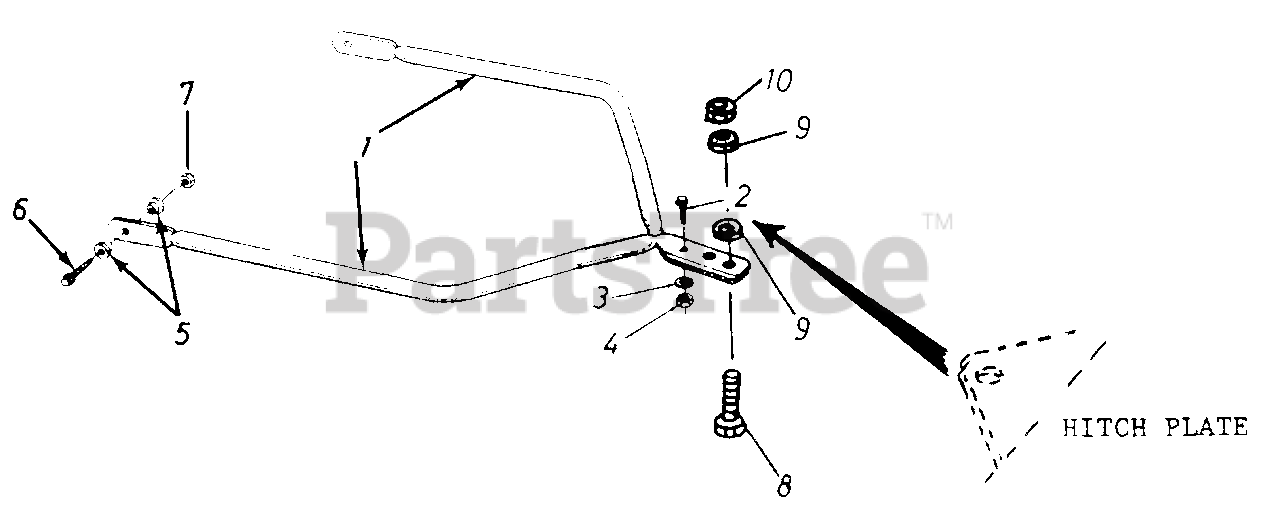

206 Parts Diagram

  • Title
1

MTD Part# 749-0501

Tow Bar Half

Variations

MTD Part# 749-0501-0637

No Longer Available TOW BAR-HA - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

2

MTD Part# 710-0255

Truss Mach. Scr. 1/4-20 x .75" Lg.*
(Superseded to 710-0924)
Usually ships in 1 day

$

$3.19

0

3

MTD Part# 736-0329

L.-Wash. 1/4" I.D.*
(Superseded to 936-0329)
Usually ships in 1 day

$

$3.11

0

4

MTD Part# 712-0287

Hex Nut 1/4-2 Thd.*
(Superseded to 912-0287)
Usually ships in 1 day

$

$3.18

0

5

MTD Part# 748-0234

Shoulder Spacer
Usually ships in 1 day

$

$3.10

0

6

MTD Part# 710-0602

Hex Wash. Hd. Self-Tapp Scr. 5/16-18 x 1.0" Lg.*
Usually ships in 1 day

$

$3.21

0

7

MTD Part# 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)
Usually ships in 5 to 10 days

$

$3.11

0

8

MTD Part# 738-0143

Shld. Bolt .496 Dia. I
Usually ships in 1 day

$

$3.12

0

9

MTD Part# 736-0219

Belle-Wash. .39 I.D. x 1.12 O.D.
(Superseded to 936-0219)
Usually ships in 1 day

$

$3.06

0

10

MTD Part# 712-0181

Hex Jam L-Nut 3/8-16 Thd.
(Superseded to 912-0181)
Usually ships same day

Not available

$

$
