295 - Poulan Chainsaw, Type 3 (2008-07) Engine - Type 3 Parts Diagram

Chainsaw, Type 3

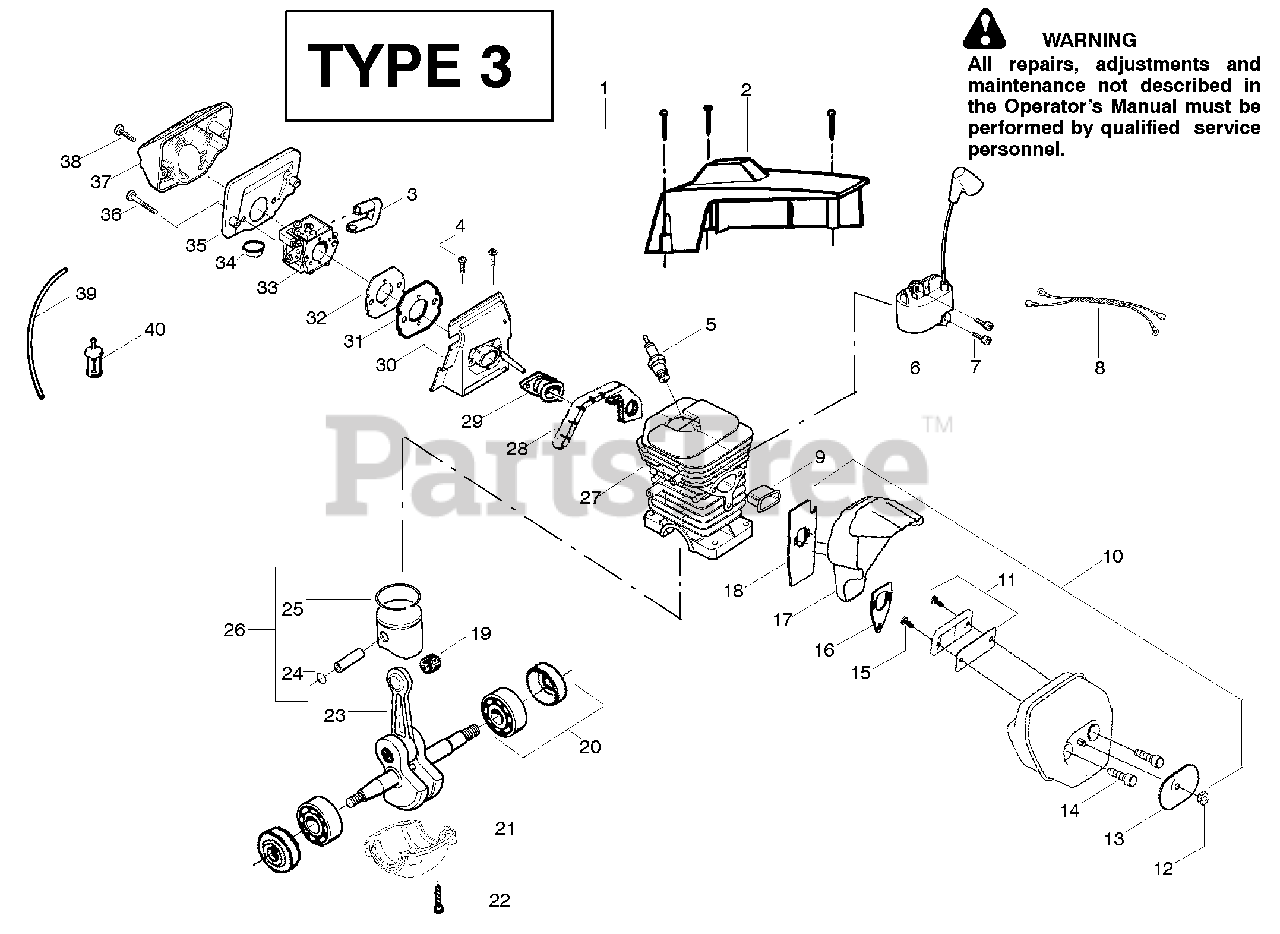

Engine - Type 3 Parts Diagram

  • Title

1

Electrolux/AYP 530016154

Screw

$3.99

$

In Stock, Qty 20+

0

2

Electrolux/AYP 530069700

Kit-Cylinder Shield

$

$

Not available

3

Electrolux/AYP 530037464

Grommet -Carb.

$3.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 530015814

Screw

$6.49

$

In Stock, Qty 20+

0

5

Electrolux/AYP 952030150

Spark Plug (RCJ-7Y)

$3.49

$

In Stock, Qty 20+

0

6

Electrolux/AYP 530039143

Module-Ignition
(Superseded to 575803501)

$18.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 530015895

Screw

$3.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 530037467

Assy-Switch Wire

$

$

Not available

9

Electrolux/AYP 530037652

Insulator-Heat

$

$

Not available

10

Electrolux/AYP 530071495

Kit-Muffler

Note: (Incl.11 - 18)

$24.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 530071497

Kit-Spark Arrestor

Note: (Incl.# 15)

$10.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 530016359

Nut-Brass
(Superseded to 574266401)

$4.99

$

In Stock, Qty 7

0

13

Electrolux/AYP 530056061

Cover-Bolt

$4.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 530016338

Bolt-Muffler

$3.99

$

In Stock, only 3 left!

0

15

Electrolux/AYP 530016351

Screw-Spark Screen

$3.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 530055128

Gasket-Muffler

$4.99

$

In Stock, only 2 left!

0

17

Electrolux/AYP 530055765

Assy-Muffler Backplate

$

$

Not available

18

Electrolux/AYP 530055402

Backplate - Alum.

$7.49

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 530032117

Bearing-Piston Pin

$

$

Not available

20

Electrolux/AYP 530056363

Assy-Bearing & Seal

$18.99

$

In Stock, Qty 7

0

21

Electrolux/AYP 530049794

Cap-Crankcase

$6.49

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 530015897

Screw

$6.49

$

In Stock, Qty 19

0

23

Electrolux/AYP 530029794

Assy-C’shaft & Rod
(Superseded to 503920801)

$

$

Not available

24

Electrolux/AYP 530015697

Retainer-Piston Pin

$6.49

$

In Stock, Qty 6

0

25

Electrolux/AYP 530037380

Ring-Piston

$7.49

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 530069548

Kit-Piston

Note: (Incl. 24, 25 )

$

$

Not available

27

Electrolux/AYP 530071490

Assy-Cyl/Crankcase

Note: (Incl.#21)

$

$

Not available

28

Electrolux/AYP 530019251

Seal-Super Clean

$4.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 530035581

Intake Boot

$

$

Not available

30

Electrolux/AYP 530071654

Kit-Carb.-Adapter

$

$

Not available

31

Electrolux/AYP 530057295

Intake Plate-Carb

$

$

Not available

32

Electrolux/AYP 530019172

Gasket-Carb.

$6.49

$

In Stock, Qty 20+

0

33

Electrolux/AYP 530071492

Kit-Carburetor (WT-610)
(Superseded to 545013503)

$50.99

$

In Stock, Qty 12

0

34

Electrolux/AYP 530036792

Isolator

$7.49

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 530037478

Filter-Air (Bottom)
(Superseded to 530059738)

$

$

Not available

36

Electrolux/AYP 530015970

Screw

$6.49

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 530036141

Filter-Air (Top)
(Superseded to 545057701)

$4.99

$

In Stock, Qty 15

0

38

Electrolux/AYP 530015899

Screw

$6.49

$

In Stock, Qty 15

0

39

Electrolux/AYP 530069247

Kit-Fuel Line (Small)

$6.49

$

In Stock, Qty 20+

0

40

Electrolux/AYP 530095646

Assy-Fuel Pick-up

$4.99

$

In Stock, Qty 20+

0

40

Electrolux/AYP 530163926

Manual (w/Standard Bar)

Note: Not Shown

$

$

Not available

40

Electrolux/AYP 530086458

Manual (w/Quick Adjust Bar)

Note: Not Shown

$6.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 530031135

Wrench-Bar
(Superseded to 530031163)

Note: Not Shown

$9.99

$

In Stock, Qty 17

0

40

Electrolux/AYP 530038653

Decal On/Stop

Note: Not Shown

$3.99

$

In Stock, only 1 left!

0

40

Electrolux/AYP 530047839

Decal-Warning/Start Inst.

Note: Not Shown

$3.99

$

Usually ships in 3-10 days

0
